A radiator cap is a vehicle component responsible for keeping engine coolant and maintaining pressure in the cooling system. A pressure of 13 to 16 PSI is ideal for automotive cooling systems. The radiator cap’s role is to keep the pressure at a steady level. Leaking coolant, the occurrence of white streaks, and hose bursts caused by coolant pressure variations are all bad radiator cap symptoms.
Fortunately, there are ways to detect a damaged radiator cap before something like this occurs. The time and money you’ll save by understanding how to check your car for a faulty radiator cap far outweighs the risk of being stuck or even worse. This article will show you how to learn more about this issue and how to avoid it before anything bad happens to you. If you’re curious about this topic, read on!
What Exactly Is A Radiator Cap?
Even though it’s called a radiator cap or lid, this component has a more important role than its name suggests. This radiator cap not only serves as a lid to the enclosed reservoir for coolant but also serves as a two-way valve. It ensures that the radiator is kept at the proper pressure to function properly.
The team at Motor Verso are willing to help you with your issue for free. Visit our new forum here and tell us about your issues, and we will do our best to help you.
This pressure is crucial because it raises the coolant’s boiling point inside the radiator. The normal boiling temperature is 212 degrees Fahrenheit. But when the pressure inside the radiator is added, this figure jumps tremendously, allowing the liquid to move freely around the radiator without vaporizing.
The majority of radiators have a pressure of around 15 PSI. However, depending on the type and model of the car, you may discover others with pressures ranging from 12.5 PSI to nearly 22 PSI. The cap’s job is to keep this pressure inside the radiator constant. This will allow the radiator to function properly, preventing the coolant from boiling and leaking.
As a result, if the radiator cap fails, you will surely experience bad radiator cap symptoms. However, you’ll start to notice certain bad radiator cap symptoms before any potentially dangerous problem emerges.
What Is The Purpose Of The Radiator Cap?
The radiator cap is probably the most neglected part of your vehicle’s cooling system, but it’s also the most spectacular. The radiator cap has four roles, and if any of them isn’t functioning properly, you’ll have issues. These are the functions:
- To increase the cooling system’s pressure.
- Excess pressure is released into the reservoir.
- Ensures that the cooling system is completely sealed.
- Through a vacuum valve, coolant is directed to the radiator.
To begin with, your radiator cap pressurizes the system. The coolant’s boiling point is raised as a result of the increased pressure. Because of this, if coolant leaks from the radiator cap, it may burn off on the engine but not inside the system. The coolant will boil if you don’t have a pressurized system, and your engine won’t cool down properly.
Second, while some pressure is beneficial, too much can be harmful. The cap and any other weak places in the system can be blown out by too much pressure. Hoses are also at risk. The radiator cap has a predetermined point when it opens up to transmit the extra pressure to the reservoir. It has an open additional coolant pipe to release the pressure safely.
The third function of the radiator cap is to keep the system sealed. Taking the radiator cap off allows you to add coolant directly to the radiator. But you must not do it while the engine is running because doing so introduces air into the system, which is harmful.
Finally, as the coolant cools, it contracts, lowering the amount of coolant in the radiator. To keep everything at the proper level, the vacuum valve on the radiator cap pumps extra coolant to the radiator.
The Bad Radiator Cap Symptoms And Signs
Now that you know what the radiator cap accomplishes, it’s a good idea to understand how to recognize the indicators that it’s broken or malfunctioning. If you notice any of the following bad radiator cap symptoms, you most likely need it to be replaced:
1. Coolant Leakage
Breakage of the coolant system’s radiator cap can cause the coolant to vaporize, putting seals, gasket, and hose joints under stress and causing them to fail. Coolant leaks can develop over time, and you’ll notice them as pools of brightly colored liquid appear beneath your car.
Look up the cap for signs of wear and breakage if you notice such leaks. Some of these leaks, on the other hand, will only occur when your engine is fully operational, causing coolant to spray out of the pipes and seals.
Grabbing each pipe is one approach to pinpoint the source of a leak. Any damaged seals or gaskets should leak a tiny amount of fluid due to the increased pressure. You’ll need to fix the pipe and seal, as well as inspect the radiator cap, which could be the source of the leaks.
2. Discoloration Or Sluggishness In Coolant
Yellow or bright green is the standard color of most radiator coolants. Clean coolant will change color or become less viscous when dirty coolant, such as rust from radiators, oil leaks, or transmission fluid, is introduced into the cooling system.
Overheating is often the result of sluggish coolant that cannot flow effectively through the engine’s cooling channels. Since coolant is the sole fluid intended to be in the cooling system, the discolored coolant should likewise be a serious concern.
3. Engine Overheating
Radiator caps that fail due to a lack of pressure reduce the boiling point of the cooling liquid, resulting in a lack of engine heat absorption. A radiator cap failure can cause an engine to overheat due to air pockets in the coolant. The temperature reading on the dashboard gauge will increase significantly if the expansion tank cap is defective.
When engines overheat, they harm various auto parts, resulting in extensive damage to the car. It’s vital to bring your car to a complete stop as soon as you detect your engine is overheating. Allow your car to cool completely before checking under the hood to avoid any accidents.
4. Backing-Up Of Antifreeze In The Overflow Tank
You’ll notice the coolant was backing up into the reservoir at some point. If the radiator cap is not properly operating and performing, this could happen. If your radiator cap fails to function properly, the coolant will not return when it is needed.
This is another bad radiator cap symptom. If you see any of these signs, you should inspect the radiator cap right away and get it fixed.
5. Steam From The Engine
Another bad radiator cap symptom is steam coming out of the hood of your car. A defective seal or radiator cap allows coolant to escape as gas, resulting in blowing steam. A steamy engine indicates overheating. Most of the time, steam emerges from the engine hood.
Simply keep an eye out in front of your car windscreen for any vapor and check your temperature monitor in the dashboard panel if applicable. If the gauge indicates that you are in the HOT position, you must come to a complete stop in the safest spot possible. This indicates that your engine has overheated.
Trying to get rid of steam can be quite dangerous when it’s still steaming under the hood; therefore, drivers should use caution when doing so. Before you open the hood to check your engine problems, turn off your car and let it cool down for a few minutes.
Overheating occurs when the coolant reservoir does not have enough heat capacity to handle the heat generated by the engine.
6. Radiator Hoses Bursting Or Collapsing
Hose warping occurs as a result of fluctuating radiator pressure caused by a faulty radiator cap. Low pressure causes a vacuum in the hose, causing it to collapse. Higher pressures, on the other hand, destroy the hoses. When a hose ruptures, coolant sprays into the engine compartment, reducing the amount of coolant available and causing the vehicle to overheat.
A lot of the time, higher pressures just make little holes in the hose rather than fully tearing it in two while driving. This is not evident when the car is turned off and has cooled down due to the hoses contracting in colder temperatures.
However, when you park your vehicle at your destination, the holes are visible due to frequent coolant loss and puddles on the ground. After driving a short distance, check your overflow reservoir for leaking hoses.

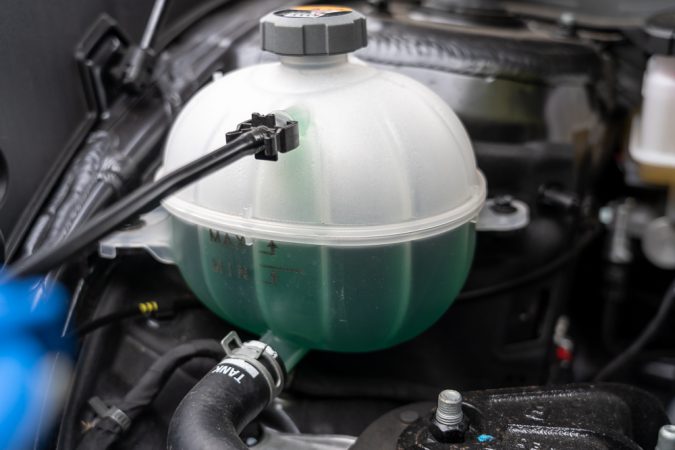

7. The Reservoir Is Constantly Overflowing
When the pressure exceeds the recommended amount, the engine should release coolant into the overflow reservoir to equalize the pressure. However, if your radiator cap is damaged, your car may leak coolant into the reservoir without the help of an overly high-pressure trigger. Due to which the radiator loses pressure, leaving it with little or no pressure.
Low pressure is thus one of the bad radiator cap symptoms. Low pressure causes the radiator coolant to boil away, causing the engine to overheat and fail. Therefore, as soon as you discover bad radiator cap symptoms related to overflowing, you should replace the radiator cap.
8. Airflow Into The Cooling System
Air entering the cooling system is another indicator of bad radiator cap symptoms. Unfortunately, the air in the cooling system is unlikely to be detected until the hoses and tubes begin to collapse. When the vehicle shuts down and cools down, low pressure and vacuum spaces in the cooling system induce breakage. Because of the low pressure, the tubes crack, resulting in leaks.
9. Low Levels Of Coolant
All of the aforementioned conditions might result in low coolant levels in the radiator in one way or another. You observe, however, that the issues all circle around a faulty radiator cap. In the same way that broken hoses create leaks, blocked radiator caps generate pressure build-up and leaks that dramatically diminish coolant levels.
Aside from causing pressure variations, radiator caps that don’t seal properly can also lead to leaks and overflowing reservoirs. One of the key bad radiator cap symptoms to look out for is low coolant levels or your automobile losing liquid coolant faster than usual.
10. Radiator Has A White Streak
When you discover white streaks on your radiator, it’s a more delicate warning that something is amiss with your cap. When coolant spills from your radiator’s top, it dries and leaves these white streaks behind. The good news is that if you haven’t seen any coolant pools under your car, the issue isn’t too serious as long as you take care of it quickly.
The bottom line is that these streaks indicate that your radiator is leaking from the top on a regular basis or when it is under pressure when your car is running. The problem should be resolved by replacing the cap.

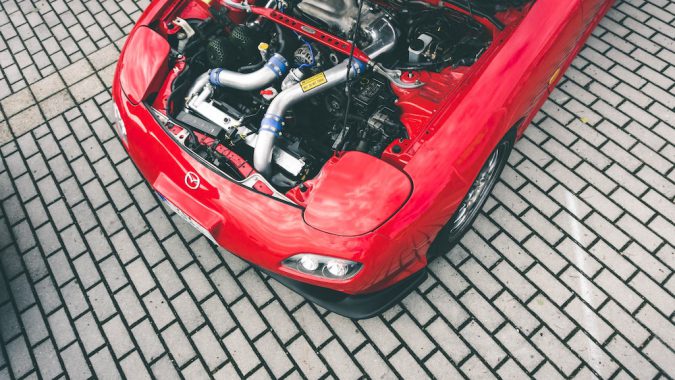

Location Of The Radiator Cap
Many folks ignore the radiator cap, but it’s usually easy to locate. To begin, look for the radiator, normally located near the front of the engine area. The radiator cap is found on the top of the radiator, usually on the left or right side, but it can also be found in the middle.
You’ll need to press down on the radiator cap and twist it off once you’ve found it. It’s critical not to remove the radiator cap from a hot engine. Because the system is pressured, all pressure must be released as soon as the cap is removed. You will not only lose a lot of coolants as it shoots out of the radiator cap opening, but it will also be boiling.
The Radiator Cap: How To Check And Replace It
Now that you’re aware of the bad radiator cap symptoms and signs, you can easily check the area around it to see whether your car is in danger of further damage or repair costs. The radiator should never be opened when it is hot.
Before you open the radiator, let the engine cool completely. The radiator is under a lot of pressure and heat. When you try to open a heated radiator, hot steam and coolant will pour out, and you will very certainly get burned.
1. Assessing The Cap
Check that the pressure indicated on the radiator cap matches the cooling system pressure recommended by the manufacturer before proceeding with the diagnosis. This information can be found in a repair handbook, a factory service manual, or the internet. Visually inspect the cap to ensure that the spring is free to move and that there is no debris or rust beneath it.
2. Cap Replacement
- Allow your car to cool down after turning it off. It’s unsafe to open your hood and handle hot engine parts because it can cause serious harm.
- Locate the radiator cap and unwind it carefully to allow it to open. As you unscrew the cap, you should expect a small burst of pressured steam from the radiator. To avoid getting burned, please handle the cap with protective gloves or a thick towel. After you’ve successfully unscrewed the cap, pull it to remove it.
- To gain access to the entire radiator, remove the mounting shield bolts.
- Loosen the radiator drain plug once the radiator is accessible. The radiator coolant fluid will begin to drain at this point. You may get rid of antifreeze spills by soaking them up with sand or baking soda. You can also use towels to clear up the debris as efficiently as possible.
- Remove all of the mounting bolts from the reservoir and the coolant overflow tube from the radiator neck once all of the fluid has been drained. To guarantee that the defective radiator causes no more damages, remove all fluid coolant and inspect the radiator parts.
- Make sure your new radiator cap matches the original radiator cap that came with your car. Replace the old radiator cap with a new one and refill the radiator with fresh coolant (make sure you’re aware of where do I put antifreeze in my car).
- Tighten the mounting bolts as much as possible and start your car to test your rebuilt cooling system. Keep an eye on the newly installed cap for any discharge or bubbling.

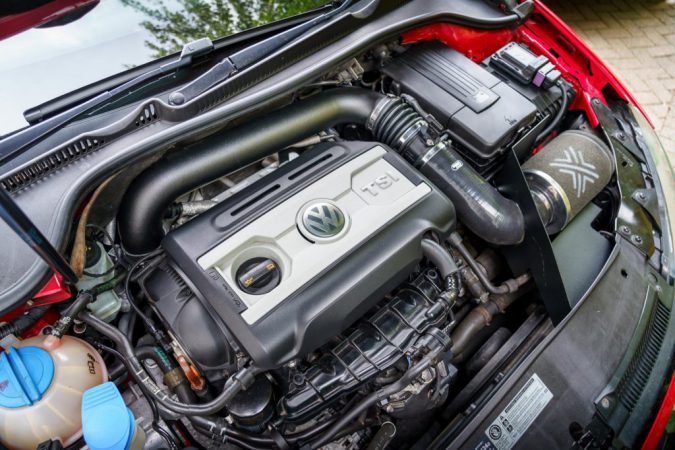

3. Radiator Pressure Testing
You can examine the cooling system in your garage if you have a radiator pressure tester. This may assist you in locating leaks or determining whether the radiator cap has failed. This tester is also available for rent or purchase at your local auto parts store or on Amazon.
- To begin, lift the hood and look for the radiator. It is typically seen directly in front of the vehicle’s engine. Push the radiator cap down and then twist it counter-clockwise to remove it.
- Screw the cap adapter onto the end of the pressure tester. Continue screwing until you can no longer screw it.
- Screw the opposite end of the cap adapter onto the radiator filler neck until it is tight after you’ve fastened the cap adapter to the pressure tester. The pressure gauge should now be firmly attached to the radiator. If it isn’t, it’s possible you’re not using the right adaptor for your radiator.
- Pump the tester using the pump handle until the pressure indicated on your radiator cap is reached. Check to see if the pressure can be stored in the gauge.
- You have a cooling system leak if the pressure begins to drop despite a good seal against the radiator filler neck. It’s preferable to look for external coolant leaks when the system is pressured because they’ll be simpler to spot. Any components that are leaking will need to be replaced.
- After you’ve completed your pressure test, cautiously remove the radiator cap adapter, so the coolant doesn’t leak all over the place. It’s a good idea to keep a pan or bucket on standby to capture any spills. Refill any lost coolant and clean up any spilled coolant on the ground.
Is It Possible To Drive With A Radiator Problem?
A defective radiator will severely harm your vehicle’s engine. This causes your vehicle’s engine to overheat, which can cause major damage to the engine and, in some cases, lead to the head gasket failing. Driving your car with a broken radiator may result in extra damage and, in some instances, highly expensive repairs.
If you notice that your vehicle’s engine is overheating, it is preferable to pull it rather than drive it or allow the car to cool down. If you cannot get your vehicle to function normally at a regular temperature, you must have it towed to a nearby shop for repair.
How Can You Tell If Your Radiator Cap Is Bad?
A faulty radiator cap may not necessarily appear to be faulty. One or more of the bad radiator cap symptoms I mentioned earlier will almost always be present, which will aid your inquiry. You may notice evidence of dried coolant leakage around the cap and down the side of the radiator if the radiator cap has completely failed. The dried coolant has a flaky, chalky look.
A defective radiator cap may not tighten properly onto the radiator when the engine is running, resulting in a lovely fragrance of coolant emanating from the engine. When the engine gets hot, there may be a little quantity of steam coming from around the radiator cap.
When Should You Replace Your Car’s, Radiator Cap?
The radiator cap on your car is recommended to be replaced every 3 to 4 years or 50,000 miles.
The reason for this is that your car’s radiator cap will deteriorate over time. Even if it hasn’t failed totally, it won’t be performing as efficiently as it could, which can impact the cooling system’s performance.
The radiator cap is inexpensive and straightforward to repair, costing between $15 and $25. Therefore inspect it regularly and replace it before it completely breaks.
Cost Of Radiator Cap Replacement
The cost of replacing a radiator cap is determined by the type of radiator cap and the required pressure rating. It can cost anywhere between $10 and $250. The cooling fan assembly is part of a pricey pressure cap replacement.
You should also think about the type of vehicle you own. The more modern your car is, the more expensive it will be to replace it. Radiator cap replacement parts may be readily available and thus much easier to repair if you have an earlier model vehicle.
Consider how much more difficult it will be to replace your radiator. Replacing the cap is inexpensive, but replacing the entire cap, hose, and coolant reservoir can be quite costly. The cost of replacing a radiator cap may also include labor fees. Small garages and auto repair shops may have lower prices than big repair shops with hefty fees.
Is It Possible To Get A Bubble From A Faulty Radiator Cap?
A radiator cap is required to keep the coolant in the radiator stable. Damaged radiators cannot maintain the coolant flowing smoothly through the pump, block, and radiator as a result. In the form of steam bubbles, bad radiators leak coolant fluid through the radiator neck.
Overheating and gasket failure can occur as a result of coolant leakage. Coolant leaks should be checked and repaired as soon as possible to prevent further engine damage.
Additional Tips On Faulty Radiator Cap Signs
In the midst of all of this talk about diagnosing and changing your radiator cap, it’s crucial to remember that good maintenance is your preventative measure against a defective cooling system.
Here are a few things to think about:
- Ensure that you have adequate fluid levels at all times. Always keep a 50/50 water/coolant mixture on hand, or purchase a coolant mixture that has already been prepared.
- Always ensure the cap is securely fastened.
- Your radiator should be thoroughly cleaned. If you clean your radiator regularly, say twice a year, it will benefit your system greatly.
- Having your radiator drained and filled once a year is a good idea.
Facts About Radiator Caps You Need to Know:
- A radiator cap is an important component of a car’s cooling system.
- Overlooking a faulty radiator cap can cause engine overheating, loss of coolant, or major engine damage.
- A radiator cap is critical for a properly operating cooling system, despite its simple appearance.
- Pressurized cooling systems help prevent overheating and coolant loss.
- The pressure relief valve in the radiator cap allows excess pressure to escape when the coolant expands and becomes pressurized.
- The boiling point of the coolant can be raised by about 3-degrees F for each additional psi above atmospheric pressure.
- A high-pressure radiator cap prevents excessive pressure and damage to the radiator, heater core, hoses, or water pump seal.
- Radiator caps also prevent radiator hoses and tanks from collapsing.
- A faulty radiator cap can cause leaking coolant, an overflowing reservoir, collapsed radiator hoses, the air inside the cooling system, and engine overheating.
- It is important to check the radiator cap during routine maintenance, and never remove it when the engine is hot.
Bad Radiator Cap Symptoms – Final Words:
Knowing when to replace your radiator cap will help you avoid future cooling system problems and give a quick fix if your engine overheats or coolant leaks all over your driveway. If you observe any of these bad radiator cap symptoms, inspect the radiator cap for visible damage or replace it to see if the problem is resolved.
A new radiator cap will only set you back a few bucks, but if addressed early enough, it can save you hundreds of dollars in repairs. You should get your automobile checked and regularly maintained to avoid engine trouble, radiator problems, and other vehicle issues. Don’t wait if you suspect bad radiator cap symptoms.
