Front Diff Leak – How To Fix This Issue?

by Kelvin Yates

The differential ensures that your vehicle’s outer drive wheel rotates quicker than the inner drive wheel during a turn. The differential housing is located in the rear of rear-wheel-drive cars and comprises a thick dark oil that is often heavier than 75 weight. It is usually part of the gearbox casing in front-wheel-drive cars and utilizes the same fluid. The ring and pinion gears that transfer power from the driveshaft to the wheel axle are lubricated by differential fluid. Your vehicle’s lubricant will be depleted as a result of a front diff leak. This can lead to serious gear damage.

In this article, we’ll go over the signs and symptoms of a front diff leak, as well as some maintenance suggestions.

Differential Leak

Differential fluid resembles motor oil in appearance. You’ll have to keep your eyes on the leak to figure out where it came from. If you have a leak at the back of your car, whether it’s rear-wheel drive or all-wheel drive, it’s usually due to a leaking differential. Differential oil often has a distinct odor. It might be a differential fluid leak if you notice oil from a leak and it has a distinct odor.

Differentials, on the other hand, do not necessarily leak from the differential itself. Fluid spills into the braking assembly when the outer axle seals break. This type of leak may not be visible right away. When the rear brakes are utilized, you may notice an increase in braking distance or noise from the brakes. Looking at the rear of the backing plate might occasionally reveal this issue.

The backing plate is frequently covered in oil when an axle seal leaks. Remember that this could be brake fluid, so take off the wheel and brake drum (if appropriate) and check the brakes. If the wheel cylinder is not leaking, the axle seal is most likely faulty and must be replaced.

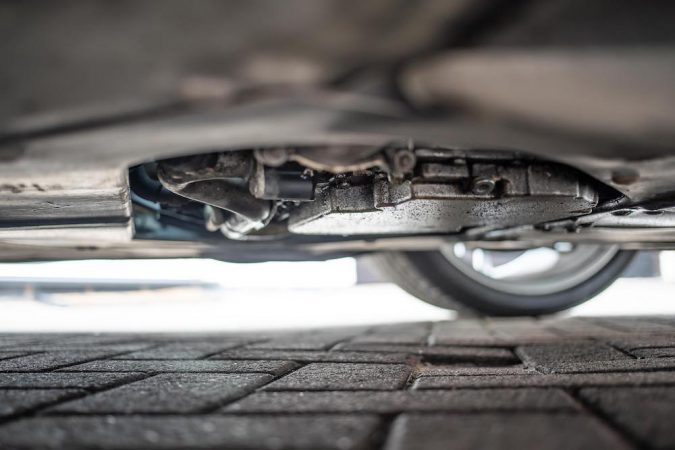

Fluid Leaks

If the leak is in the front of the differential, where the axle enters the assembly, it’s most likely a leaky pinion seal. Because pinion seals aren’t always easy to repair.

A crush sleeve inserted in the differential that helps set the right preload on the pinion may also need to be replaced in addition to the seal. You could harm the differential if this preload is inaccurate.

Before replacing your pinion seal, double-check the torque specs and recommended technique in your vehicle’s service manual. It could be more complicated than you think, and knowing that information before diving in would be beneficial.

What Does Front Differential Do

A vehicle’s left and right wheels will take a slightly different course as you turn it. The inside tire will produce a smaller radius circle, requiring fewer tire revolutions to complete the turn.

Without front and rear differentials, the left and right tires would be forced to spin at the same speed regardless of their varied courses. This would cause traction loss, severe tire pressure, and additional load on other powertrain components if one or both tires slipped.

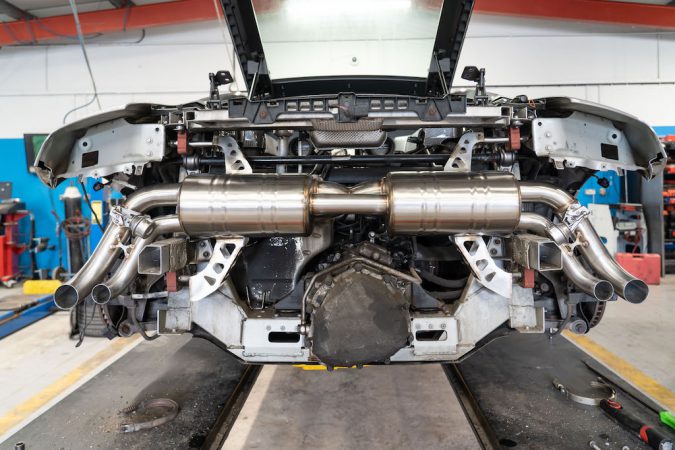

Function Of A Differential

The vehicle’s track width contributes to the speed differential between the two tires. This is the distance between the left and right wheels. The more significant the difference in speed between the inside and outside wheels, and the tighter the turn, the higher the difference in speed.

Types Of Differentials

Below are the following different types of differentials.

1. Open Differential Type

The simplest and most prevalent differential is an open differential. Both outputs receive the same amount of torque. This means that if one tire loses traction, the other tire’s ability to apply force to the ground to push the car forward is reduced.

2. Locking Differential Type

Off-road vehicles with off-road packages, such as trucks and Jeeps, generally include locking differentials. Regardless of wheel slip, a locking differential spins the left and right wheels at the same speed. This differential comes in handy when one tire is stuck in the mud, snow, or even the air.

In a high-grip environment, such as on dry roads, be careful not to lock the differential. This could put undue strain on the powertrain and cause costly component damage.

3. Limited Slip Differential Type

A limited-slip differential (LSD) is a compromise between an open and a locking differential. These are common in sports cars and high-end luxury vehicles. Limited slip differentials come in a variety of forms and implementations.

The basic notion is that when a tire slips, the slipping tire’s maximum wheel speed is limited. The torque is subsequently transferred or multiplied to the remaining gripping tire on the opposing side. This, in theory, lets a vehicle continue moving forward even if one tire loses traction.

Signs Of Low Differential Fluid

The differential output seals are the seals that are situated at the differential output shafts of a vehicle. They often seal the axle shafts against the differential, preventing fluid from seeping out of the differential as it works. Some differential output seals also aid in the appropriate alignment of the axle shafts with the differential.

They’re often constructed of rubber and metal, and they can wear out and fail just like any other seal or gasket on a car. A damaged or failing differential output seal will usually cause a few indications like a front diff leak that alert the driver to a problem that needs to be addressed.

Some of the Warning Indications of a Front Diff Leak are Listed Below.

Front Diff Leak, Symptoms #1: Oil Leaks From The Front Diff Leak

A front diff leak is the most prevalent indicator of a problem with the differential output seal. The axle shafts will leak fluid if the seals dry out or wear down. Smaller leaks may leave light traces of gear oil on the differential housing, while bigger leaks result in drips and pools beneath the car.

Front Diff Leak, Symptoms #2: Differential Whimpering Or Grinding Is Audible

A whining or grinding noise emanating from the vehicle’s front end is another sign of a potential problem with the differential output seal. If the front diff leak is to the point that the differential is low on fluid, the differential may make a roaring, grating, or screeching noise from the vehicle’s front end.

The sound is created by a lack of lubrication in the gears, and it might grow in volume or tone depending on the vehicle’s speed. Any noises coming from the front or rear end should be addressed as soon as possible to prevent damage to any vehicle’s components.

The differential seals are simple in appearance and function, but they play a crucial role in maintaining the differential and vehicle in proper working order. When they fail, the absence of lubrication can create issues and potentially devastating damage to the components.

Have your car evaluated by a skilled mechanic if you suspect the front diff leak or differential output seals to leak. They’ll be able to tell you if your car’s differential output seal needs to be replaced.

Front Diff Leak, Symptoms #3: Damages To The Tire

Your inner tires will wear faster if your left and right tires are driving at the same pace when you turn a corner because they are being forced to rotate faster than they should.

Tire rubbing or the sound of your tires clinging and sliding in rapid succession might occur if your differential is locked. This can sound like a quick scream or a chirp, depending on the rubber compound. The sound’s rhythm will almost certainly cause some vibration.

Front Diff Leak, Symptoms #4: Difficult To Control

If you’re experiencing trouble getting around a corner, you should have the differential looked out. If your car’s differential malfunctions, handling might become unpredictable, perhaps leading to an accident.

Front Diff Leak, Symptoms #5: Overdue Service

Like all other parts of your car, your differential has to be serviced on a regular basis. According to the manufacturer’s recommendations, the differential oil (also known as gear oil) should be replaced. Consult your owner’s handbook to learn about differential maintenance requirements and frequency.

differential oil replaced

Front Diff Leak, Symptoms #6: Vibrations

Another sign of a front diff leak is experiencing strange vibrations when driving. Odd noises or odors, like weird noises or smells, can indicate various automotive difficulties that a skilled mechanic should check out.

Front Diff Leak, Symptoms #7: Odd Smells

When differential oil becomes contaminated, it thickens and burns. As a result, internal gears and other components may become stuck or break. Take it to your repair if you notice a strong burning oil odor. It could just be time for an oil change, or the differential oil could be leaking.

Front Diff Leak, Symptoms #8: Grinding Gears

A grinding or buzzing noise will come from the differential due to worn gears and low differential fluid. A skilled expert should investigate any unusual noises to verify that the problem is resolved appropriately.

Front Diff Leak, Symptoms #9: Fluid Puddles Or Spills

Puddles or drops of fluid on the ground are another sign of faulty or deteriorating differential gaskets. If the differential gasket breaks, the fluid inside the differential housing may leak out, resulting in pools or drips of gear oil on the vehicle’s floor. Leaks big enough to leave traces on the ground usually result in a visible deposit of oil on the differential’s underside, which should also be visible.

Front Diff Leak oil leak odd smells

Front Diff Leak, Symptoms #10: Vehicle Pulling To One Side

When a vehicle’s differential isn’t functioning correctly due to a leak, it might result in uneven power distribution to the wheels. This can cause the car to pull to one side while driving. If you notice your vehicle suddenly veering left or right without any steering input, especially under acceleration, it’s a sign to get your differential checked.

Front Diff Leak, Symptoms #11: Loss Of Acceleration Power

A compromised differential may cause your vehicle to lose some of its acceleration power. If you press the gas pedal and notice a delay or a significant drop in the vehicle’s responsiveness, a differential issue could be the culprit. A leaking differential may not distribute power adequately, affecting acceleration.

Front Diff Leak, Symptoms #12: Increased Fuel Consumption

If your car starts consuming more fuel than usual, it might be because the differential isn’t working efficiently due to a leak. An inefficient differential forces the engine to work harder, leading to increased fuel consumption. Keeping an eye on your gas mileage can clue you into potential differential issues.

Front Diff Leak, Symptoms #13: Overheating Differential

If the differential leaks and loses its lubricating fluid, the resulting friction can cause it to overheat. This overheating can lead to further damage. If you feel excessive heat radiating from the undercarriage or notice a burnt smell, it’s essential to stop and inspect or consult a mechanic.

Front Diff Leak, Symptoms #14: Noticeable Change In Handling During Weather Changes

Differential leaks can impact the car’s handling, especially in wet or icy conditions. If your vehicle behaves differently in these conditions, slipping or skidding more than usual, it could be because the differential isn’t working correctly. Ensure your tires are in good condition first; if they are, consider inspecting the differential.

Front Diff Leak, Symptoms #15: Inconsistent Wheel Spin

The differential ensures both wheels turn at the correct speed. If there’s a leak, you might observe one wheel spinning faster or slower than the other, especially when stuck in mud or snow. This inconsistency is a clear sign of differential issues.

Front Diff Leak, Symptoms #16: Dashboard Warning Lights

Modern vehicles have sensors and warning systems in place. If there’s an issue with the differential, including a severe leak, your car’s dashboard might display a warning light. While these lights could indicate various problems, combined with other symptoms listed, it might be pointing towards the differential.

Front Diff Leak, Symptoms #17: Hard Shifting

For vehicles with manual transmissions, a leaking differential can make it harder to shift gears. The reason for this is the undue strain the compromised differential places on the transmission system. If you notice your car resisting when you try to shift, especially accompanied by other symptoms, it might be due to a diff leak.

Front Differential Leak Repair Cost

The average cost of repairing a faulty front diff leak or rear differential is determined by the severity of the damage. In most cases, repairing a rear or front diff leak should not cost more than $400. The majority of people, though, pay between $200 and $300.

This would entail work such as correcting the backlash and replacing the differential’s oil seal. However, if you need to rebuild a differential entirely, expect to pay between $400 and $800. It’s still less expensive than replacing the complete differential, which costs between $1,000 and $2,000.

How Far Can You Drive Without Differential Fluid

The intensity of the leak determines how risky driving with a front diff leak is. The vehicle should not be driven if there is severe fluid loss, such that it impairs the transmission. If the leak is small and you won’t be able to book an appointment for a few days, you can drive your car as long as the gearbox fluid is full. However, don’t go too far because destroying your transmission is a costly fix.

Differential Maintenance

Lubrication is the best way to preserve your differential in good operating order. It would be best if you changed differential fluid regularly, so check your car manual to see what the recommended period is.

The differential gear must be greased regularly, or the car will not be able to drive or turn properly. One of the most prevalent reasons for differential damage is a lack of fluid or fluid that hasn’t been refreshed in a long time and has beyond its expiration date.

To keep the differential in good operating order, make sure the differential fluid/oil is in good condition and filled to capacity according to the manufacturer’s recommendations. It is very easy for the differential gears to overheat due to all of the friction that occurs in them. A good differential fluid will keep the gears from burning out and wearing out.

You’ll know when the differential fluid needs to be replaced when you hear a humming noise coming from the differential side. As your symptoms worsen, you may notice vibrations, fluid leaks, and even unusual noises.

How To Check Front Differential Fluid

It’s easy and shouldn’t take more than 10 minutes. Simply remove the filler plug, place your finger on the hole filler, and you’ll be able to observe the fluid level and condition. To make it extra clearer, open the drain plug for a few seconds, so a small amount of fluid drains into a small tray. If there isn’t any fluid coming out, the level is too low, and more should be added.

Differential Seal Replacement

A gear differential is a ubiquitous component in all cars, whether they are front-wheel drive, rear-wheel drive, or all-wheel drive. The differential is the housing that houses the gear drive for the drive axle and connects to a drive shaft to supply power to it.

In the case of four-wheel drive cars, each differential has an input and output shaft to supply and distribute power, whether in the front, back, or both. A rubber or hard plastic seal is installed on each shaft to prevent gear oil from escaping while also protecting the inner gear components from contamination from outside debris.

The major reason for oil leakage on the front differential is a damaged differential output seal or axle seal. The differential output seal, like any other seal or gasket, is subject to wear and tear due to excessive exposure to the environment, age, and exposure to gear oil, which is highly viscous and contains corrosive compounds, and dries out the seal with time.

The seal is prone to cracking when it dries out. There are minute perforations between the differential casing and the output seal shaft cover. When the engine is running, the gear oil builds up pressure and can escape through the gaps in the seal, leaking onto the ground.

Most manufacturers estimate that this work can be performed in a few hours if you have all the necessary materials and a replacement gasket.

Step 1: Elevate Vehicle On Jack Stands:

To remove any differential output seal (on the front or rear of the car), you must first remove the wheels and tires before pulling the axle out of the differential. This is why you’ll need to use a hydraulic lift or use jack stands to raise the vehicle. If you have access to a hydraulic lift, you should always use it.

Step 2: Remove The Wheel:

Remove the wheel and tire from the axle with the leaky differential output shaft with an impact wrench or a star wrench, then set the wheel aside for now.

Step 3: Getting The Axle Ready For Removal:

To replace the differential outer seal, you’ll almost always have to remove the axle from the differential.

Step 4: Take The Axle:

Pull the axle out of the differential once all of the hardware has been removed. The axle may usually be removed from the car without the use of any special tools. This makes repairing the damaged seal considerably easier.

Step 5: Remove The Damaged Outer Differential Seal:

The output seal can be seen once the axle has been removed from the differential. It’s a good idea to wipe the inside of the differential with a clean rag or disposable shop towels before removing the damaged seal. This will keep the inside of the differential from being dusty or exposed to the weather.

The most important thing to remember is to avoid scratching the inside area of the differential. Before attempting to install the new seal, remove the old one completely but keep it to match the replacement one you bought.

Step 6: Clean The Differential And Axle Housing’s Inner Seal Housing:

The lack of cleaning by the mechanic is the most prevalent cause of new leaks from recently completed outer seal replacement jobs. It’s critical to remember that the two connected pieces must be clean and free of debris for the seal to function correctly.

Clean the interior of the differential first using a clean rag sprayed with brake cleaner. Remove any remaining seal material that may have broken during the removal process. The axle male fitting that is placed into the differential gearbox should then be cleaned. The new differential output seal will be installed in the next stage.

Step 7: Replace The Differential Output Seal As Follows:

Apply a thin film of new gear oil to the entire circle housing where the seal will be placed. This will aid in the installation of the seal in a straight line. Place the differential seal in place. Install the replacement seal using the seal installation tool flush to the surface.

With a hammer, strike the end of the installation tool straight until the seal pops into place. When the seal is appropriately placed, you should hear it “pop” in most circumstances.

Step 8: Lubricate The Axle Ends:

Lubricate the axle gear ending that will connect to the differential’s inner gears with fresh gear oil. Place the axle in the gears with care, ensuring that they are straight and not forced. Before moving on to the final steps, tighten all bolts and attachments that you had to remove in the previous phases in the opposite sequence of removal.

Front Diff Leak

Step 9: Fill Differential With Fluid:

Fill the differential with fluid after the axle has been mounted, as well as all suspension and steering components. Refer to your service handbook for instructions on how to complete this step, as each vehicle has its own method.

Step 10: Mount The Wheel And Tire:

Tighten the lug nuts to the proper torque settings before reinstalling the wheel and tire.

Step 11: Lower The Vehicle And Fasten All Differential Nuts:

After you’ve replaced the differential output seal, you might want to look into replacing the other one on the same axle (mainly if it’s a front-wheel-drive vehicle).

CV boots are another component on front-wheel-drive vehicles that should be removed and replaced during this repair since they frequently rupture at the same time as the output seal on front-wheel-drive cars.

The replacement of this component should be followed by a thorough road test of 15 miles. After you’ve completed the test, get underneath the car and inspect the differential housing for any fresh fluid leaks.

Facts about Differential Fluid Leaks:

  1. The differential in vehicles is designed to make the outer drive wheel rotate faster than the inner drive wheel during a turn.
  2. Differential fluid is a thick dark oil that lubricates the ring and pinion gears in the differential housing, transferring power from the driveshaft to the wheel axle.
  3. Leaks in the differential fluid can cause damage to the gears in the differential housing.
  4. Common signs of differential fluid leaks include oil traces on the underside of the differential or puddles of fluid on the ground beneath it.
  5. A whining sound may also be heard from the gears when there is not enough fluid to operate smoothly.
  6. Leaks in the differential can be caused by a damaged or deteriorated gasket.
  7. The pinion seal, made of rubber, can also wear out and develop leaks at the front of the differential where the yoke attaches to the driveshaft.
  8. Differential side seals are made of rubber and can be damaged or deteriorate over time, causing fluid leaks.
  9. Differential fluid leaks need to be repaired as soon as possible to prevent damage to the gears in the differential housing.
  10. The type of differential and its location can affect the type of fluid used and the repair process for any leaks.

Front Diff Leak: In Conclusion…

Did you know that as a car is going around a bend, the tires on either side of the vehicle may spin at different speeds to aid handling? Due to the utilization of front and rear differentials, this is possible. A differential is a component of a vehicle’s drivetrain that allows two wheels to rotate at different speeds.

Differentials include one input and two outputs, with each output coupled to a wheel through an axle or driving shaft. If there is a front diff leak, your vehicle will be damaged due to high stress on numerous parts. This is why it’s crucial to be aware of warning indicators.
