If your cooling system has air pockets, the coolant won’t circulate in the engine. To fix this, you must learn how to bleed radiator car.
It might be very challenging to completely deflate your cooling system after replacing your water pump or thermostat.
Your engine might easily overheat, and if you don’t perform it correctly, it could possibly do major harm.
There are various actions that can be taken to greatly simplify the problem. Get all the air out fast and safely by following the steps in this step-by-step manual.
- Engine Coolant System
- Air In Coolant
- Bleeding Coolant System
- Radiator With Coolant
- Coolant Blockage
- Frequently Asked Questions
Engine Coolant System
Your car’s engine performs best when it is hot. When an engine is cold, parts break down more easily, it produces more pollutants, and it runs less efficiently.
Therefore, allowing the engine to warm up as rapidly as possible and then maintaining a steady engine temperature are critical tasks of the cooling system.
A cooling system’s primary duty is to maintain the engine’s ideal operating temperature. The engine will become overheated if the cooling system or any component of it malfunctions, which can cause a variety of catastrophic problems.
Have you ever considered what may occur if your engine cooling system malfunctions? If the issue is severe enough, overheating can lead to engine block cracks and compromise the cylinder head gaskets. The latter is more commonly known as a blown head gasket, where there’s motor oil in the coolant.
And we have to battle the heat. In the event that the engine’s heat cannot be dissipated, the pistons are actually fused to the interior of the cylinders.
The engine must then be discarded and a new one purchased. As a result, you should maintain your engine cooling system and understand how it functions.
Engine Coolant System Components
How To Bleed Radiator Car, Coolant System Component #1. Radiator
For the engine, the radiator serves as an exchanger of heat. It typically consists of multiple pipes with small diameters and has fins attached and is made of aluminum.
Additionally, it transfers heat from the hot water coming from the engine to the surrounding air. It also has a fan to help with this, unless the radiator fan is not working. Additionally, it has an exit port, an inlet port, a sealed lid, and a drainage plug.
How To Bleed Radiator Car, Coolant System Component #2. Water Pump
The water pump will send back the coolant into the heater core, engine block, and cylinder head after it has cooled in the radiator. The liquid eventually returns to the radiator to cool down once more.
How To Bleed Radiator Car, Coolant System Component #3. Thermostat
It is a thermostat that serves as a coolant valve, opening to let coolant through the radiator only when a predetermined temperature has been reached.
Paraffin wax, which expands and opens at a specific temperature, is present in the thermostat. A thermostat is used by the cooling system to control the internal combustion engine’s normal operating temperature.
The thermostat is activated after the engine reaches normal operating temperature. The radiator can then receive the coolant.
How To Bleed Radiator Car, Coolant System Component #4. Freeze Plugs
These are steel plugs used to plug gaps left behind from the casting process in the engine block as well as the cylinder heads. If there is no frost protection, they may pop out in cold weather.
Seals important engine components with the timing head/cover gasket. prevents the blending of cylinder pressure, antifreeze, and oil.
How To Bleed Radiator Car, Coolant System Component #5. The Radiator Overflow Tank
Is a plastic container with one overflow hole and one intake that is often installed adjacent to the radiator. The identical tank that you fill with water before driving is this one.
How To Bleed Radiator Car, Coolant System Component #6. Hoses
A network of rubber hoses transports coolant from the engine to the radiator. Furthermore, after years of usage, these hoses may begin to leak. As a result, you might need to budget for the cost to replace the radiator hoses.
Learn more about the significance of an automotive thermostat for the cooling system of a car.
The Operation Of An Engine Cooling System
You must first describe what a cooling system accomplishes before you can explain how it functions. The cooling system of the car keeps the engine cool.
But given how much heat an automobile engine produces, cooling this engine can seem like a huge undertaking. Consider this. A modest car’s engine produces about 4,000 explosions every minute when moving at 50 mph on a highway.
This is a lot of heat that needs to be concentrated in one location in addition to all the friction from the moving parts. The engine will heat up and shut off within minutes in the absence of a reliable cooling system.
When the outside temperature is 115 degrees, a contemporary cooling system should keep the car cool and keep it warm in the winter.
What Takes Place Inside
Coolant is continuously pumped through engine block channels to power the cooling system. The water pump helps to push the coolant into the cylinder block.
The solution absorbs the heat in the engine as it makes its way through these channels.
The hot fluid leaves the engine and gets into the radiator, where it is cooled by the air which flows through the radiator grill of the car.
After cooling as it travels through the radiator, the fluid will return to the engine where it will pick up further engine heat and carry it away.
Between the radiator and the engine is a thermostat. The thermostat controls how the liquid behaves in relation to temperature.
The solution avoids the radiator and is sent back to the engine block if the fluid temperature falls below a specified point.
When the coolant reaches a specific temperature, the thermostat’s valve opens, enabling the coolant to flow once more through the radiator for cooling.
It appears that the coolant can quickly reach its boiling point because of the extremely high engine temperature.
However, there is pressure on the system to stop this from happening. It is far more difficult for the coolant to achieve its boiling point when the system is under pressure.
However, occasionally pressure builds up and needs to be released before it might cause the hose or gasket to deflate.
The radiator cap collects extra fluid and pressure in the reserve tank to release it. The liquid in the storage tank is returned to the cooling system for recirculation once it has cooled to a temperature that is acceptable.
Symptoms Of Air In Coolant System
Overheating of the air in a cooling system is the most typical sign. The coolant cannot do its function because of the insulation provided by the air. The engine may overheat as a result, which could seriously harm it. But, how to tell if there’s air in the cooling system?
Other signs include a decrease in power, poor fuel efficiency, and an odor of burning coming from the engine compartment. It’s crucial to get your car checked out by a professional as soon as you notice any of these symptoms.
Leaks are another sign of air in the cooling system. If your car starts to leak coolant, there probably is air in the system. The abrupt decline in the radiator’s coolant level is another sign of this. Low coolant isn’t a good sign.
It’s crucial to have your car inspected by a professional if you think there might be a leak so they can identify the issue and fix it. This is especially so with peculiar issues such as noticing that you’re losing coolant, but there’s no obvious leak.
The engine may run rough due to air in the cooling system. This is due to the air’s ability to inhibit optimal combustion.
It’s crucial to have your engine checked out by a mechanic if you notice it running rough.
Take your car to repair as soon as you can if you experience any of these symptoms. They’ll be able to identify the issue and carry out the required fixes.
It’s better to get the cooling system fixed as soon as possible because the air in the system is nothing to mess with.
Bleeding Coolant System
Here we explain how to bleed radiator car of your car without using any special tools.
Always exercise caution while dealing with the cooling systems in automobiles because they can reach boiling points.
Bring a friend with you because it will be much simpler to complete this task with two people.
To easily bleed radiator car, adhere to the following steps:
How To Bleed Radiator Car – Step 1: Prepare The Coolant
Ensuring your antifreeze is ready is the first step in this guide. You should always use the precise coolant that your manufacturer specifies. Your engine could be at risk by using the wrong kind of coolant!
Check your service manual or get in touch with your authorized dealer if you’re unsure of the coolant you should use. You should ideally also learn whether you can mix different coolant colors.
Usually, the coolant mix should be 50% water and 50% coolant (if it is a concentrated anti-freeze coolant). As such, technically, you can put just water in the coolant tank, but it’s only best reserved for emergencies, as water alone isn’t a comparable substitute.
For the correct directions, always read the coolant description. Make sure the coolant mix is appropriate if you reside in a chilly country. Your engine will damage if your coolant freezes inside of it.
How To Bleed Radiator Car – Step 2: Jack Up The Car’s Front End
Raising the front of your vehicle first is a step that few people take but will give you a much better outcome.
This technique makes it much simpler to remove the air from the car, especially if your radiator is where your filling cap is located.
This may not be required if your vehicle has an external expansion tank set up in the back of the engine.
You may either use a floor jack to lift the front of the car or park it with the front facing upwards on an incline.
Always utilize jack stands along with a floor jack to raise your automobile to avoid any mishaps.
How To Bleed Radiator Car – Step 3: Top Off The Coolant
It’s time to fill your coolant as fully as possible once the front of the automobile has been raised. Open the air bleed valves on your engine if it has them when you add the coolant. So, it’s a good idea to learn how to put coolant in your car. On top of that, ensure that you understand just what happens if you overfill the coolant.
When coolant is dripping from them, close them.
Since anti-freeze is poisonous, you should always make sure that none of the coolants is dripping into any floor or road wells.
You should bring back all coolants to your neighborhood environmental assessment. Bear in mind that if any animals consume the coolant, they could become fatally ill.
Take caution when using antifreeze. Go to the next step once you’ve filled your coolant as much as you can.
How To Bleed Radiator Car – Step 4: Fire Up The Vehicle
Now you should start your car. Getting assistance from a friend is the best approach to complete this. If there is air in the system, the water pump may force some coolant from the radiator when you start the engine.
How To Bleed Radiator Car – Step 5: Increase The Temperature In The Cabin
You need to now switch the climate control heat to MAX after starting your vehicle.
Depending on the vehicle, many cars include a valve that, if the temperature control is set to cold, prevents coolant from flowing within the thermal pack.
This method will have no effect on other autos because they divert the airflow rather than the coolant flow. No matter what model you have, turning up your temperature control to the MAX heat is a simple process.
How To Bleed Radiator Car – Step 6: Increase Engine Speed To 3000–4000 RPM
Put your pal in the automobile and let them increase the engine’s RPMs to approximately 3000–4000. If you don’t use the spill tool, this can cause the coolant to leak out of the radiator.
While you are working on the system, maintain the RPMs. While working on it, watch out that the coolant doesn’t become too hot.
How To Bleed Radiator Car – Step 7: Carefully Open The Coolant Bleed Valve
You can now loosen the air-leaking valves while your friend gently revs the engine. Make sure the coolant temperature is not too high because doing maintenance on your car at that point would be harmful.
At this point, keep an eye out for any coolant temperature peaks and leaks. Close the bleed valves after cautiously opening them until water is released from them.
Repeat this several times until you can only get coolant out of them when you open them.
How To Bleed Radiator Car – Step 8: If Necessary, Top Off The Coolant
Retain the air bleeding valves closed. Restart your engine, check and top off the coolant level (make sure you’re aware of any low coolant symptoms), and lower your car’s front end.
Repeat these actions until the car begins to heat up and the coolant temperature reaches 90 degrees Celsius and stays there.
Reinstall the radiator cap. The air should no longer be present in your car if the coolant temperature has reached 90°C (work temperature) and your interior is heated. If you don’t use hot coolant carefully, it could hurt you.
How To Bleed Radiator Car – Step 9: Go For A Test Drive
You need to now ensure that there are no more leaks after the repair (a radiator repair cost isn’t cheap, after all – if not, you’ll need to account for a major radiator replacement cost). If everything appears good, take your vehicle out for a test drive.
Be particularly cautious about your coolant temperature during the test drive, and make sure the car does not start to overheat.
Overheating might cause your head gasket to blow, and you really do not want that to happen. Check the climate control’s temperature and all of its settings.
How To Bleed Radiator Car – Step 10: Refill The Coolant
Open your hood and double-check your coolant level if your test drive went smoothly with no temperature peaks or other odd behaviors. For any coolant leaks, look.
Then, after letting your car sit for a few hours, you can take it for another test drive, follow the same steps, and check for leaks and the coolant level.
Your repair ought to be successful after completing all of these steps. Repeat this method if any odd behaviors persist, or carry on with your troubleshooting.
Fill Radiator With Coolant
If you take the proper precautions, replacing your coolant is a relatively easy auto-maintenance task that you can perform yourself. Always ensure your engine is off and cool before starting.
To refuel the coolant in your car, adhere to the following steps:

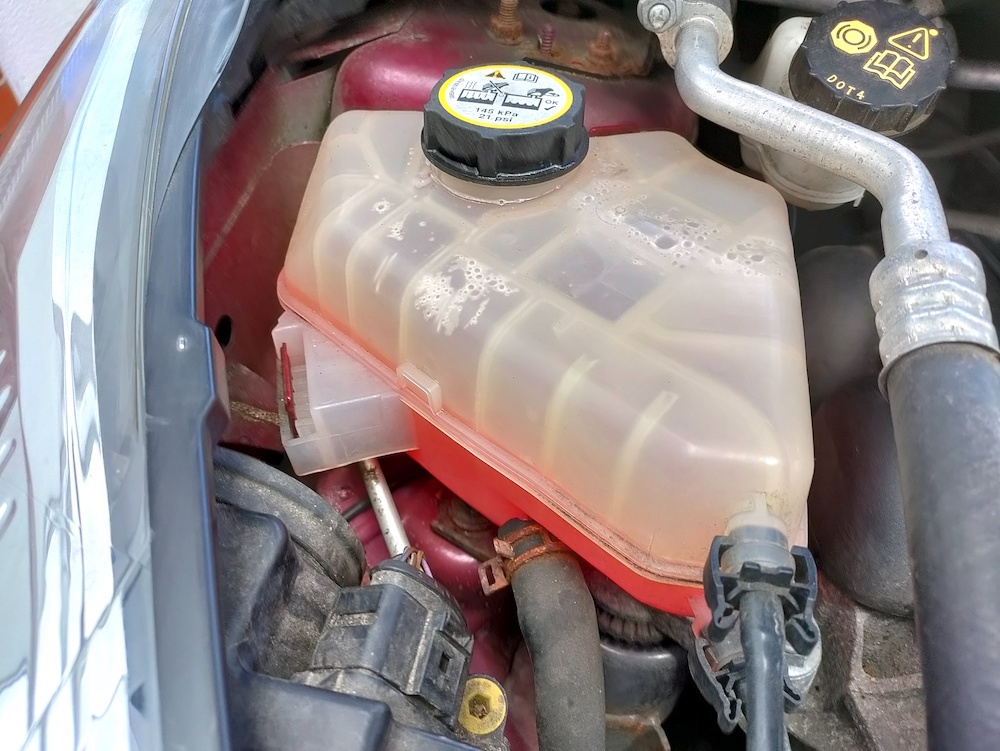

1. Examine The Coolant Level
You should name your coolant reservoir, which is often made of translucent plastic. You may verify if you need to top off the coolant here by looking at the minimum and maximum lines for the coolant that you should mark on the reservoir’s outside.
Check your car owner’s manual if you aren’t sure about locating the coolant reservoir.
2. Mix The Coolant With Water
If you haven’t already mixed the coolant with water, generate the 50/50 coolant and water mix by mixing equal parts distilled water and coolant in an empty container.
Higher-quality coolants often have a longer lifespan. For your engine to run at its optimum, only use premium coolants.
3. Fill The Radiator Up
If the radiator cap on your automobile prevents you from seeing the coolant level, top it off until you can see coolant at the filler neck’s bottom. Additionally, you may see a line displaying the maximum fill level.
Fill the coolant reservoir to the top.
If the level in the coolant reservoir is low or empty, you can top it up to maximum, but don’t overfill it. Whenever this mixture gets hot and needs more space, it will expand.
One approach to keep your radiator in good operating order is to keep your coolant at the proper amount.

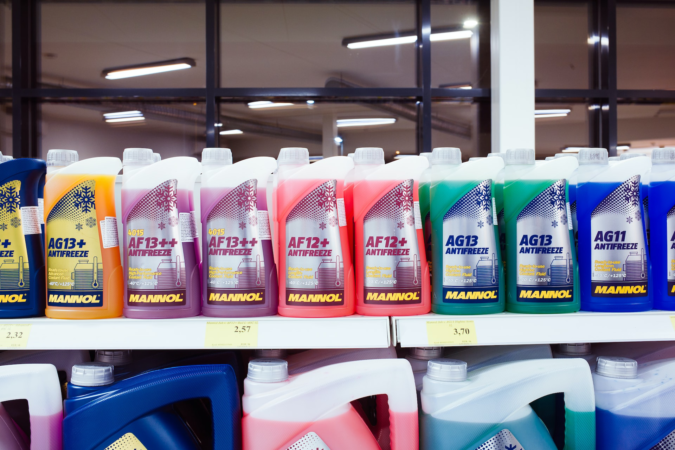

What Kind Of Coolant Is Required
Coolant comes in two main categories: Type A and Type B. Type B solely contains corrosion inhibitors, but Type A also contains anti-freeze.
Combining several coolant types can harm your engine and lessen the effectiveness of the corrosion inhibitor. Therefore, it’s a good idea to read the owner’s manual to find out what type of coolant does your car need.
Things To Keep In Mind
Filling up your coolant is a typical auto maintenance task. However, if you discover that you frequently need to top off your coolant, this may be a sign that your car is leaking coolant. And while you’re at it, try to diagnose what causes that coolant leak, in the first place.
If so, you should have a technician check your cooling system.
Coolant Blockage In Engine
A sealed network of hoses in car cooling systems helps to circulate coolant and antifreeze around an engine.
Because these hoses are in a sealed loop, coolant and antifreeze may flow smoothly and continuously to reach engine parts like the head gasket, cylinder heads, and engine block, keeping the engine at the proper operating temperature.
The engine may overheat if air enters this sealed system, causing obstructions and bubbling.
What causes air to enter the system and how can I remedy it?
As mentioned above, there are a number of potential causes for air to enter the cooling system, ranging in severity from small concerns to serious mechanical issues.
Below are the places that are most likely to malfunction and allow air into the system, along with some suggestions for how to remedy them.
1. Head Gasket
Compressed air from the cylinders can quickly enter the cooling system when a head gasket fails (be wary of the blown head gasket symptoms), which can cause the reservoir to bubble and coolant or antifreeze to seep into the cylinder head.
The engine could quickly overheat as a result, so you should stop right away before it gets worse. This might be tied with early tell-tale signs that you might otherwise need to consider a cylinder head repair. Or, consider the cost of a cylinder head replacement.
- A coolant/antifreeze reservoir with bubbles
- White smoke coming from the exhaust
- Steam rising from the engine
One choice is to have a professional fix the leak. Although this could be pricey, you could use a fluid for repairing leaks at home to save some money.
Just be sure to properly follow the instructions. These do offer secure, long-lasting repairs. If so, you’ll need to brace yourselves for a pricey head gasket replacement cost.
2. Cap On Cooling System Pressure
Cooling systems depend on a pressurized cap to keep the system at a consistent and steady pressure while allowing the coolant to flow into the expansion tank (also called a coolant overflow tank or otherwise as the radiator overflow tank) in order to maintain pressure.
Air can enter the system and cause issues if the cap develops a malfunction (be wary of the bad radiator cap symptoms) or you replace it with a cap that is incompatible with the system.
- Coolant/antifreeze reservoir bubbling
- The cap seal has bubbles
Before the pressure change can harm the radiator if there is a malfunctioning of the pressure cap, you must change it.
Make sure you replace the cap with an OEM (original equipment manufacturer) part or one that the maker has specifically advised.
Check and maintain the water in the car’s radiator on your own.
3. Pockets Of Air In The Radiator
As coolant/antifreeze passes through the engine, blockages can be brought on by air pockets in the radiator.
These typically occur during a coolant/antifreeze flush when not enough is in the system to flush out any leftover air.
- The reservoir is gurgling
- An increase in operational temperature that could cause overheating
- Possible radiator harm
After replenishing the system and flushing the radiator (make sure you also account for the cost to flush the coolant and the cost to flush the entire radiator) and cooling system, run the engine for 15 minutes without the pressure cap.
Performing this will remove any air from the cooling system and radiator before you replace the pressure cap.
Frequently Asked Questions
Where Is The Radiator In A Car
In front of the engine, under the hood, is where you’ll find the radiator. These components are situated close to the coolant reservoir as well.
How Long Does It Take For A Car To Cool Down
An engine that has overheated will need around 30 minutes to come down to a temperature where it is now safe to examine it and maybe work on it under normal conditions.
How To Tell If Air In Cooling System
Radiator airlock symptoms and signs include overheating while driving as usual, the heater isn’t working properly, reduced performance, quick coolant loss and radiator leaks.
