How To Test Spark Plug: Check Your Spark Plugs With Multimeter

by Alex Turner

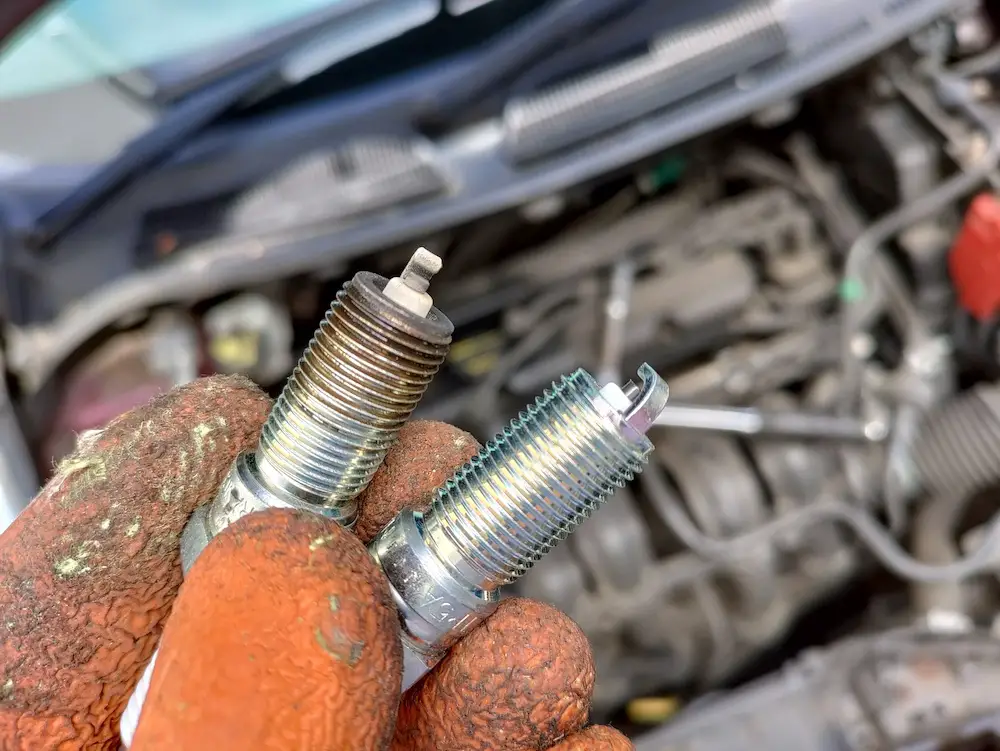

How To Test Spark Plug

How to Test a Spark Plug: A Step-by-Step Guide

Testing a spark plug is an important part of regular vehicle maintenance. A faulty spark plug can cause a variety of issues, including poor fuel economy, engine misfires, and difficulty starting the engine. Fortunately, learning how to test a spark plug is relatively simple and can be done with basic tools.

This step-by-step guide will help you test your spark plugs to ensure they are functioning properly.

Step 1: Gather Your Tools

Before you begin testing your spark plugs, make sure you have all the necessary tools on hand. You will need a socket wrench set that includes both metric and standard sizes; an adjustable wrench; needle nose pliers; wire cutters; and safety glasses or goggles to protect your eyes from debris or sparks while working on the engine.

Step 2: Locate the Spark Plugs

Locate the spark plugs in your vehicle’s engine compartment by consulting your owner’s manual or searching online for diagrams of where they are located in your specific make and model of car. Once you have identified them, use the socket wrench set to remove each one from its respective cylinder head.

Step 3: Inspect Each Plug

Once removed from its cylinder head, inspect each plug for signs of wear or damage such as cracks in the ceramic insulator or corrosion on its metal body. If any damage is present it may indicate that it needs to be replaced immediately rather than tested further. If no visible damage is present proceed to step 4 below.

Step 4: Test for Spark

To test for spark hold each plug firmly against any metal surface on the engine block while someone else turns over the ignition key (or cranks if it’s an older model). Make sure not to touch any other parts of the engine while doing this as there may be a live electrical current running through them which could cause injury if touched directly with bare skin.

If there is no visible sign of sparking (as well as what does a bad spark plug look like and how to tell if a spark plug is bad) then replace that particular plug before continuing with testing other ones in case it was causing problems elsewhere too.

Step 5: Check Resistance Levels

Using an ohmmeter check resistance levels between electrodes on each individual plug by connecting one lead from the meter into the center electrode hole and another lead into the side of the electrode hole – this should give a reading somewhere between 0-20k ohms depending upon type/model being tested (consult manufacturer’s specifications).

If readings are outside this range then replace that particular plug before continuing with testing other ones as well just in case it was causing problems elsewhere too. For more references, refer to our explainers on how to check spark plugs,

Step 6: Reinstall Plugs & Test Drive Vehicle

Once all tests have been completed successfully reinstall all plugs back into their respective cylinders using the socket wrench set again – making sure not to tighten them too much so as not to damage threads inside cylinder heads.

Finally, take the car out for a short test drive around the neighborhood/local area just to make sure everything working correctly before heading off on a long journey.

What You Need to Know Before Testing Your Spark Plugs

Testing spark plugs are an important part of regular vehicle maintenance. It is important to understand the basics of spark plug testing before attempting to do so.

  1. First, it is essential to know what type of spark plug your vehicle requires. Different vehicles require different types and sizes of spark plugs, so it is important to make sure you have the correct ones for your car or truck.
  2. Second, you will need a few tools to test your spark plugs properly. These include a socket wrench set, a gap gauge (among the tools needed for a spark plug change), and an ohmmeter or multimeter. The socket wrench set will be used to remove the old spark plugs from the engine while the gap gauge will be used to measure the gap between each electrode on each plug (with some references about how to gap spark plugs). The ohmmeter or multimeter will be used for measuring resistance to determine if there are any problems with the electrical connection between each electrode on each plug.
  3. Third, it is important that you follow all safety precautions when testing your spark plugs as they can become very hot during operation and can cause serious injury if handled improperly. Make sure that you wear protective gloves and eyewear when handling them and always disconnect any power sources before beginning work on them.
  4. Finally, once all safety precautions have been taken care of and all necessary tools are gathered together, it’s time for testing. Start by removing one plug at a time from its cylinder head using a socket wrench set; then use a gap gauge tool to measure the distance between each electrode on that particular plug; finally use an ohmmeter or multimeter tool to measure the resistance across both electrodes which should indicate whether there are any problems with the electrical connection between them or not; repeat this process for every single one of your vehicle’s spark plugs until they have all been tested accordingly.

The Benefits of Regularly Testing Your Spark Plugs

Regularly testing your spark plugs is an important part of maintaining the health and performance of your vehicle. Spark plugs are essential components in the ignition system, responsible for igniting the air-fuel mixture in the combustion chamber. Without properly functioning spark plugs, your engine will not run efficiently or reliably.

Here are some of the benefits of regularly testing your spark plugs:

1. Improved Fuel Economy: Regularly testing and replacing worn-out spark plugs can help improve fuel economy by ensuring that each cylinder is firing correctly and efficiently. This helps to reduce fuel consumption, resulting in lower fuel costs over time.

2. Reduced Emissions: Worn-out or faulty spark plugs can cause incomplete combustion which leads to higher emissions levels from your vehicle’s exhaust system. Regularly testing and replacing worn-out spark plugs can help reduce emissions levels, making it more environmentally friendly to drive around town or on long trips.

3. Increased Performance: Properly functioning spark plugs ensure that each cylinder is firing correctly and at its peak performance level, resulting in improved acceleration and overall engine power output when driving around town or on highways at higher speeds.

4. Longer Engine Life: Faulty or worn-out spark plugs can cause misfires which put extra strain on other components such as pistons, valves, bearings, etc., leading to premature wear-and-tear on these parts as well as increased risk of an engine failure over time if left unchecked for too long a period of time. Regularly testing and replacing worn-out sparks helps ensure that all cylinders are firing correctly so you don’t have to worry about any unexpected breakdowns due to faulty ignition system components.

Overall, regularly testing your spark plug is an important part of maintaining a healthy vehicle with improved performance, better fuel economy, reduced emissions, and longer engine life.

Common Problems That Can Be Detected Through Spark Plug Testing

How To Test Spark Plug

Spark plug testing is an important part of regular vehicle maintenance. It can help detect a variety of common problems that can affect the performance and efficiency of a vehicle. Some of these issues include:

1. Fouled spark plugs: Spark plugs can become fouled due to oil (basically, there being oil on the spark plug), fuel, or carbon deposits that build up on them over time. This can cause misfires and poor engine performance.

2. Worn spark plugs: Over time, spark plugs will wear out and need to be replaced to maintain optimal engine performance. Worn spark plugs can cause misfires, poor fuel economy, and increased emissions levels.

3. Incorrect gap settings: The gap between the electrodes on the spark plug needs to be set correctly for it to work properly. If it is not set correctly, it could lead to misfires or other issues with engine performance and efficiency.

4. Damaged insulation boots: The insulation boots on the end of each spark plug are designed to protect against electrical shorts caused by moisture or debris getting into the cylinder head area around the plug itself. If these boots become damaged or worn out they may need replacing for proper operation of the engine system as a whole.

How to Read the Results of a Spark Plug Test

Reading the results of a spark plug test can provide valuable insight into the performance of an engine. Spark plugs are essential components in any combustion engine (once you’ve figured out how to read spark plugs), and their condition can have a significant impact on how well the engine runs.

By performing a spark plug test, you can determine whether or not your spark plugs are functioning properly and identify any potential issues that may be causing problems with your engine’s performance.

To read the results of a spark plug test, begin by examining the color of each spark plug’s ceramic insulator tip. The color should be light tan to grayish white; if it is black or sooty, this indicates that there is too much fuel being burned in the cylinder and could indicate an issue with either fuel delivery or ignition timing.

If there is oil present on any of the plugs, this could indicate worn piston rings or valve seals which would require further investigation. Next, check for signs of wear on each electrode tip (and in general, the symptoms of a bad spark plug); if they appear to be eroded or rounded off then they may need to be replaced as soon as possible.

Finally, inspect each electrode gap using a feeler gauge; if it is too wide then it will need to be adjusted accordingly in order to ensure the proper operation of your engine’s ignition system. By following these steps you should have all the information necessary to interpret your spark plug test results and take appropriate action if necessary.

Remember that regular maintenance and inspection are key when it comes to keeping your vehicle running smoothly for years to come.

Troubleshooting Tips for When Your Spark Plugs Fail the Test

If your spark plugs fail the test, it can be a frustrating experience. Fortunately, there are some troubleshooting tips that can help you identify and resolve the issue.

  • First, check to make sure that all of the spark plug wires are connected properly. If any of them are loose or disconnected, they will need to be reconnected before continuing with any other troubleshooting steps.
  • Next, inspect the spark plugs for signs of wear or damage. If they appear worn or damaged in any way, they should be replaced immediately as this could be causing the failure.
  • If neither of these issues is present, then it may be necessary to clean and adjust the gap on each spark plug (you can learn more in our guide on how to clean a spark plug) using a feeler gauge. This will ensure that each plug is firing correctly and at its optimal performance level.
  • Finally, if all else fails it may be necessary to replace all of the spark plugs with new ones as this could solve the problem entirely. It is important to use high-quality replacement parts when doing so to ensure optimal performance from your vehicle’s engine system going forward.

By following these troubleshooting tips you should have no trouble identifying and resolving any issues related to your failed spark plug test quickly and easily.

The Different Types of Tests Used for Diagnosing Faulty Spark Plugs

Spark plugs are essential components of an internal combustion engine, as they are responsible for igniting the air-fuel mixture in the cylinders. When spark plugs become faulty, they can cause a variety of issues with the engine’s performance. To diagnose and identify any problems with spark plugs, several tests can be used.

  1. The first test is a visual inspection. This involves removing the spark plug from its housing and examining it for signs of wear or damage such as cracks or corrosion on its surface. If any irregularities are found, then further testing may be necessary to determine if the spark plug needs to be replaced.
  2. The second test is a compression test which measures how much pressure is being generated by each cylinder in an engine when it is running at different speeds and under different loads. This will help to identify any cylinders that have low compression due to worn-out or faulty spark plugs.
  3. The third test is a resistance check which measures how much electrical resistance there is between two points on the spark plug’s electrodes when current passes through them. If there is too much resistance then this could indicate that there may be an issue with one or more of the electrodes on the plug itself, such as carbon buildup or corrosion which would need to be addressed before replacing it with a new one.
  4. Finally, another useful diagnostic tool for identifying faulty spark plugs is an oscilloscope which can measure voltage fluctuations over time while an engine runs at different speeds and under various loads. This will help pinpoint any irregularities in voltage output from individual cylinders that could indicate problems with their respective spark plugs such as misfiring or weak sparks due to worn-out electrodes or other issues within them.

How to Choose the Right Type of Spark Plug for Your Vehicle

When it comes to maintaining your vehicle, one of the most important components is the spark plug. Spark plugs are responsible for igniting the air-fuel mixture in your engine’s cylinders, and if they are not functioning properly, your vehicle will not run efficiently. Therefore, it is essential to choose the right type of spark plug for your vehicle.

  • The first step in selecting a spark plug is determining what type of engine you have. Spark plugs come in two main varieties: conventional and iridium-tipped (check out our comparison of platinum vs iridium spark plugs to learn more). Conventional spark plugs are designed for older engines with lower compression ratios and require more frequent replacement than iridium-tipped ones. Iridium-tipped spark plugs are designed for newer engines with higher compression ratios and can last up to four times longer than conventional ones (if you’re curious about how long do spark plugs last).
  • Once you have determined which type of engine you have, you need to consider other factors such as heat range and gap size when selecting a spark plug. Heat range refers to how hot or cold a spark plug runs; too hot or too cold can cause pre-ignition or misfiring issues respectively. Gap size refers to how far apart the electrodes on the end of the spark plug should be; this should be set according to manufacturer specifications as incorrect gap size can lead to poor performance or even damage your engine over time.
  • Finally, make sure that you select a quality brand when purchasing new spark plugs; some brands may offer cheaper prices but may not provide reliable performance over time due to inferior materials used in their construction process.

By taking into account all these factors when choosing a new set of spark plugs for your vehicle, you can ensure that they will perform optimally and help keep your car running smoothly for years to come.

Q&A

1. What tools do I need to test a spark plug?

A: You will need a spark plug tester, which is available at most auto parts stores. You may also need an adjustable wrench and a pair of pliers.

2. How do I know if my spark plug is working correctly?

A: To test the spark plug, attach the tester to the end of the spark plug wire and then crank the engine over while observing the tester’s indicator light or needle. If it lights up or moves, then your spark plug is working correctly.

3. What should I do if my spark plugs are not firing properly?

A: If your spark plugs are not firing properly, you may need to replace them with new ones or adjust their gap settings using an adjustable wrench and pliers. It’s also possible that there could be other issues with your ignition system that require further investigation by a professional mechanic.

4. How often should I check my spark plugs?

A: It’s recommended that you check your vehicle’s manufacturer-recommended maintenance schedule for specific instructions on when to inspect and replace your vehicle’s spark plugs as part of regular maintenance procedures. Generally speaking, it’s best practice to inspect them every 10,000 miles or so for optimal performance and fuel efficiency levels in most vehicles today.

5. What happens if I don’t change my old spark plugs?

A: If you don’t change out old spark plugs regularly they can become fouled with carbon deposits from unburned fuel which can cause misfires in your engine resulting in poor performance and decreased fuel economy levels over time as well as increased emissions from incomplete combustion processes within the engine itself.

6. What type of damage can occur if I use incorrect gap settings on my new spark plugs?

A: Incorrectly gapped sparks plugs can cause pre-ignition problems leading to detonation which can result in serious damage such as bent connecting rods or even cracked cylinder heads due to excessive pressure buildup within the cylinders themselves.

7. What type of symptoms might indicate that one or more of my spark plugs needs replacing?

A: Symptoms such as rough idle, poor acceleration, stalling at idle speeds, misfiring under load conditions (such as when climbing hills), and increased exhaust emissions levels (especially visible smoke) all indicate potential problems with one or more of your vehicle’s sparking systems components including its sparking system itself.

8. Are there any special precautions that should be taken when testing/replacing spark plugs?

A: Yes. Always make sure you disconnect any power sources before attempting any work on electrical components such as those found within a vehicle’s sparking system including its sparking system itself. Additionally always wear safety glasses when performing any work around potentially hazardous materials such as gasoline vapors etc.
