The car’s engine is connected to various accessories such as an A/C compressor, power steering pump, alternator, and water pump. All of these accessories are integral to the workability of the vehicle. The accessories are connected to the engine by a serpentine belt or drive belts. Before we delve more into idler tensioner pulley replacement cost, it is prudent that you first understand what role they play.
Cars are fun to drive and offer a lot of convenience in our day-to-day lives. A reliable car model can run for years if well taken care of. However, a known issue with most vehicles is an idler tensioner pulley failure. In this guide, we will be taking a deeper look into the problems associated with this component and the replacement cost. The idler pulley directly influences the performance of the engine and other critical components.
It is very important to catch the idler tensioner replacement symptoms on time because it will significantly reduce the amount you have to pay as replacement costs. The idler tensioner pulley can be quite expensive to replace if left to wear out completely. An important question to ask now is what is an idler tensioner pulley. Understanding what it consists of will go a long way into enabling you to determine which part is worn out and needs replacement.
- Replacement Cost
- Definition of Idler Tensioner Pulley
- Worn-Out Serpentine Belt
- Idler Tensioner Pulley Noise
- Visible Pulley Wear
- Belt Travel
- Frozen Pulley
- Damaged Pulley Bracket
Idler Tensioner Pulley Replacement Cost
Replacing the idler tensioner is relatively easy and should not take more than an hour or two. The replacement parts cost will vary depending on the type of car. And how long the repair takes and what parts get replaced depends on the severity of the damage.
You will pay anything between $125 and $380 for a full idler tensioner pulley replacement cost. The parts can cost as much as $225 and as little as $85. The labor cost should range between $45 and $150.

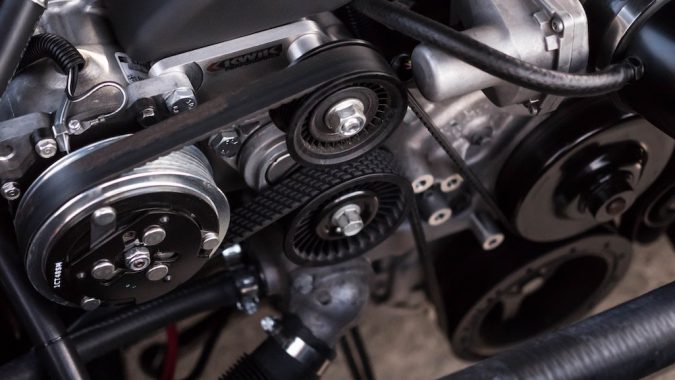

Idler Tensioner Pulley: What Is It?
The idler tensioner pulley is a common engine component found in the engine compartment of most vehicles on the road. Although most cars have an idler tensioner pulley, some models have engine designs that do not require this component. In most vehicles that have it, the idler tensioner pulley is located in front of the engine.
The pulley itself is circular and has grooves in which the accessory belt runs. On the idler tensioner pulley, the wheel pulley and the tensioner are different parts that perform different functions. So what is the difference between the idler pulley and the idler tensioner?
The Idler Tensioner
If you notice that the serpentine belt is loose or does not quite sit well on the pulleys, it may be that the tensioner is no longer working properly. The tensioner part is designed to ensure your car’s accessories receive the necessary power to keep them running. There are three types of idler tensioner designs available for automotive. These are:
1) Automatic Spring-Loaded Tensioners
These are the most common type of belt tensioners available on many vehicles. Most auto-makers prefer the spring-loaded belt tensioner design because of its efficiency and durability. In this type of tensioner, the tensioner assembly has a spring encased to provide the necessary pressure.
The spring is connected to a swing arm that moves to keep the belt tight. This type of tensioner is set according to the manufacturer’s specifications. However, the spring will wear out over time, which may necessitate replacing the entire idler tensioner pulley system.
2) Manual Belt Tensioners
Most old-school vehicle models were made with engine designs that used a timing belt instead of a serpentine belt. This type of tensioner has a bolt that can be turned to adjust the tensioner’s position. This tensioner cannot be adjusted while the engine is running. With this manual belt tensioner design, its position is adjusted as the timing belt stretches over its lifetime. This adjustment can be conveniently made during routine maintenance checks.
3) Hydraulic Tensioners
If you drive a muscle car with a V8 or V6 engine, there is a good chance that you have a hydraulic tensioner under the hood. Instead of a swing arm loaded with a spring, hydraulic tensioners have a hydraulic piston. The piston delivers pressure to the idler tensioner pulley according to the changing power demands within the engine.
Most car-makers use hydraulic tensioners with larger engines because their design provides greater support for a different movement. Depending on the manufacturer’s specs, you can often replace the piston instead of the entire assembly if the tensioner fails.
As the name suggests, these pulleys do just that. They ‘idle.’ They are turned by a crankshaft but do not power any accessories. Instead, they are just used to route the timing belt or serpentine belt, depending on the vehicle’s engine design.
Idler tensioner pulleys are connected to the tensioner and are the part on which the belt being tensioned runs on. as with any other pulleys; the idler tensioner pulleys can be made of any sturdy material. Steel is a very popular choice because of its durability and strength.
Components Of The Idler Pulley
Generally, the idler tensioner pulley must have three components. These parts are integral to the functionality of the idler pulley, just as the idler tensioner is integral to the workability of your car. These parts are;
- A sheave or wheel with flanges and a groove around its circumference. The timing belt or serpentine belt will typically ride in this area.
- A bearing that allows the outer ring to spin freely while the inner ring remains stationary. This type of bearing is usually made of ball bearings in a housing lubricated with grease.
- The center hole is used for mounting the pulley to the engine surface. Some idler tensioner pulley designs have a greased bushing in the center hole. The majority of idler tensioner pulleys have a center hole fitted with a radial bearing.
You may have noticed that idler pulleys come in different groove shapes. The shape of your car’s idler tensioner pulley groove is determined by the type of timing or serpentine belt you are using. For example, a V-groove idler is designed to work with V-groove belts. Keep this in mind when shopping for aftermarket idler tensioner pulley replacements.
Idler Tensioner Pulley Replacement Cost – Functions
1) Guides The Serpentine And Limits The Belt Slip
The primary function of an idler tensioner pulley is to guide the serpentine belt and limit the belt slip. As we stated earlier, the belt tensioner can be hydraulic, manual, or spring-loaded. These options can be interchanged if one is not functioning efficiently. For example, it’s common for sports car mechanics to swap mechanical tensioners with hydraulic tensioners. This is to provide sufficient damping and tensioner mobility for improved performance.
Although hydraulic tensioners allow for a more extensive range of serpentine belt lengths, they require more engine room than spring-loaded tensioners. The pulley on the idler tensioner guides the tension in the serpentine or timing belt. The pulley is a vital component that works to route the drive belts in the crowded engine compartment. It prevents the belts from running on any accessories and causing disruption of energy flow.
2) Maintaining The Engine Belt At Proper Alignment And Rotation
Using an idler tensioner pulley maintains your engine belts at proper alignment and rotation. It ensures the belt is rotating in the right direction and at the right speeds. The functionality of the idler tensioner pulley affects your vehicle’s workability and performance. Older car models used to have multiple drive belts and therefore needed several tensioners. Today, however, the majority of modern cars have one serpentine belt that powers multiple accessories. This is why your car probably has only one idler tensioner pulley.
Over time these pulleys do wear out and cause many bad idler tensioner pulley symptoms and problems. It is important to tell when your idler tensioner pulley begins to wear out before it translates to more expensive engine issues. The idler tensioner puller directly correlates to the serpentine belt. This makes it easy to mistake a worn-out serpentine belt for a failing idler tensioner pulley. It is, therefore, prudent to outline the symptoms of a worn-out serpentine belt so that you can rule it out when inspecting your tensioner pulley for malfunction. Here are some of the symptoms of a worn-out serpentine belt.
Idler Tensioner Pulley Replacement Cost – Symptoms
Also known as the accessory belt, the serpentine belt is the main engine belt you see in front of the engine. The distinct ridges on the side of the belt make the serpentine belt easily distinguishable from other engine belts. The ridges are there to increase grip on the pulleys. The serpentine belt transfers the spinning motion of the crankshaft to the engine accessories. Here are some of the common symptoms of a worn-out serpentine belt.
1) No Power Steering
Power steering is what allows you to effortlessly and smoothly steer your vehicle. It eliminates the need to apply too much arm strength when steering your vehicle. If you notice that you are having difficulty moving the steering wheel, it’s probably because your serpentine belt is worn out. Lack of power steering can also be a sign of low levels of power steering fluid.
2) Visible Cracks On The Serpentine Belt
In most cars, the serpentine is easily accessible when you open the vehicle’s hood. Visually inspecting the belt is an excellent way of telling whether it needs replacement. Visible cracks on the belt are a telltale sign that it needs immediate replacement.
3) Overheated engine
Engines on the majority of vehicles in the market are water-cooled. The water needs to be pumped to transfer heat from the engine to the radiator. The water pump is powered via the serpentine belt. Therefore, if the serpentine belt is worn out or damaged, it won’t activate the engine water pump. This means the engine will not be cooled and will therefore begin to overheat.
4) Lack Of Air Conditioning
Sure, lack of air conditioning can be caused by a myriad of other vehicle issues. But one of the most commonly attributed causes of a malfunctioning air conditioner is the serpentine belt. This is because it keeps the air conditioning unit of the car functional. So next time you turn on that A/C, and it does not blow out chilled air, start by checking the serpentine belt.
5) Pulley Whine
As stated earlier, a radial bearing is one of the pulley’s components. The bearing is likely to fail prematurely if too much load is applied to it. The serpentine directly translates the engine load onto the pulleys. Therefore, if the serpentine belt is too tight, it may damage the pulley bearings and cause them to produce a whine.
Idler Tensioner Pulley Noise
Now that you know how to spot a bad serpentine belt, it is equally important that you know how to tell if you are having issues with a bad idler tensioner pulley. The most common symptom of a failing idler tensioner pulley is a squealing noise. If you crank your car’s engine and notice a squealing noise emanating from the engine compartment, it is most probably being produced by the idler tensioner pulley.
Several reasons can cause idler tensioner pulley noise. Fortunately, with some handy skills and know-how, you can analyze and resolve most idler tensioner pulley problems on your own. Check the following video for detailed insights.
Causes Of Idler Tensioner Pulley Noises
- Worn Out Or Old Pulley – Every time the engine runs, it constantly spins the idler tensioner pulley. After years of spinning along with the serpentine belt, the pulley will eventually wear out. When it wears out, the pulley develops marks and scuffs on its surface. This is what causes the initial less noticeable noises.
- Pulley Slippage – After enough wear and tear, the idler tensioner pulley will begin to slip. As the engine belt runs in its groove, the pulley will likely bind and rub against the rubber of the serpentine belt. As a result, the slippage will cause a sharp squealing noise that will only get worse if not attended to.
- Complicated Pulley Damage – When it comes to the extreme, a damaged pulley can eventually break apart. Although this process won’t happen in a day or two, it will eventually happen if the idler tensioner pulley problem is left long enough. The fissures on the pulley surface turn into cracks which will lead to the disintegration of the sheave.
Visible Pulley Wear
If you are the kind of driver who religiously checks everything in their car every time they get behind the steering wheel, visible wear on the pulley will help you detect a problem long before it manifests into bigger issues. But there is a catch to it. To notice any changes, you have to know how the pulley looked when in good condition or new.
What you will be looking for is signs of wear like scoring and scuff marks on the surface of the pulley. Wear and tear are expected since the pulley surface is constantly in contact with the drive belt. As the contact surface of the pulley wears out, it is also very likely that the belt will also be showing signs of wear.
We said the primary function of the idler tensioner pulley is routing the serpentine belt in its correct loop. When the whole assembly is working perfectly, the serpentine belt should move smoothly along the system when the engine is idling. Any wobbling or vibration is a sign that you have a bad idler tensioner pulley. It is time to replace the tensioner pulley.
Belt travel typically occurs if the idler tensioner pulley has already suffered sufficient damage. Unlike the other cases of noise where only the pulley surface is damaged, belt travel only occurs when there is significant damage to the pulley’s hardware. When the belt is wobbling, it is rather hard to maintain the tension of the belt.
Therefore, the belt may jump right off the pulley. It is also possible for the groove to widen and destabilize the movement of the belt. Whatever the case, it is definitely time to have your car checked for idler tensioner pulley damage
A frozen pulley is simply a stuck pulley. As we mentioned earlier, the pulley’s rotation motion depends on the radial bearing at the middle of the pulley. If any damage occurs to this bearing, the pulley will have difficulty spinning or stop rotating completely. An idler pulley should be relatively easy to spin, even by hand.
Carefully remove the serpentine belt from the idler tensioner pulley to find out if it is frozen—exercise caution when removing this belt. Make sure the engine is not running before you proceed to take the belt off the pulley. After you have removed the belt, give the pulley a push with your hand to spin it. Ideally, if it is in good shape, the pulley will spin freely. If you notice it is hard to get the pulley to spin, you should consider replacing it immediately.
Damaged Pulley Bracket
You can still experience problems with a good pulley. Even with an idler tensioner pulley that is working perfectly, you can still notice symptoms of a malfunctioning pulley. This is because the pulley relies on a sturdy and stable platform to function optimally. The pulley is mounted onto the tensioner using a bracket that can also come loose or warp. Since the pulley is mounted on to movable tensioner swing arm, the vibrations can loosen the bolt fastening the pulley to the bracket.
Since the pulley is not stable, you may notice the serpentine belt wobbling. If left unaddressed for long, the pulley wobble can lead to faster deterioration of the pulley. It is also possible for the wobble to force the serpentine belt off the path of the pulley. Fortunately, it is easy to replace the idler tensioner pulley bracket.
Idler Tensioner Pulley Replacement Cost – DIY Steps
How to do it
- Safety first. Disconnect the battery cables to cut power to the engine. Set the cables aside and ensure they cannot come into contact with any metallic parts of the car.
- Remove the tensioner. Generally, locating and removing the tensioner is relatively easy. In some cases, the tensioner is in a tight place, and some other parts have to come off to get to it.
- After locating the idler tensioner, rotate the swing arm towards the center of the engine to loosen the tension on the belt.
- Remove the serpentine belt for the idler tensioner pulley. To be on the safe side, you do not have to remove the drive belt from the other pulleys unless it is in the way or you want to replace it as well.
- Unbolt the idler tensioner from the engine block.
- Check the new idler tensioner pulley for defects. It should spin freely and not produce any grind or squeak. Replace it on the pulley bracket.
- Bolt the tensioner back to the engine block and slide the belt on the new pulley. Adjust the tension of the belt according to the manufacturer’s specifications.
- Put everything back together and test if the fix has applied. This is basically doing the reverse of the steps above.
How Long Should The Idler Tensioner Pulley Last
The idler tensioner pulley is designed to last the lifespan of your car. The pulley is usually made of a durable and sturdy material like metal. However, due to the harsh conditions in which the idler tensioner pulley operates, it will eventually wear out. Even when they are made of other materials, it is usually reinforced plastic. The sheave usually has a pressed radial bearing in the middle. The bearing is also designed to last as long as possible and comes sealed to reduce the need for regular greasing.
The bearing and the pulley itself can provide years of service without showing any signs of damage or wear. It is still important to routinely check the idler tensioner pulley for damage because a malfunctioning pulley can bring your car to a grinding halt. When inspecting the idler tensioner pulley, check the whole assembly for any signs of damage. If the seal comes off the bearing, it can still cause engine problems.
Car Drive Belt Tensioner Replacement Facts:
- The national average cost to replace a car’s drive belt tensioner is between $235 and $267, depending on whether you go to a mechanic or do it yourself.
- This price range does not factor in taxes, fees, or your particular make and model of the vehicle.
- The cost to replace the belt tensioner assembly yourself ranges from $40 to $173, with the main cost being labor.
- Depending on the vehicle, the drive belt tensioner can last up to 125,000 miles or as early as 50,000 miles.
- A drive belt tensioner is a pulley that maintains constant tension on the serpentine belt and is critical to keep pressure on the pulleys that drive the car’s other components.
- If rust or corrosion jams the tensioner housing, it won’t maintain correct belt tension, leading to potential problems.
- The belt tensioner and pulleys are usually replaced together, and it takes a mechanic 15 minutes to an hour to replace the belt tensioner.
- Failing to replace the belt tensioner could cause issues with components that require the serpentine belt’s power, such as the alternator, air conditioning, and power steering, leading to dangerous driving conditions and engine damage.
- Common symptoms of a broken belt tensioner include squeaking or grinding noise, loud screeching or rattling noise from the front of the engine, and loss of power to the alternator.
- Related maintenance services include drive pulley inspection, replace idler pulleys, and serpentine belt replacement.
Idler Tensioner Pulley Replacement Cost – Takeaway
The idler tensioner pulley is an important component as it is what keeps the serpentine belt of your car well aligned and routed. The pulley assists the tensioner attached to it to keep the serpentine belt properly tensioned. This is vital for transferring the engine’s drive power to accessories such as the air conditioner, water pump, and alternator. Each of these accessories is integral to the driving experience you get from your car. Fortunately, the idler tensioner pulley is easily replaceable. You just need some simple tools, handy skills, and the guidance of your car’s manual. If you suspect that your idler tensioner pulley may be having an issue, have it checked by your mechanic or inspect it yourself.
