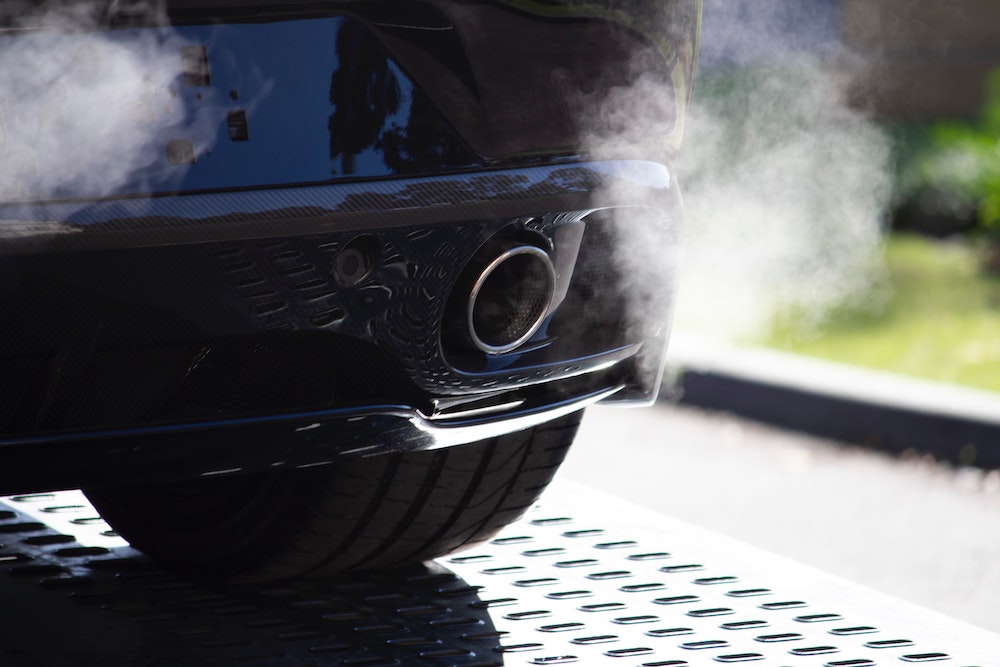

With an intensifying effort to cut down on global emissions, your car has to work that much harder to drive more efficiently. This means lowering tailpipe pollution, increasing fuel economy, while also being able to perform with just as much gusto when it comes to power and speed. Thankfully, the advances in technology grant us cars that are as efficient as they can be… Unless P0141 comes about.
See, there is a myriad of sensors that proactively monitors and analyze countless different parts of your car in real-time. In doing so, all those sensors can report back to the ECU, which micromanages the vehicle in relation to balance performance, efficiency, and emissions. Among them is the oxygen sensor (also known as the O2 sensor), which measures the amount of oxygen left in your exhaust.
The O2 sensor knows if combustion is completed properly, or if there’s unburnt fuel flushed through your exhaust system. But what if the O2 sensor is having difficulties in working optimally? If that’s so, it can’t sufficiently control your car’s emissions, which is why the ECU is throwing up a P0141 trouble code. So, what can you do to diagnose and fix this P0141 error code, and what does it entail?
What Is An Oxygen (O2) Sensor, Anyway?
While we’re discussing a P0141 error code, let’s first understand the component that it relates to. So, what is an oxygen sensor, and what does it do? You can alternatively call it the ‘O2 sensor’, or the ‘lambda sensor’. As we highlighted, it’s a key part of any vehicle’s emissions control system. This sensor actively measures the amount of oxygen there is in the exhaust fumes leaving the engine.
Subsequently, it can understand just how much unburnt fuel or oxygen there is being exhausted, that wasn’t sufficiently combusted in the engine. Naturally, you wouldn’t want unburnt fuel or oxygen, as it’s an indication that your engine isn’t running as efficiently as intended. Or, it might perhaps signal that there’s a fault or issue within the engine and combustion process that requires remedying.
In the real world, ideal combustion would thoroughly ignite all (or most) of the fuel and air within the engine. Thus, not leaving behind any excess fuel or oxygen. We call this the air-to-fuel ratio. Most cars have varying ratios, depending on the engine, fuel they use, and so on. In general, they follow a stoichiometric principle of 14.7:1. Or, 1 part (gram) of fuel, for every 14.7 parts (gram) air.
If you don’t abide by that ratio (or whichever one that’s been engineered for your car, in particular), it heightens the risk of the engine running either too rich or too lean. Rich, meaning that there’s far too much fuel inside the combustion chamber given the amount of oxygen in there to ignite it with. Lean, meaning that there’s far too much air, and not enough fuel to burn with. Either way, not optimal.
How Does Your Oxygen (O2) Sensor Work?
If your engine is too rich or lean, this improper combustion can lead to severe side effects. It includes raising emissions, increasing fuel consumption, as well as adversely affecting performance. Doing so might even cause long-term (not to mention pricey and complicated) internal damage to the engine, if not fixed in time. The oxygen sensor is responsible for keeping this in check and combatting it.
An O2 sensor comprises two platinum electrodes, and a ceramic electrolyte dividing them. This is then exposed (essentially, as the tip of the sensor) to the incoming flow of oxygen in the exhaust fumes. A chemical reaction then takes place within the aforementioned tip, before some voltage is induced. It’s thus passed on as real-time feedback to your car’s central computer module, the ECU (or PCM, EMS, or ECM depending on the vehicle).
It then compares it with oxygen in the atmosphere. In doing so, the ECU (engine control unit) is more aware of what’s going on inside the engine. For example, it can try to compensate for a lean mixture by pumping in more fuel. Or, pumping in less fuel into the engine for rich mixtures. Otherwise, the ECU can use this data for ignition timing, fuel injection, and so on to meet the ideal air-to-fuel ratio.
Quite simply, the ECU reads the voltage outputted by the O2 sensor. Typically, an optimal reading is around 0.45V (450mV) if the ideal 14.7:1 air-to-fuel ratio is met. With a rich mixture (too much fuel), it might read as high as 0.9V (900mV), simply meaning that there’s 0% oxygen in the exhaust. Lean, on the flip side, may read as low as 0.1V (100mV), denoting exhaust fumes with less than 5% oxygen.
Why Does Your O2 Sensor Need Heating?
What’s crucial in understanding more about a P0141 error code is that it pertains specifically to your oxygen (O2) sensor’s heating element. So, why does your O2 sensor require heating? Well, it can only measure the oxygen content effectively if the tip of the oxygen sensor (and thus, induce voltage and feedback) when it’s hot. This high operating temperature hovers around 600°F (or about 316°C).
Anatomically, the heating element and circuity are encased inside that ceramic electrolyte. As you start your car up, this heater gets to work to warm up the oxygen sensor. As such, reducing the amount of time it takes before the O2 sensor can start measuring. In older cars that don’t have heater circuits, the O2 sensor will eventually get heated up by the hot exhaust fumes. But this might take a while.
In that span of time, usually several minutes, your ECU is left without a clue on what the air-to-fuel is like inside the engine. Hence, why this slow heating-up process leads older cars to higher emissions and fuel consumption during cold starts, while the O2 sensor isn’t functioning yet. This is no longer an issue in newer cars, however. Their heated O2 sensors can boot up and start working instantly.
This helps to reduce the amount of time the engine has to run in an ‘open-loop’ nature. The latter are occasions where the engine is forced to run a fixed air-to-fuel ratio, usually in a richer environment. It becomes necessary to keep the car running until the O2 sensor heats up sufficiently. Instead, a hot O2 sensor makes it run in a ‘closed-loop’ manner, carefully managing that ratio between lean and rich.
What Does A P0141 Error Code Mean, Then?
There might, unfortunately, be cases where that heating element inside the O2 sensor fails. Following start-up, your car’s ECU measures the amount of time it takes before the O2 sensor begins to send an accurate voltage reading on the oxygen content in the exhaust. If that ‘time lag’ for activation takes too long, the ECU analyses that there could be a failure in the heating element inside the O2 sensor.
This could be why it takes so long for the O2 sensor to start working. This prompts the ECU to start throwing error codes, such as P0141. If you plug an OBDII diagnostics tool, the accompanying trouble code’s message might read, “Oxygen Sensor Heater Circuit Malfunction (Bank 1, Sensor 2)”. This can help you pinpoint the fact that the O2 sensor’s heating element is broken, and needs fixing.
But what do “bank 1” and “sensor 2” mean? Well, we should note that most cars don’t have merely a single O2 sensor. At the very least, most cars have two oxygen sensors. In the case of P0141, it’s the second sensor (“Sensor 2”) that’s failed. We refer to Sensor 2 as the “downstream” O2 sensor, which is located around the catalytic converters, instead of the “upstream” sensor in the exhaust manifold.
Meanwhile, some other cars might have more than a pair of O2 sensors. Certain vehicles carry an O2 sensor for each engine bank. Once again, P0141 points to an O2 sensor in “Bank 1” which has been compromised. Bank 1 are cylinders in your engine with odd numbers. For example, Cylinders 1, 3, 5, or 7. Elsewhere, Bank 2 (not applicable for P0141) are the even numbers, like Cylinders 2, 4, 6, or 8.
What Causes A P0141 Error Code?
So, now we know that P0141 points to a failure in the heating element of the O2 sensor. Specifically, the O2 sensor is located by the catalytic converters (analyzing “downstream” fumes channeled through the exhaust). And, the O2 sensor that’s responsible for gauging O2 content for the first bank (Bank 1) of the engine. Likely, P0141 appears with cars that have two exhaust pipes, one for each bank of cylinders.
Some causes of why a P0141 error code comes up include:
- A faulty oxygen sensor, as the entire unit (not just the heating circuit), is now non-functioning. This is especially true for downstream sensors (Sensor 2), as they’re exposed to a lot of heat and toxic fumes inside the exhaust.
- Failing or faulty catalytic converter, which couldn’t scrub the exhaust fumes thoroughly. This might prompt the oxygen sensor to get inaccurate readings.
- Leakage of exhaust fumes, particularly those that occur before hitting the downstream oxygen sensor. Once again, this can skew the oxygen content readings.
- Bad wiring and connections on the oxygen sensor. The connectors and pins can rust, or the wires can fray. Other forms of damage include short-circuiting, being stuck in an open-circuit, or perhaps even a bad ground connection. Too much current draw might also be a plausible cause.
- Damage within the heating element. This could most likely be caused by an open-circuit or a short-circuit within the heater unit. Alternatively, either the wiring or the circuit itself has too high of a resistance for voltage to carry through.
- A bad air injection pump might also trigger this code. This is required to pump fresh air into the exhaust to force secondary combustion of exhaust fumes. As a result, helping to reduce emissions. However, the air pump can fail, or freeze up in cold weather.
What Are The Symptoms Of A P0141 Error Code?
If even a single oxygen sensor gets knocked out of commission, it’ll throw an engine’s air-to-fuel ratio out of balance. In time, the symptoms of P0141 will start manifesting, although it’s much more subtle compared to many other sensor-related issues. On top of that, it’s quite easy to ignore P0141, as this ultimately won’t cause significant damage to your engine just yet. Still, it should be treated promptly without delay.
Some of the symptoms that accompany a P0141 error code include:
- The check engine light (CEL) will illuminate in your dash. Any time the ECU gathers faults and stores error codes from your car, it’ll light up a warning light. As a faulty O2 sensor is an emissions control problem, the check engine light will be chosen to appear.
- If you were to bring your car for its timely emissions test, there’s a high risk that it’ll fail. Without a working O2 sensor, it can’t adequately manage your tailpipe emissions. Therefore, your car might be kicking out far more emissions than it’s supposed to.
- Seeing that the engine may be running rich, you’ll be able to notice steadily increasing fuel bills. With a rich combustion process, there’ll be a lot of unburnt fuel leaving the tailpipe. Given that amount of wastage, your car’s fuel consumption would slowly tick upwards, leading to lower MPGs.
- As we noted earlier, the symptoms of a P0141 are unfortunately quite subtle. In addition, symptoms aren’t always noticeable (besides a check engine light), and you could easily miss it. However, if the O2 sensor’s failure is serious enough, your car’s driveability may begin to deteriorate. You’ll start noticing misfires, rough idling, fouled spark plugs, stalling, as well as hesitation and a loss of power.
How Can We Diagnose A P0141 Error Code?
If you’ve already figured out what a P0141 OBDII diagnostics error code means, then you’re already one step in the right direction towards diagnosing the fault at hand. Of course, we still have a faulty O2 sensor heating element to deal with. In addition, we haven’t yet been able to narrow down what steps we need to undertake next. To do that, we’ll have to diagnose this fault code even further.

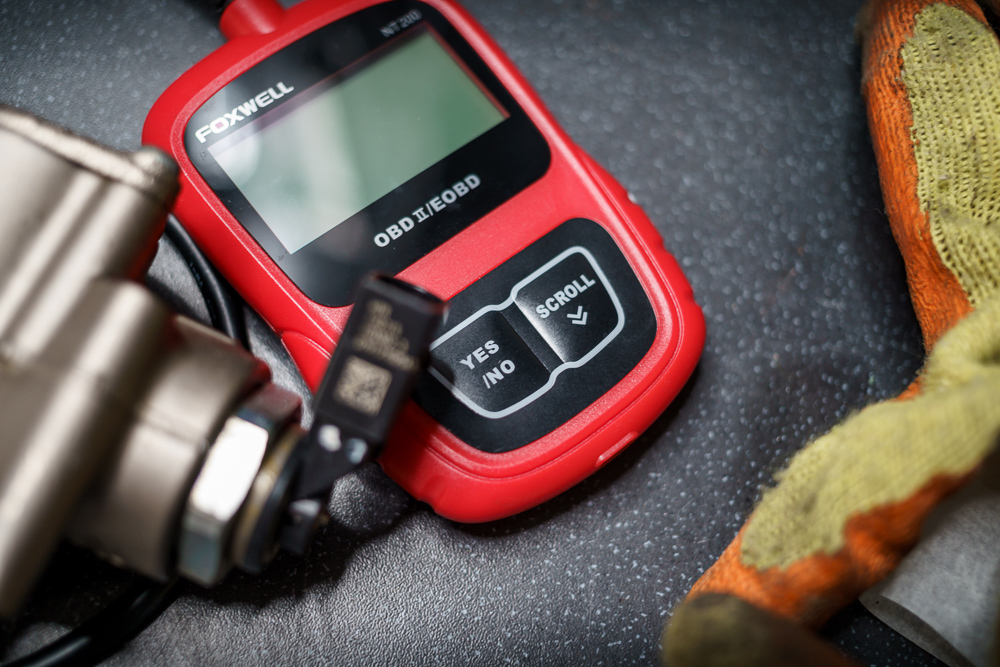

The first thing we should do is take a peek at your OBD tool. Do you see any error codes other than P0141? This should help you accurately determine and pinpoint the actual cause at hand. Is it really a fault with the downstream O2 sensor’s heating element? Or, could it be that the entire sensor is bad? Alternatively, it might be triggered by a faulty or failing catalytic converter, air injection pump, etc.
If any other error codes appear, you should try to diagnose and clear those ones first, before heading back to P0141. Should the latter still appear after your other attempts to try and fix it, we can try to diagnose the downstream oxygen sensor, and maybe even resuscitate it. Here are some guidelines to aid you in solving that P0141 error code:
Test 1: Conduct A Visual Inspection Of The Sensor

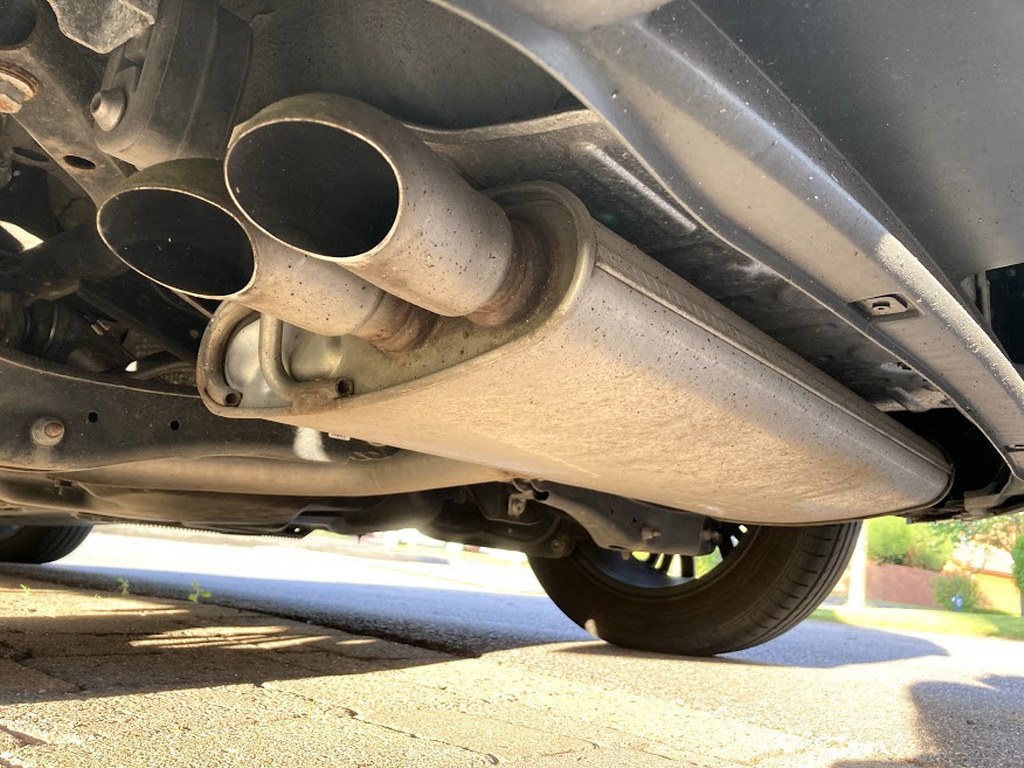

Alas, a visual inspection of the downstream O2 sensor isn’t nearly as easy as the upstream one. With the latter, all you need is to pop open the hood. There, you’ll most likely have immediate access to an upstream oxygen sensor by the exhaust manifolds. With a downstream unit, you’ll have to lift it.

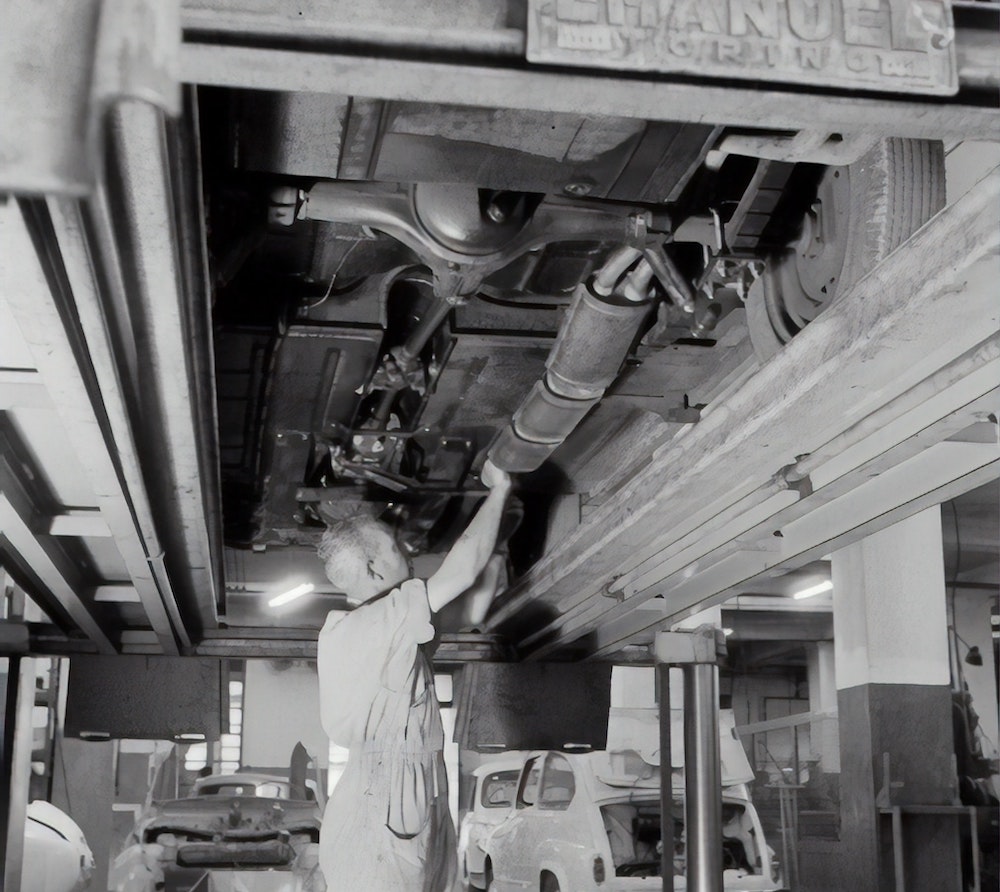

Depending on your vehicle, you could raise it up with only a jack and some axle stands. Should the catalytic converters be placed closer to the middle of the underbody, then it’s usually easier (and safer) to get it lifted with a workshop-style hydraulic scissor lift. But try it with a jack, and see if you can get close.
Once you have contact with the downstream O2 sensor (located either behind or around the catalytic converter), inspect it. In particular, check if the sensor’s wiring and connections are in good shape. Is there any corrosion on the pins or loose connectors? Or, is the wiring frayed and short-circuiting?
Electrical issues are the most common causes of O2 sensor failure, and they can impact the heating, too. You might then consider detaching the O2 sensor, and looking at the measuring element within. Is there any sign of it getting clogged up or is there visible damage to the sensor unit?
Test 2: Test The Sensor’s Electrical Supply
If there’s no sign of damage or wear to the (downstream) O2 sensor, we can try testing its electrics to see if that could clear out the P0141 error code. First, we should make sure that the oxygen sensor is reliably supplied with power from the battery:
- Make sure that your engine is turned off, but have the ignition key twisted to the ON position.
- Start by unmounting the downstream O2 sensor.
- Now, find a pink wire that leads into the O2 sensor. It’ll help if you prepare a wiring diagram beforehand, or perhaps refer to a service manual.
- To make sure that you have the right wire, there should be a “D” being marked on there. This signifies that this wire is a part of Circuit D, which supplies the sensor with electricity to run.
- Grab a multimeter, and test the current output of this pink wire. The reading should be around 10V to 12V.
- If the wire isn’t getting at least 10V to 12V, it’s likely that the O2 sensor’s fuse (in the engine bay) has blown, and you’ll only need to replace that.
Test 3: Make Sure The Sensor Is Being Grounded
Next up, we can check if the electrical systems in your car are being properly grounded. A bad ground connection could easily trigger a P0141 error code:
- We can begin by turning the engine off but leaving the ignition key in the ON position.
- Then, unmount the downstream O2 sensor.
- Now, find a black and white wire, but this time with the label, “C”. This is Circuit C, responsible for grounding the O2 sensor, and connecting to the engine’s wiring harness.
- With your multimeter now measuring volts (DC), place the red multimeter lead to the positive (+) terminal on the battery. At the same time, place the black multimeter lead to the Circuit C wire on the O2 sensor.
- Does it read 10V to 12V? If not, then it’s possible that the wiring between the O2 sensor and your car’s ECU is shorted into an open circuit. Or, and in very rare instances, the ECU itself is malfunctioning.
Test 4: Inspecting The O2 Sensor’s Resistance
Finally, and if the O2 sensor has passed Test 1, 2, and 3 without showing any faults, we can diagnose its resistance. If there’s an issue here, then your oxygen sensor is suspect in triggering a P0141 error code:
- Once again, keep your engine turned off, and the ignition key in the ON position.
- Unmount and unplug the oxygen sensor from the wiring harness altogether.
- With the O2 sensor removed, grab your multimeter, and set it to measure ohms (resistance).
- Place one multimeter lead on Circuit C, and the other lead on Circuit D.
- Finally, you can read the resistance passing through the sensor. If it’s working fine, you should be seeing a resistance output of around 4.5 ohms.
- Are you seeing the letters “OL” appear on your multimeter? This means that the heater circuit has failed, or has fried itself.
How Can You Solve A P0141 Error Code?
If you’ve determined that you have a bad downstream oxygen sensor through careful diagnosis, then how can you solve that P0141 error code for good? The great news is, replacing the downstream O2 sensor should handily fix a P0141 fault. They’re relatively simple and straightforward to replace, and it doesn’t take significant effort. Plus, it’s comparatively cheaper than most other faults in your car.
On average, O2 sensor replacements will cost you between $50 to $200. This will vary on the vehicle, as some are more accessible than others. Hard-to-reach O2 sensors will naturally incur higher labor charges, as more time will be spent on getting to it. Additionally, certain cars require special oxygen sensors catered for it. Plus, you might be prompted to replace both Bank 1 sensors together.
Should this be necessary, the total replacement cost may rise to around $500 or thereabouts. You may consider skimping on labor costs entirely and managing the entire replacement DIY style. An O2 sensor should cost you somewhere between $20 to $100. Even with minimal mechanical know-how, it’s practically plug-and-play to swap out the downstream O2 sensor, once you have access to it.
Another neat trick that you might consider before replacing the sensor outright is cleaning it. Debris can clog up the measuring element, skewing its results, and triggering a P0141 error code. Remove the O2 sensor, and carefully scrub it clean with a wire brush. Just make sure you don’t just use any aerosol-based spray. Instead, consider getting dedicated O2 sensor cleaning solutions made for it.
Final Thoughts On A P0141 Error Code
All in all, that just about rounds up our look at the P0141 error code, denoting a fault with the O2 sensor. Or more accurately, with its inner heating element. It’s not as serious of a fault (relatively speaking), and its symptoms are fairly hard to track down. Nonetheless, it’s a good idea to have it checked out and fixed right away. Or else, it could start impacting your car’s driveability down the line.
