It’s amazing to see how much easier life is with electronics. Remember back in the olden days, when diagnosing problems with a car meant getting knee-deep inside the engine bay? You’d get all greasy just to find a tiny little fault. Meanwhile, an OBD scanner can troubleshoot in an instant. But while it does make diagnosis simpler, it can also be the bearer of bad news, such as the case with the P0430 code.

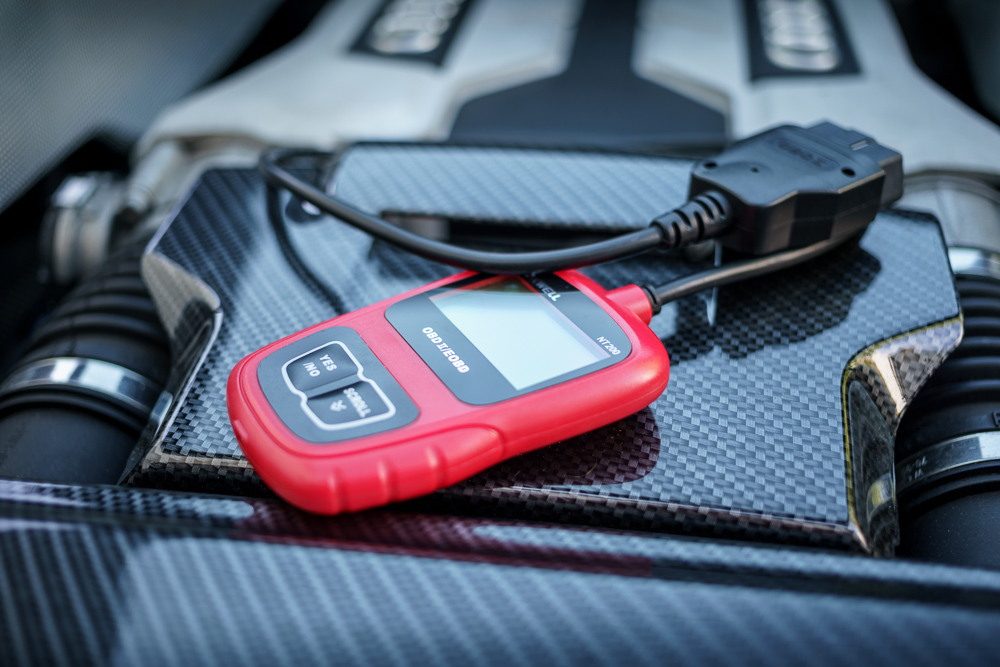

If you have one of those fancy OBD readers, it might display a message along the lines of “Catalyst System Efficiency Below Threshold (Bank 2)”. Sounds quite frightening, right? Well, worry not, as all error codes – and their subsequent problems – could always be fixed. This includes that dreaded P0430 code. So, let’s take a peek at what it means, and what you can do to solve it…
What Do You Need To Know About The P0430 Code OBD Error?
Oddly enough, that P0430 code is among the most common error codes to come up on an OBD – or onboard diagnostics – report. This trouble code can appear frequently enough, and the underlying fault is as the name message suggests. That said, not everyone understands the technical jargon of “CATALYST SYSTEM EFFICIENCY BELOW THRESHOLD (BANK 2)”. So, let’s break it down.
Upon seeing the P0430 code as an error on your OBD scanner, it points to a fault within your car’s catalytic converters, where it’s not running as efficiently as it should. To put this simply, it means that the catalyst system is releasing more harmful emissions and gases out of the tailpipe than the usual amount. To better understand what it means, it might help to learn more about the catalytic converter.
Every modern automobile has a catalytic converter. As we all know, an internal combustion engine can emit a bucket load of harmful gases as it exhausts out of the combustion chamber. These gases are predominantly carbon monoxide, hydrocarbons, and nitrogen oxide. To try and minimize – or even better, eliminate – these emissions from exiting into the air around us, we have the “cats”.
Otherwise called a three-way catalytic converter, it’s installed at the tail-end of your car’s exhaust system. Within this ‘converter’ are ‘catalysts’, which are precious metals that can react chemically with those aforementioned gases. It oxidizes the carbon monoxide and hydrocarbons, and reduces them into carbon dioxide and water. Meanwhile, nitrogen oxide is catalyzed into nitrogen.
What Does It Mean By P0430 Code?
All of those emissions are relatively harmless, thanks to the magic of catalytic reactions with those precious metals. For this reason alone, modern automobiles and their catalytic converters are far less polluting – by up to a whopping 90% better – than older, non-cat cars. But what does it mean by “BANK 2”? In this scenario, it refers to the O2 – or oxygen – sensors mounted on either bank of cylinders on your engine.
A V8, for example, has two banks of four cylinders, where the cylinders are marked by offset firing orders…
- Bank 1 – Cylinders 1, 3, 5, 7
- Bank 2 – Cylinders 2, 4, 6, 8
Understanding which cylinder bank also helps us narrow down the location of the sensors. If we’re talking about O2 sensors, they can be marked as “Sensor 1” and “Sensor 2”. The first sensor would be located near the engine, while the second sensor can be found near the back of the exhaust…
- Sensor 1 – Upstream O2 sensor, placed before the catalytic converter at the front
- Sensor 2 – Downstream O2 sensor, placed after the catalytic converter at the back
For the P0430 code, we should look more closely at the second sensor inside the exhaust system, as it sits within the catalytic converter. It spits out a P0430 DTC (diagnostic trouble code) as it’s sensed that something’s amiss with the catalytic converter. It might be running as peachy or is as efficient at scrubbing away emissions and harmful gases as it used to be.
If by some chance, you’ve picked up a P0420 error code instead, they both share similar concerns with your catalytic converters. Only this time, the source of the issue was picked up by sensors in the first bank of cylinders (Bank 1), instead of Bank 2.
What’s Causing You To See The P0430 Code?
It’s quite clear then that the P0430 code that your OBD reader is picking entails some troubles with your catalytic converters. Nevertheless, this diagnostics error code can come up due to numerous other faults, too. Here are some of the most common triggers for that P0430 code…
- Problems with your car’s fuel system, or perhaps due to contaminated fuel.
- A faulty or damaged O2 sensor, thus sending your diagnostics reader false and incorrect readings.
- Loose connections between the O2 sensors and catalytic converters have corrupted the data signals.
- Defective or clogged up catalytic converter, hence resulting in a loss of performance and efficacy.
- Internal engine damage, which may cause your car to consume and then burn away motor oil, or if the fuel has been contaminated with oil.
- Your head gasket might be leaky, and it could’ve led to some secondary damage to the catalytic converters.
- A compromised exhaust system or its components, which may leak exhaust fumes.
- Leaking or damage found by the air intake, or with the mass airflow sensor (MAF).
- The fuel injectors might be leaking too much fuel during the combustion process.
- Improper ignition – or spark – timing, leading unburnt fuel to exhaust out.
- Faulty spark plugs, which may result in incomplete or failed combustion for one or more cylinders.
- A damaged coolant temperature sensor, and could lead to your engine running warmer than normal.
- High fuel pressure, as it forces more fuel into the combustion chamber than needed (running a rich air-to-fuel ratio), and produces increased emissions.
- Engine misfiring, resulting in incomplete combustion, and it could damage the catalytic converter.
- Oil or coolant leaking, and then seeping or dribbling into the exhaust system.
What Are The Symptoms Of P0430 Code That You Need To Look Out For?
Ah, but let’s say you don’t have an OBD scanner on you, how can you tell that your car is definitely suffering from the same set of issues as those exhibited by a P0430 code? Are there are tangible or visible symptoms that you could spot, rather than having to plug in a diagnostics computer? Indeed, there are a few tell-tale signs that your catalytic converter might not be running at its peak.
Granted, the appearance of these symptoms might not be uniform. At times, you might have a few of them showing up at the same time. Or, you might notice just one, and only under a set of unique circumstances. It’ll depend on your driving style, and the conditions of the powertrain and exhaust at the time. For example, you might sense these symptoms at higher speeds, and so on…
- The check engine light will turn on, as it’s detected emissions, exhaust, or engine-related faults.
- The engine will continue running, but it’ll idle, accelerate, and drive roughly.
- You can feel a loss of power and performance, especially at speed. This happens as the catalytic converters get clogged up, and can’t sufficiently exhaust your engine of fumes.
- Poor fuel economy, as your car’s powertrain control module (PCM) or engine control module (ECM), can’t adequately regulate the combustion process.
- A rotten egg scent could be smelled, and it’ll get stronger as you keep putting off this problem.
- Your vehicle will fail its emissions test, as the catalytic converters can’t scrub enough of the pollutants out of the exhaust fumes.
- High temperatures are felt, especially underneath the vehicle – you can diagnose this with a catalytic converter temperature test.
- You can see a thick plume of black smoke exiting the tailpipe.
How Can You Diagnose A P0430 Code Catalytic Converter Issue?
If you’ve noticed any one of the above symptoms, you must get your car looked into as soon as possible. Although, most technicians would say that by the time you’ve seen the P0430 error code on an OBD diagnostics tool, it’s already too late. Once the trouble codes appear, the damage done to your catalytic converter might have been far too serious already, and it requires a replacement.
Otherwise, the old and now-compromised catalytic converter could cause further damage or bring up other problems elsewhere. These include issues such as poor acceleration, rough idling, failed emissions test, or decreased fuel economy. But is there a way to make certain that your catalytic converter is truly the one unit to blame when the P0430 code flashes before your eyes?
We did mention how faults in other parts of your car could prompt it to appear, as well. Commonly, catalytic converters can fail owing to natural degradation and wear, physical damage, overheating, contamination, or clogging. Among them, physical damage is the most likely cause of failure for the catalytic converter for most people. In that case, we can inspect it to make sure.
Here is a step-by-step guide on diagnosing an error P0430 code, just to see if the catalytic converter is really what’s causing it…
Diagnosing P0430 Code Step-By-Step
- The first step would be to verify that it is indeed an error P0430 that you’re facing. Plug in an OBD reader, and double-check to make sure this is the case, or if there’s an issue elsewhere. If there’s another error code, that should be resolved first before moving ahead to diagnosing the P0430 DTC.
- Once that’s done, go ahead and inspect the catalytic converter. The insides of the catalytic converter should contain a fire element. So, bang against the catalytic converter with your palm or a rubber mallet. If the fire element has been crushed or is cracking, you can feel the loose pieces of it rattling.
- The following diagnosis checks can only be done if you have an OBD scan tool, as you’ll have to manually trigger a set of functions to test the exhaust system.
- With your OBD reader in hand and plugged in, you can check and see if the downstream sensors are working. You can set the OBD reader to its ‘Rich’ condition, and a small amount of carburetor cleaner will be sprayed down the vacuum hose. We can then wait and see if the downstream O2 sensor in the rear could pick that up,
- Lastly, let’s try to retune that downstream sensor once more. On your OBD reader, induce the powertrain to run in its ‘Lean’ condition. You can expedite this process with a removal of a large vacuum hose. Now, let’s take a peek at whether the rear O2 sensor could pick up and report this problem.
- An alternative to this is using a multimeter. With the car running at its optimal temperature, use that multimeter to inspect the voltage reading of the downstream O2 sensor. It should normally be a steady reading of around 0.45V. If it keeps jumping between 0.1V and 0.9V, then it proves that there are issues with the catalytic converter.
Some Other Things To Check Out While You’re There
But what if the diagnosis didn’t reveal much? More often than not, experts would say that 99% of the time, a P0430 code (or P0420) should tell you if the catalytic converter is faulty. If so, then you’ll have no choice but to have it replaced, as expensive as it may be. That said, there are a few other things to inspect closely while you’re there.
One of the most common mistakes that people – including the professionals – often make, and that’s disqualifying any hope that other mechanical or electrical problems could be the reason for the code to show up. Catalytic converters aren’t cheap, after all, so it’s prudent to conclude if a simpler and cheaper fix may be possible. There’s a possibility that something else might be at fault…
- Check if you could see or smell an exhaust leak away from the exhaust pipe. Moreover, be sure to look into the condition of the intakes and MAF sensor.
- Remove and inspect the spark plugs thoroughly to be certain that they’re working properly. Those misfires and poor performance could be the result of a faulty spark plug.
- Inspect the motor oil, fluids, filter, and other replenishable items. These should be maintained and replaced regularly when the time comes.
- Look at the O2 sensors, and see if they’re good. Otherwise, you’re recommended to replace the O2 sensor at the same time that you’re getting a new catalytic converter.
How Can You Fix These P0430 Code Problems, And How Much Would They Cost?
Having been made aware of the many possible causes, symptoms, and diagnosis methods for P0430 code OBD errors, how can we plow on ahead to get it fixed? As we’ve highlighted before, although the P0430 may be blamed on many different parts of your car pertaining to the engine or exhaust, its most likely culprit remains to be the catalytic converters. They’ll need to be swapped out.
They are, unfortunately, quite expensive, owing to the number of precious metals inside them. This is why many owners dread seeing that P0430 error code. The cost of a new catalytic converter will vary widely depending on the vehicle you own and drive. For instance, a heavy-duty pickup truck with a big V8 emits far more pollutants out of its tailpipe than a tiny, economical, city car.
As such, an F-150’s catalytic converters could easily eclipse in expense compared to a Smart car. On average, you can expect a replacement catalytic converter to set you back between $400 to $2,400. That accounts for both hourly labor rates (this is one job that you can’t easily DIY, I’m afraid), and the cat itself. As you’re proceeding with that, you’ll need new sensors to be calibrated to it.
A new O2 sensor can be found and installed for between $200 to $300. That said, you could get away, depending on the severity of the P0430-related issue, by welding the exhaust. This fairly simple repair leaves you with a more affordable $100 to $200 bill. However, you’ll need to get the local workshop’s expert advice if such a repair is suitable for your car, or if the problems run deeper.
Catalytic Converter Replacement Costs Sample Breakdown
- Ford F-Series – Parts: $720-$2,030/ Labor: $180-$230/ Total: $900-$2,260
- Chevrolet Silverado – Parts: $520-$920/ Labor: $70-$90/ Total: $590-$1,010
- Honda CR-V – Parts: $410-$820/ Labor: $120-$160/ Total: $530-$980
- Ford Focus – Parts: $510-$1,360/ Labor: $100-$130/ Total: $610-$1,490
- Ford Fusion – Parts: $510-$1,360/ Labor: $100-$130/ Total: $610-$1,490
- Toyota Camry – Parts: $870-$1,300/ Labor: $100-$130/ Total: $970-$1,430
- Toyota Corolla – Parts: $600-$1,400/ Labor: $60-$80/ Total: $660-$1,480
- Honda Civic – Parts: $490-$1,520/ Labor: $60-$80/ Total: $550-$1,600
- Honda Accord – Parts: $340-$760/ Labor: $80-$100/ Total: $420-$860
- Nissan Altima – Parts: $490-$960/ Labor: $150-$190/ Total: $640-$1,150
Can You Save On Replacements Costs With Simple Repairs?
Given how expensive this whole endeavor has been, is there a shortcut that you can take to soften the blow on your wallet, just a tiny bit? It turns out, that there are indeed some tips and tricks that we can offer you. Although, do take a grain of salt here, in that these “cheats” may not necessarily work at getting your catalytic converter back in good shape.
At the end of the day, a brand new unit might be in order. However, it does prove that yes, there are alternatives to getting a fresh cat swapped in. Moreover, completely replacing an entire part isn’t the end-all-be-all solution. Here are some surprisingly cheap and simple ways that you can try and hopefully fix that P0430 code…
1. Use A Catalytic Converter Cleaner
A lot of the reasons why your catalytic converter might prompt the P0430 code to appear are based on how dirty the cats are. After some time, they can get clogged up or blocked entirely. While fixes for this can be limited at most, you might still be able to salvage your catalytic converter by using a cleaning solution. These specialty catalytic converter cleaners cost around $20 or thereabouts.
So, it’s clearly a cheap fix, for what could otherwise be an expensive replacement. But, it’s worth a shot. Granted, it won’t work if your exhaust and cats are beyond saving, or if they’re far too filthy to clean. All you need to do is pour the cleaner into the fuel tank. Be careful to get a cleaner based on the type of fuel you use. Some cleaners, though, can work with both gasoline and diesel cars.
Once you’ve added however much of the cleaning solution as is recommended, take your car out for a spin. Going out for a drive should enable the cleaner to circulate for long enough to clean both the exhausts and catalytic converters. Don’t overstress your car, however. We’d say a 30-minute drive, and keeping your engine hovering at around 3,000RPM the whole way through should do the trick.
2. Washing The Catalytic Converter

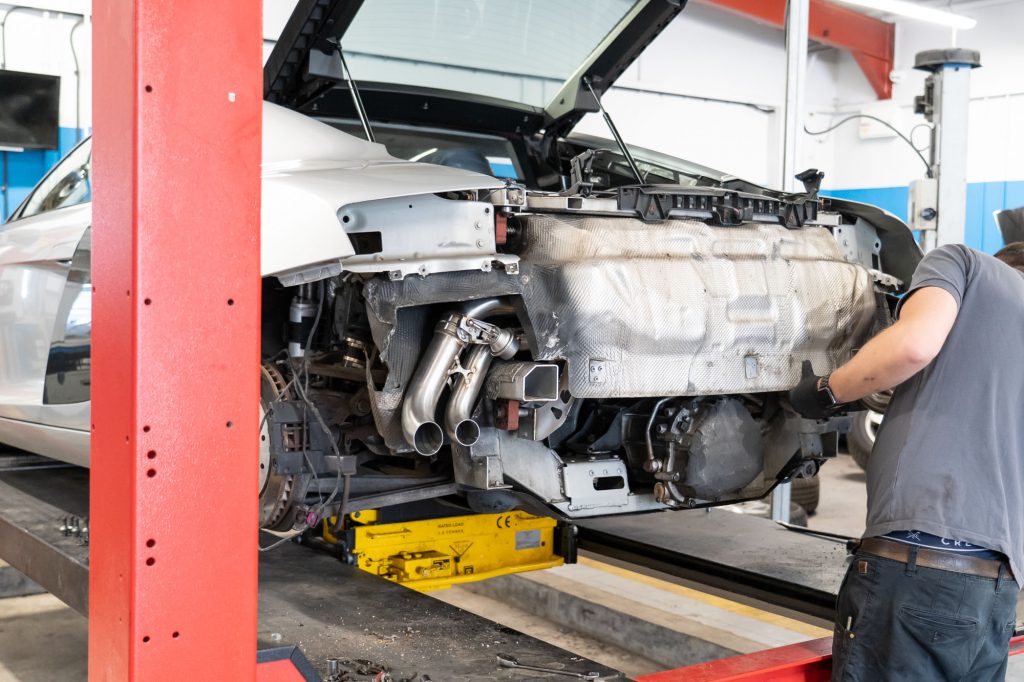

If that cleaning solution didn’t work, you could step it up a notch. This will require a bit of DIY skills and experience, as we’ll have to remove the catalytic converter. You may refer to your manual to see how you may go about removing the cats. The most difficult part is trying to unbolt it from its cradle. Should this prove too difficult, you can have a mechanic remove it for you.
Once it’s been removed, give it a little shake. As with the point we made earlier, if there’s a rattle, it means that the inner walls of the catalytic converter are in bits. In this case, you’ll have no choice but to replace it. Nonetheless, and if there’s no rattle, you can start by cleaning the outer body of the converter. Next, prepare a large tub filled with hot (not boiling) water, and degreaser.
It should be sufficient to just let it soak in there for at least 10 hours. This will give it ample time for all the debris to unclog and wash away. You could expedite this process by using a pressure washer. You could then pressure wash the insides of the catalytic converter, as well as the inlet and outlet pipes. Although, don’t overdo it with the washer, and turn the pressure all the way down.
Understanding and Diagnosing the Engine Code P0430
- Diagnostic Trouble Code (DTC) P0430 indicates that the catalytic converter’s efficiency in bank 2 is below the threshold.
- The catalytic converter’s function is to eliminate or reduce harmful emissions, and it has a catalyst efficiency monitor (CEM) that uses two oxygen sensors.
- Faulty catalytic converters and oxygen sensors are the most common causes of the P0430 code, but other issues can cause it too.
- Symptoms of a defective catalytic converter include the engine control lamp (MIL) lighting up, a poor throttle response, poor fuel economy, rough engine running, the failure of an exhaust emission test, and a strong exhaust odor from the exhaust pipe.
- Visiting a car repair shop for a diagnostics check can cost $60-$100, but using an OBD2 Scanner can cover more than what a professional automotive scanner costing over $3,000 can cover.
- An OBD2 Scanner is the only tool needed to diagnose and clear the P0430 code that is generated and stored in the Powertrain Control Module (PCM) of the car.
- Understanding the interrelationship of OBD-II (OBD2) systems and catalytic converter functions is crucial in determining the root cause of the P0430 problem and finding the right solution.
- P0430 issues are not endangering the vehicle’s safety systems, but they could seriously damage the catalytic converter.
- The average cost of repairing a catalytic converter can range from $1,000 to $2,500, with a catalytic converter replacement starting at around $2,000 (just like the 2005 Ford Five Hundred catalytic converter or the 2003 Lincoln Town Car catalytic converter, as well as the cost to replace catalytic converter Honda CRV), and an O2 sensor replacement costing $150 to $500.
- A catalytic converter is an exhaust emission control device that plays a major role in the reduction of pollutant gases, using a chemical reaction to convert toxic hydrocarbons (to find out more, check out our guide on what is inside a catalytic converter), carbon monoxide, and nitrous oxides emitted by the internal combustion engine into harmless gases.
P0430 Code – Final Thoughts
This then, summarises our look at P0430 code causes, associated symptoms, problems, and its fixes. Yet again, it goes to show how valuable our catalytic converters are. It’s no wonder why thieves are so keen to jack it at every turn. It has used the best of human sciences in preventing the harmful and toxic emissions that our internal combustion engines create from penetrating into the atmosphere.
The side effect of this technology is that it’s not cheap to repair or replace. Oftentimes, seeing that P0430 code is a sign that it might already be too late to save your catalytic converter. Nothing short of a completely new unit will suffice, and it can cost upwards of $2,000. However, don’t despair just yet, as you might – it’s a long shot, but still – be able to save those cats with a good wash.
