Have you noticed a check engine light and you diagnosed the code P1101? Well, if that is the case, then you are at the right place because this article will be all about it. We will dive deep into diagnosing and troubleshooting this problem.
Having a situation like this with a check engine light can be a real pain to deal with. Mainly because you don’t have a clue why this light is illuminated on the cluster. You could only guess if you don’t want to perform proper diagnostics on the car.
And for this, you need to learn how to troubleshoot. If you want to become a successful car technician, you need to learn how to troubleshoot issues. I’m not talking here about being a mechanic and doing a thing or two.
But you need to learn how to understand how the car breathes and feels in order for you to uncover problems like these. And for this, you need to learn how each component communicates with another and what are the symptoms and causes of each issue. And we are going to help you out with that.
First, we will cover the basics of car diagnostics and the tools you will need. Then we will dive into the P1101 code meaning and will understand more about this code. Then we will cover the causes concerning this code as well as the symptoms. After, we will learn how to diagnose and fix the problem. So, if you want to learn more, follow along.
Now before we dive into the P1101 code and its meaning. Let’s first learn more about car diagnostics in general. I bet there are people who are reading this article and don’t know much about the basics when it comes to car diagnostics and wants to learn more about how it’s done and the tools that are required to do it.
Nevertheless, car diagnostics is a very complex topic. Modern cars are so packed with sensors and other high-tech components that solving a problem on a car has become a difficult affair.
Long gone are the days when mechanics solved problems by tweaking the carburetor a little bit when the air to fuel mixture was wrong and replaced the spark plugs and wires when there were problems with the ignition.
Modern cars do not have any of that. They implement a lot of high-tech components that are really expensive to purchase and replace. So, you need to build up your skills and try to understand these things better.
Like in this case with the P1101 code, you need to understand what it means and then learn more about the conditions under which this code appears. Then look at the possible causes and symptoms that are connected to it. Everything is important.
You will also be needing some tooling. Like a trusty OBD2 scanner to see if you get any other codes besides this one as well as a multimeter tool to measure the values that you get from these specific sensors that we will discuss.
That’s why follow us when we explain and read carefully till the end. Now let’s begin elaborating on this P1101 code.
Intake Air Flow System Performance
Now as we covered the basics of car diagnostics and the tooling that you will be needing to perform this task, let’s now focus on the problem. And that problem is the P1101 code that you got. So, what does this code means?
Well, in simple words it means that you have a problem with the MAF sensor. This sensor is the mass air flow sensor. Later in the article, we are going to elaborate more on this sensor and we will learn how it works.
What is important for now is the pure definition for this DTC. And that is “P1101 Mass Airflow Sensor Out Of Self Test Range”. What could this mean?
This means that the computer has detected some discrepancy with the voltage that goes in this sensor.
The PCM is running tests all of the time while the car is running and after testing this component. It detected that the voltage of this specific MAF sensor is lower or greater than it should be. This means that something is wrong and the test has failed. So, you are greeted with the check engine light on the cluster. Should you be worried about this?
The answer is yes, you should be worried about this problem and you should try to sort it out as soon as possible because you can face some of the symptoms that are connected to this issue sooner or later. Even if the car doesn’t show symptoms at the exact moment, it will sooner or later when this MAF sensor is broken. But what is the MAF sensor in general? Let’s cover that quickly before we cover the causes for the P1101 Chevy Cruze.
What Is A MAF Sensor?
Now before we dive into the causes of the P1101 Chevy Cruze code, let’s first learn more about the MAF sensor. Knowing the basics will help you understand the problem a lot better and possibly sort it out.
Nevertheless, the MAF sensor is a special sensor that is very crucial for the proper engine work. The MAF abbreviation stands for Mass Air Flow. This sensor basically measures the mass of air that enters the intake manifold.
Without this sensor, your car’s PCM will never be able to maintain the air to fuel ratio and the engine will work really bad. As in your case probably, since your sensor is not functioning as it should. When this is the case, you will face some difficulties which are also known as symptoms. Later in the article, we will go through the symptoms of a bad mass air flow sensor.
What is important for now is to learn where this sensor is located. And that is usually right before the throttle body of the engine.
First comes the airbox that contains the air filter, then the intake snorkel that goes to the throttle body, and somewhere after the airbox, the MAF sensor is mounted.
You will instantly recognize it since it is really obvious. You will notice the connector from the side and how the wire goes into the wiring harness of the engine.
Overall, this is everything when it comes to the MAF sensor. The important thing is its role. And that is measuring the flow of air into the intake manifold. If this process doesn’t work as it should, you will get the P1101 Chevy Cruze. But what are the real causes behind this? Let’s find out next.
Causes For P1101 Chevy Cruze
Now as we cleared the definition of the P1101 code and the MAF sensor, now let’s focus on some other aspects.
Namely, the causes for the P1101 Chevy Cruze, what are the possible causes for this error code on your Chevy or any type of vehicle? Let’s elaborate on them in tiny bits so you understand better what could be the cause.
1. Clogged Or Dirty MAF Sensor
The first and most obvious cause for the P1101 Chevy Cruze code is a clogged or dirty MAF sensor. A lot of people panic when they see some codes connected to this sensor and in fact, there is no need to do so.
Sometimes these sensors get really dirty and get clogged. This will hurt their performance and they will malfunction. So, the first thing that you want to check is the condition of this sensor, and if it’s dirty, give it a good cleaning with compressed air.
Make sure that you remove everything. Also, replace the air filter as well if it’s dirty. This will guarantee that you will do a good job.
2. Faulty MAF Sensor
The second very probable cause for a P1101 Chevy Cruze code is that the sensor is faulty. The component basically failed and needs to be replaced.
This is one of the scenarios that you don’t want because these MAF sensors are not cheap. That’s why if you are not sure if it’s faulty, then the best thing would be to bench test it with a multimeter and see if it works or not. That’s why you will be sure whether you need to replace it or not.
If the sensor is faulty, go for an OEM replacement part. Don’t get cheap replacements because they can often malfunction really fast after installing them or not work at all.
3. Bad Wiring Harness
The third most probable cause for a P1101 code is the problem with the wiring harness itself. There are cables that travel from the PCM to this specific sensor. And these cables can melt if exposed to heat and short.
Also, rodents can damage cables and create a big mess in the engine bay. So, if you have this code on your car. You might want to check the wiring of the MAF sensor as well and see if it’s any good. If it is bad at a certain point, you should fix the problem.
4. Bad Electrical Connector Of The MAF Sensor
The fourth most probable cause for the P1101 Chevy Malibu code is a bad electrical connector. Sometimes this connector that the MAF sensor is attached to can fail and this can cause a malfunction in the system.
Precisely this problem with the inadequate voltage that your sensor gets. The power output needs to be checked from both connectors.
Also, check the connectors for rust development. This could greatly impair the sensor from running correctly on your vehicle. For these tests, you will need a multimeter and a few tutorials on YouTube to understand how it is done the right way. These are one of the essentials when it comes to troubleshooting cars.
5. Vacuum Leaks Before Or After The Sensor
The last probable cause for the P1101 Chevy Malibu that we are going to cover is the situation when you have vacuum leaks.
Vacuum leaks, especially before and after the MAF sensor can easily make it malfunction and trigger some of these codes that are associated with this component.
When you have vacuum leaks, you will highly likely get a P0171 or P0174, depending much on which bank of the engine the leak comes from. That is why you should always look into other codes that you get and check them thoroughly.
You need to inspect every aspect before you jump to a conclusion and replace the MAF sensor. But what are the symptoms of a bad mass air flow sensor that can trigger the P1101 code? Let’s elaborate in the following chapters.
Symptoms Of Bad Mass Air Flow Sensor
As we covered the causes for the P1101 Chevy Malibu code, let’s now focus on the symptoms of a bad mass air flow sensor. Since we concluded that this is the component that has fault for this code, there could probably be some symptoms connected to it.
As we all know, when a component is faulty, it shows symptoms. And when the MAF sensor doesn’t work as it should, there will definitely be some problems. So, let’s elaborate on them.

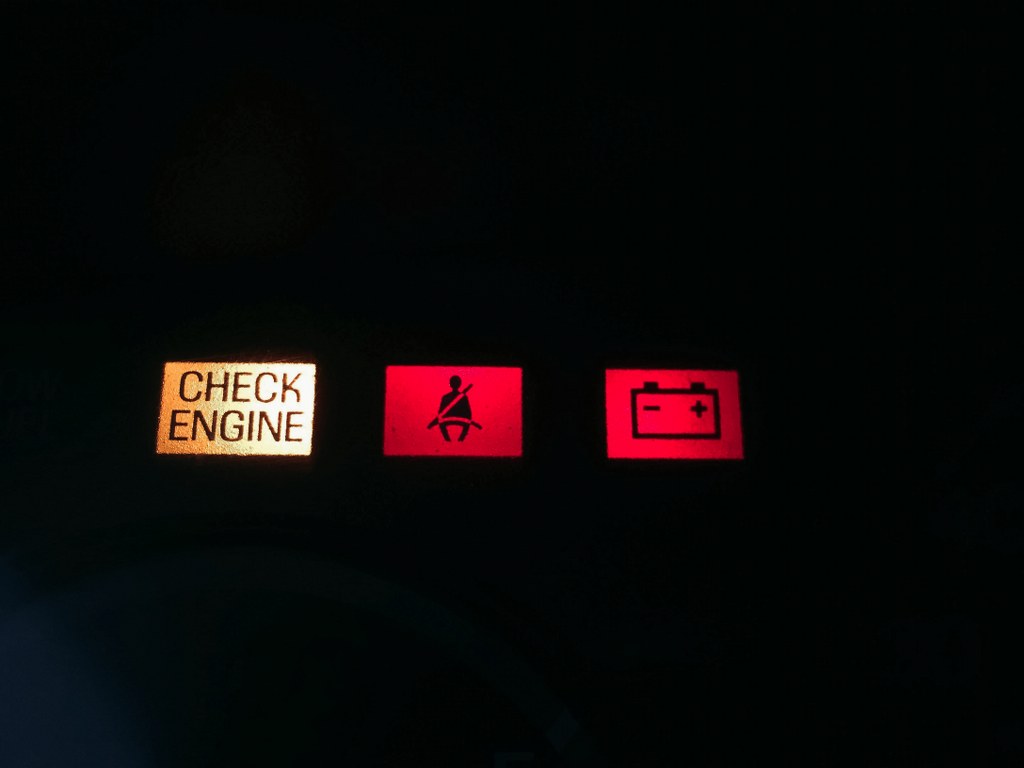

1. Check Engine Light
The first and most obvious in our list of symptoms of bad mass air flow sensor is the check engine light. Since you are here, you are probably aware of this light and diagnosed the P1101 Chevy Malibu code.
But that’s not all, whenever this light turns on, there could also be other codes that can relate to this problem. For example, you can get a P0171 or P0174 if your engine is running lean because of a faulty MAF. There could also be P0101, P0102, or P0103. Depending on the issue you are having. This is why troubleshooting the sensor and the wiring is essential to determine what is wrong.
2. Lean Or Rich Air To Fuel Mixture
The second in our list of symptoms of bad mass air flow sensor is the situation with the air to fuel mixture.
Understandably, when this sensor is not working correctly, there could be problems with the measurements. So, the computer might be having a problem adjusting the air to fuel mixture.
The situation can be lean if there is too much air in the mix, or rich if there is too much fuel in the mix.
3. Engine Misfires
The third in our list of symptoms of bad mass air flow sensor is the situation with the engine misfires. The engine will simply not be happy when the sensor is not measuring the air to fuel mixture correctly.
So, you can experience frequent misfires on that specific bank where this MAF sensor is located in the engine.
4. Engine Runs Rough On Idle
The fourth in our list of symptoms of bad mass air flow sensor is the situation when you have rough idle.
In this situation where there is bad air to fuel mixture, the idle could be uneven and the RPMs will fluctuate. Not an ideal situation. This rough idle is often associated with frequent misfires of the engine. So, beware of this symptom on your car when you have a P1101 Chevy Malibu code.
5. Engine Is Down On Power
The next in our list of symptoms of bad mass air flow sensor is the situation when the engine is down on power. As we mentioned previously, the engine will not be happy at all under these circumstances.
It will not produce the same power as you are probably gotten used to. When this sensor is not working as it should, you could lose a ton of power, and driving this car could be a nightmare because of the constant stalling of the engine or poor performance. That’s why you need to sort this issue with the P1101 Chevy Malibu sooner than later.
6. High Fuel Consumption
And the last in our list of symptoms of bad mass air flow sensor is the problem with the high fuel consumption.
Whenever the MAF sensor is not working and you get the P1101 Chevy Malibu code, you will have a problem with high fuel consumption. But why is this the case?
Well, this is the case because the computer will not read the air input and will try to adjust the low air by adding a lot of fuel into the mix. This will attribute to rich air to fuel mixture as well as the increased fuel consumption of your car.
You can expect your fuel economy to drop significantly as well as the power output of your car. This is why the MAF sensor plays a huge role in our cars and the P1101 code should not be ignored. But how you can diagnose and fix this problem? Well, that’s what we are going to cover next.
How To Diagnose & Fix P1101?
Now as we covered the causes and the symptoms of the P1101 Chevy Malibu code, let’s move to diagnose the problem and learn how this process is done the right way at home using a scanner and a multimeter tool. How you can do this work? Let’s elaborate.
The first thing you need to do is to clear off all the codes and start fresh. Focus only on the codes that stick. If the P1101 code is one of these codes, you need to dive into troubleshooting.
First thing first you will need to check the MAF sensor and the air filter. Replace the air filter if dirty and clean the MAF sensor if it’s dirty. These two things are the simplest things you can do.
If this doesn’t help, you will need to dive deeper and grab a multimeter. On the connector usually, there is one ground wire, a sensor ground, a signal wire, and a power wire. You need to make sure that all of them work.
You basically need to use the multimeter and find all of these and see what type of signal they produce. If everything is good with the wires, move on to the MAF sensor itself.
For this, you will have to start the car and while the multimeter is connected you need to see what readings you will get. If the readings are good, then the sensor is ok. If not, you will have to replace it. The whole process of testing the wires and the sensor you can check in the video above.
And the last thing when it comes to the P1101 Chevy Malibu code is to check for vacuum leaks. For this, you will need a smoke machine to see if there is any leak in the intake.
Cost To Fix The P1101?
We have covered the diagnostic process when it comes to the P1101 Buick Encore code. Now let’s see how much it will cost you to diagnose and sort this problem at a shop?
The base diagnostics price for this job is around $120 more or less. So, you need to be prepared to pay this amount only to diagnose the issue.
The sensor itself is a bit on the higher side. A genuine sensor for your car will cost you about $350 on average. For some cars, prices go even higher than this.
P1101 Code: Facts You Need to Know
- The P1101 trouble code appears when the Power Control Module (PCM) detects a fault within the Mass Air Flow (MAF) sensor system.
- The MAF sensor measures the airflow in the engine when running, and a voltage reading from 0.46 volts to 2.44 volts is expected during the KOER test.
- Symptoms of the P1101 code include poor engine performance, erratic idling, intermittent power from the engine, reduced power while driving, and reduced fuel economy.
- Causes of the P1101 code can include a faulty MAF sensor, faulty connectors or wiring, air restrictions or blockages, poor electrical connection within the MAF sensor circuit, contaminants like oil within the MAF sensor elements, corroded or damaged wiring, or a defective or damaged PCM.
- The P1101 code won’t prevent safe operation of your car, but can cause rough running, decreased fuel economy, and prolonged driving can lead to internal engine issues.
- Driving with a P1101 code is not recommended as it can cause further damage to the engine’s internal components.
- Diagnosis of the P1101 code involves a qualified technician visually inspecting the MAF sensor harness wiring and checking the air filter for any debris.
- The technician will then clear the code and run a scan test to see if the code returns, and if it does, will remove the MAF sensor and inspect it for cleanliness.
- A smoke test is performed to check for leaks before or after the MAF sensor within the vacuum system, and the technician will test the MAF sensor for reference voltage and ground signal using a multimeter.
- If the P1101 code still persists after these steps, the technician will check the continuity of the MAF sensor and its related circuits for continuity with the battery ground and between the MAF sensor and the PCM.
Conclusion To P1101
In this article, we have covered quite a bit when it comes to the P1101 code. We learned the causes of why it appears and the meaning of this code. All leads to a bad MAF sensor.
Then we covered the causes for this code, the symptoms, and the diagnostics. And lastly, we covered the cost involved in this work.
F.A.Qs For P1101
Now let’s answer some frequently asked questions.
What Does P1101 Code Mean
This code means that you have a problem with the MAF sensor. Meaning that the sensor is running on higher or lower voltage than the factory recommended spec. This indicates a problem with the MAF sensor or possibly with the connectors or the wiring.
Bad Mass Air Flow Sensor No Check Engine Light
This can also happen sometimes. But not very often. You might not see a check engine light but there will be codes in the system that’s for sure.
How To Test A Mass Air Flow Sensor
A simple way to test this sensor is to use a multimeter and alligator clips. First, set the multimeter to volts. Then you need to insert metal clips into the connector and then put the probes on these metal clips. After that start the car. A good MAF sensor should produce 1 or 0.8 volts at idle. The more you rev it, the higher it will get. If there is no voltage or is too high, then the sensor is bad.
How Do I Fix Code P1101
You can fix this code depending on the cause of the problem. If the MAF sensor is bad you will have to replace it or clean it if that helps. Then the wiring needs to be checked as well as checking the system for vacuum leaks.
