Vacuum Leak Repair Cost

Vacuum Leak Repair Cost – How Expensive Is It To Fix?

Are you having a vacuum leak in your car? That’s really unfortunate because vacuum leaks can be extremely tricky to diagnose. Since they develop some symptoms that you would scratch your head until you understand. But if you know what is causing the vacuum leak, you probably want to learn what is the vacuum leak repair cost. If that’s the case you came to the right place. We will tell you everything you need to know about this problem and more.

Problems like this can happen every once in a while, especially if you have an older model. Cars, as they age, can develop some problems like this one. This problem can be particularly tricky to diagnose and you should ramp up your skills to get this one right. But what skills do you need? You need to learn how to troubleshoot and learn how to connect all the dots in your head and learn all the ins and outs when it comes to internal combustion engines. But how?

We are going to help you out with how to get this problem right. Since you are looking at the vacuum leak repair cost, you have probably diagnosed the problem. But if you didn’t, we are going to help you out. This article will be perfect for beginners who are still in their early stages of understanding how cars work. That’s why you shouldn’t worry about anything.

The team at Motor Verso are willing to help you with your issue for free. Visit our new forum here and tell us about your issues, and we will do our best to help you.

In this article, we are going to learn everything you need to know when it comes to vacuum leaks. We will cover what is a vacuum leak, the symptoms, and the causes for a vacuum leak. Then we will look at the vacuum leak repair cost. So, buckle up, because it will be a long ride.

What Is A Vacuum Leak? – Vacuum Leak Repair Cost

A vacuum leak is any leak in the induction system that is driving air into the engine. Everything behind the mass airflow sensor that is causing leakage of unmetered air to enter the engine is considered to be a vacuum leak.

As the name implies this system is closed. If there are holes that show up in this system that drives air into the engine, problems will arise. But why do these issues appear? A little bit more air won’t hurt anybody, right? Wrong. In modern internal combustion engines, everything is measured and if there are some problems with the piping, problems will arise. But why does this happen?

The problems show up because everything is computerized. The PCM of the vehicle, which is the computer is measuring all the air that goes into the combustion process. And if these calculations by the PCM are not correct to the factory readings. The PCM will throw errors on the dashboard or it will show some symptoms that you are going to feel while driving. We are going to cover all these symptoms later in this article and then we will discuss the vacuum leak repair cost.

But first, let’s see other possibilities that can also cause a vacuum leak. There is the PCV valve hose that can also leak and cause a vacuum problem and also the EVAP system if the EVAP solenoid is stuck open it will also drive unmetered air into the engine.

That’s why you should consider these things as well. Later in the article, we are going to elaborate on these components that cause this problem in-depth for you to have a better idea of where to look and how to read the symptoms.

Vacuum Leak Symptoms

When there is a vacuum leak, there are some symptoms that show up as well. It’s up to you to learn all of these symptoms and learn how to read them. This will be needed in order to connect all the dots in your head and find out what is causing this issue in your car. Because these symptoms do not directly indicate that there is a problem with the vacuum in the system but can also mean many other things. That’s why we are going to help you out to read them and understand them. So, let’s cover the symptoms.

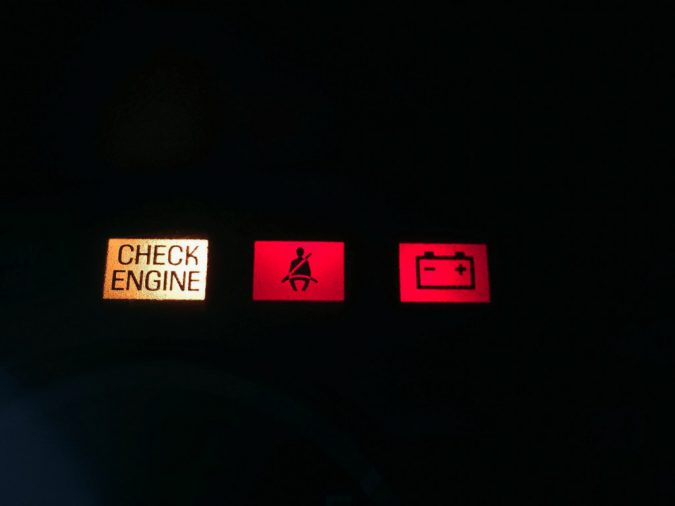

Check Engine Light

The check engine light is probably one of the first symptoms that you will notice when you have a vacuum leak in your vehicle. Why is this the case? This is the case because the PCM which is the car computer senses that something is wrong with the vehicle.

The computer knows that there are bad readings from the sensors and will show the check engine lights once there are too many alerts. The check engine light will not tell you that you have a vacuum leak since the intake is not connected to anything that could sense that there is a hole that is causing this leak. That’s why it’s going to throw errors on the sensors. And these sensors are the MAF sensor which is the mass airflow sensor that is located on the intake and the O2 sensor that is located in the exhaust system.

Vacuum Leak Repair Cost

You will think that these sensors are probably broken, but this isn’t always the case. The first thing you need to do is to check the hoses if there are leaks. This is best done with a smoke machine. You basically pour in smoke and the smoke comes out from the place where the leak is located.

It is also useful to clean the MAF sensor with compressed air. Since this sensor gets dirty and that can cause issues. If there isn’t any smoke when you test the piping then you know that there is a problem with one of these sensors and you need to get a multimeter tool to test them out. We are not going to explain that since the topic is vacuum leaks.

Rough Idle – Vacuum Leak Repair Cost

Rough idle is also one of the first symptoms that you are going to feel when there is a vacuum leak in your system. You might not connect this symptom with a vacuum leak. But it can happen. This is the case because there is too much air in the combustion and the engine doesn’t like it.

You might notice how the engine shakes a little bit when it runs. This can also damage your engine mounts since there will be a lot of vibrations. But the biggest drawback is the uneven RPMs. The RPM needle on your cluster will go up and down and will continuously shake. This shake will continue until you solve this problem. That’s why getting an OBD2 scanner is a clever idea. You need to move from somewhere in your diagnosing adventures and this will be a perfect time.

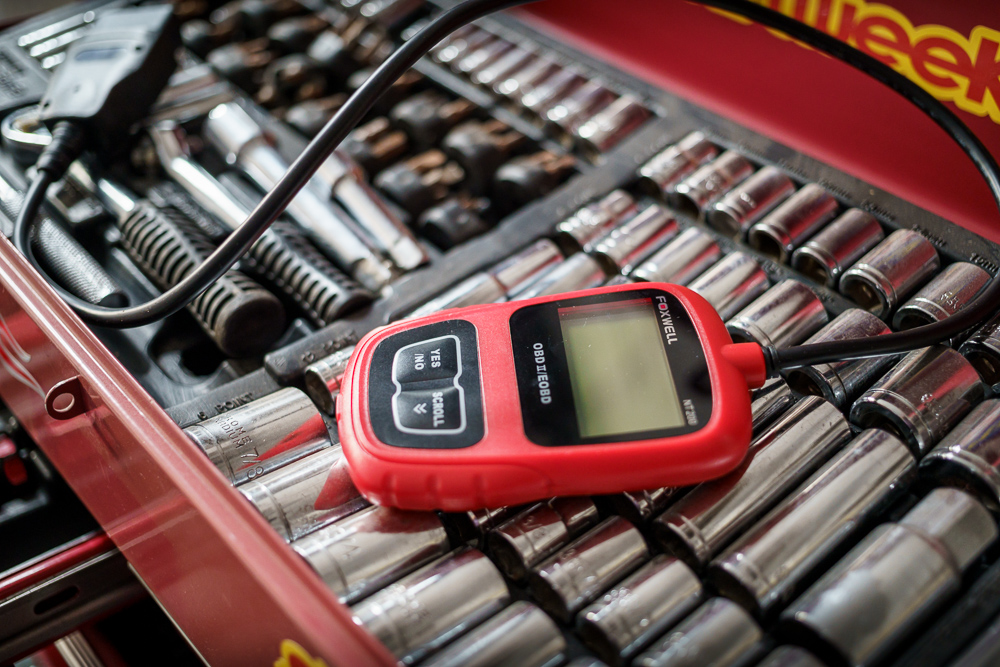

Scan the car for codes. If you get codes for both the MAF sensor and the O2 sensor, you know that something is going on and needs further investigation.

Engine Misfires

Engine misfires are also present when you have a vacuum leak. There is basically too much oxygen inside of the combustion and the engine runs unevenly. The explosions that happen inside of the engine are not even. This uneven work is called engine misfiring.

These misfires are harder to spot for an untrained eye. They usually resemble small ticks that come from the top of the engine. Every time when there is uneven work a small tick is noticed.

Also, if you place your hand at the end of the exhaust, you will notice how some pops of air are coming out. The exhaust fumes when they go out of the car should be even. These small pops mean that there is something wrong.

When these symptoms happen, you will probably think that the spark plugs or coils are bad and you are right since these components usually break and cause a misfire. But also, the vacuum leaks also cause this problem. Yeah, but how much does the vacuum leak repair cost? We are going to cover that a bit later in the article.

Lean Fuel To Air Mixture

Lean air to fuel mixture is one of the consequences of vacuum leaks. It is fortunate that the computer is going to tell you that you have a lean air to fuel mixture.

All you need is to connect the OBD2 scanner to your vehicle and scan the car for codes. If there is an error that says lean air to fuel mixture and it also mentions checking the MAF sensor and as well the O2 sensor. It could mean that there is something wrong with the vacuum lines since the air to fuel mixture depends on them.

If they are not in good condition, you will probably have a lean air to fuel mixture. Running your car like this will most likely damage the O2 sensor and the spark plugs. If you remove a spark plug and the spark plug is blistered then you know that you have a lean mixture.

Also, remember that causes for a lean air to fuel mixture are either the throttle body position sensor, mass airflow sensor, O2 sensor, or vacuum lines. If the problem is the vacuum leaks, then you need to learn the vacuum leak repair cost. That is something that we are going to elaborate on later in this article.

Hissing Sound

The hissing sound is one of the rare dead giveaway sounds that the cars make when there is a vacuum leak. This doesn’t always have to be the case to experience a hissing sound when you have a vacuum leak. But it can appear and makes the diagnosing process relatively easy.

Just start up your car and you will notice how there is a small hiss here and there and if you want to find this hole, grab a bottle of soapy water. Pour this water on top of the piping and you will notice how bubbles start to show. When you find the bubbles, you found your exhaust leak.

Engine Stalls Without A Reason

Another symptom of a vacuum leak can be the engine stall. If your engine stall for no reason it probably has a lack of fuel inside of the combustion process. This lack of fuel and too much air caused by the vacuum leak will cause the engine to stall sooner or later.

Vacuum Leak Repair Cost

The engine just doesn’t like it when the air to fuel mixture is wrong and will do everything it can to adjust it. But sometimes it can’t keep up and the engine just shuts off. So, if you have a vacuum leak do not be surprised if your car stalls while you are waiting at the lights. But what is the vacuum leak repair cost? We are about to find out but first, let’s see the causes for this issue.

Common Causes For Vacuum Leaks

We have covered all of the symptoms that can describe a vacuum leak problem. Now let’s discuss what are the common causes for vacuum leaks. What are the components that fail and eventually cause your vehicle not to run properly and develop symptoms? Let’s find out.

Broken Intake Manifold Or Bad Manifold Gasket

One of the primary reasons why you get a vacuum leak is the intake manifold. This is the case because there are a ton of places that it could leak. In most cases the gasket that is holding the manifold connected to the engine fails. But sometimes also the intake manifold itself can develop cracks.

Modern intake manifolds are pure plastic. Plastic as we know with age starts to develop cracks and these cracks can cause vacuum leaks. Vacuum leaks then ruin your vehicle performance.

One of the first things that you need to look for is the intake manifold if you are experiencing leaks. Inspect the manifold for cracks and also replace the gasket as prevention. If the problem is solved then great, if it doesn’t move on to the next cause.

Damaged Intake Snorkel – Vacuum Leak Repair Cost

The intake snorkel can also cause the vacuum leak issue. The intake snorkel is the component that connects the throttle body with the airbox. This is usually a plastic or rubber hose. If it breaks, it will cause the engine to lose power and run weirdly. This in other words translates into vacuum leaks.

If you have a problem with your intake snorkel, you will have to replace it with a new unit or a unit from a junkyard if you can harvest one. Later we will cover the prices when we are going to discuss the vacuum leak repair cost.

Broken PCV Vacuum Hoses And Fittings

There are also a lot of vacuum hoses that go around the engine and are connected with the PCV valve. All these hoses are made out of rubber and rubber with age becomes brittle. If cracks start to show up it will develop in a vacuum leak. This can be a frustrating thing because there are a ton of hoses and can be tricky to diagnose. But in the next chapter, we are going to explain how it’s done.

Another thing that can fail on the vacuum hoses is the fittings. These fittings are like clamps that hold the hoses. These fittings are mostly plastic and they can break after many years. Along the intake manifold, they are the first things that you need to check when you are having a vacuum leak in your vehicle.

EVAP Hoses Leak

Another component that can cause vacuum leaks is the EVAP system. The EVAP system is collecting the fumes that are inside of the fuel tank and is pushing them into the engine to burn.

The thing is that there are a lot of hoses on this EVAP system along with the charcoal canister and the solenoid that is doing all this work.

The solenoid is failing most of the time and stays open. When the solenoid is open there is a lot of gases that go inside of the engine. This will result in a vacuum leak as well. Also, the hoses can also cause the system to leak and unmetered air to enter the engine and cause all sorts of issues.

If you can’t get your problem fixed you should test your EVAP system for possible leaks as well.

Bad EGR Valve – Vacuum Leak Repair Cost

The EGR valve can also cause a problem and a vacuum leak will start to develop. So, what does this EGR valve do? The EGR valve is recirculating the exhaust gases inside of the engine again. This helps to burn off some of the harmful particles and not allow them to enter the atmosphere.

EGR valves are mostly found in diesel applications while in gasoline-powered cars, they are rare. If you have a diesel pickup truck or an SUV, you definitely have this EGR valve and it is a good idea to check it for possible leaks and give it a good clean as well.

How To Diagnose It?

Diagnosing a vacuum leak is not the easiest thing. This is because the computer does not tell a lot when you have a vacuum leak. Scan with any tool you like and no tool will say that hose or fitting is bad. Everything has to be done manually in this case. That’s why diagnosing this problem can be tricky.

The easiest way to diagnose the problem is by listening. If there is a hissing sound then you might easily find your problem and solve it very quickly.

Another way is to use a special spray that is designed to discover leaks like this one. Or you can try the good old soapy water method. Pour some of it on the hoses and fittings and see if there is some bubbling. If it is bubbling then you know where to look.

The best method for this job is by using a smoke machine. This is in fact the quickest way to diagnose the issue. You just attach the hose into the intake and if there are leaks in the intake manifold or the intake hose is going to show them. Similarly, with the EVAP and PCV systems. This method is a lifesaver. But you need a smoke machine, without it, it’s almost impossible to diagnose the problem. But I have diagnosed the problem, how much does the vacuum leak repair cost? Let’s find out.

Vacuum Leak Repair Cost

We came to the important bit and that is the vacuum leak repair cost. How much is going to cost you to get rid of this problem once and for all? Well, that depends on many factors. Most notably from where the leaks come from.

For example, if the intake gasket, the price is going to be only $30 to $50 for the part and $200 to $300 for the labor.

On the other side, if the problem is the intake manifold you can expect to pay somewhere between $100 to $320 for the part alone. The cost for the labor is pretty much similar.

If there is a problem with the PCV system and there are leaks of vacuum hoses, then you can expect to pay between $50 to $100 for the parts alone. The labor will be similar to the intake manifold.

The same story is for the EVAP system. Hoses and solenoids for this system will also cost you between $30 to $70.

The EGR valve on the other hand if it breaks it can get expensive. A new EGR valve will for sure going to cost you more than $150 and the labor will probably cost you $200 to $300 depending on where you take your car to.

All in all, the vacuum leak repair cost is not that expensive and it will cost you a few hundred bucks in most situations.

Vacuum Leak Repair Cost: Facts You Need to Know

  • Vacuum hoses are important in various parts of the engine, and a vacuum leak could arise in any of them.
  • Repairing a vacuum leak can cost anywhere from less than $100 to over $1,000 depending on where the problem is and what needs to be fixed.
  • Vacuum leaks can stem from four primary issues, including a broken or punctured vacuum line, blown gaskets, worn-out pressure or vacuum pumps, and broken or deteriorated pressure valves, T’s, and connections.
  • The most common leak in most engines is the intake manifold, which will normally cost $450-$800 to repair.
  • The national average hourly rate for a mechanic is $60 per hour, and the cost of labor is the most expensive part of vacuum leak repair.
  • Signs of a vacuum leak include rough or high idling, stalling, engine bay hissing, unstable engine, squealing sounds, and sucking sounds.
  • Repairing a vacuum leak depends on the location of the leak and could range from replacing a tee fitting to unscrewing a hose and fitting a new one.
  • Vacuum leaks can damage pistons, bearings, and the catalytic converter and cause engine failure if left untreated.
  • Vacuum hose leaks can impact the brakes, fuel system, and engine power, so it’s not recommended to drive with a vacuum leak.
  • Using a smoke machine to test the system is a quick and efficient way to diagnose if there are leaks.

Conclusion – Vacuum Leak Repair Cost

In this article, we have covered a lot when it comes to vacuum leak problems and the vacuum leak repair cost.

We learned what a vacuum leak is and what are the symptoms of a vacuum leak. You need to learn the symptoms before you try to do anything since this problem can be rather tricky to diagnose.

Then we covered all the possible causes for this problem and then we listed all the ways of how you can diagnose the issue.

Lastly, we have covered the vacuum leak repair cost, since the cost is one of the most important aspects of any repair. Fortunately, it is not that expensive and can be done for a few hundred dollars the most.
