The valve seals are essential for maintaining the pressure of the engine and the engine oil on separate sides. This makes the valve seals replacement cost an important piece of information to have.
In modern engines, faulty valve seals are not extremely prevalent, but they do occur.
A car has around 30,000 working components, both big and little. It shouldn’t be surprising, therefore, that some parts eventually wear out and need to be replaced with so many pieces.
The engine of a vehicle has the highest level of wear. Some parts unavoidably become damaged as the engine warms up and exerts a lot of pressure.
One such component that, over time, the heat and pressure of an engine may harm is valve seals.
- Valve Seals
- Replacement Process
- Replacement Costs
- Bad Valve Seal Symptoms
- Valve Seals Fix
- Frequently Asked Questions
Seals on the valve stem regulate the lubrication of the stem as it moves through the valve guide. Stem and guide wear is a result of insufficient oil.
A buildup of carbon and increased oil consumption due to excessive oil consumption can damage valve seats and cause early valve grinding. Oil consumption is increased (also known as car oil burning) by defective valve stem seals. This would make it highly necessary for the driver to understand the valve seals replacement cost.
Oil must not enter the combustion chamber due to increasingly strict pollution rules. Due to these rules, modern engines run hotter and have valves that can cycle 100,000 times per hour, necessitating the use of the best materials and most advanced manufacturing techniques to maintain a long-lasting seal.
Due to this, replacing valve stem seals has become less necessary. These days, this task is typically only carried out in conjunction with engine head maintenance.
Deflector (umbrella) seals and positive seals are the two most common types of valve stem seals.
1. Positive Seals
The valve guide boss is where positive seals are attached. In a manner similar to a squeegee, they wipe and meter oil onto the stem as it travels through the seal.
2. Deflector Valve Stem Seal
As their name suggests, deflector seals direct oil away from the valve stem. They move with the valve stem and are also known as umbrella seals. They protect the valve guide from too much oil.
Various Seal Material Options
Several materials, that include steel, PTFE rubber, nylon, and synthetic rubber, are used to make valve stem seals. These components are occasionally put together to create a single complex design.
Nitrile, polyacrylate, and Viton® are the three most common types of synthetic rubber used today. The three different varieties of synthetic rubber seals differ in how they handle the heat. Lacking sufficient heat resistance, synthetic rubber seals will quickly harden and crack.
This can result in seal deterioration, whereby seal fragments break off and clog the oiling system and oil pickup screen, damaging the engine due to a lack of lubrication.
As a result, Viton® is a common material used in many valve stem seals for modern cars. For use in many of the modern engines that run pretty hot, especially the smaller domestic and imported models, Viton® is currently the best material that is on the market.
It frequently works in tandem with a “metal jacket” or other full-coverage covering of the Viton® positive seal. Most Fel-Pro valve stem seals are made of Viton®, which has excellent heat (up to 450° F) and abrasion resistance.
Valve Seal Replacement
Does your car’s engine emit blue smoke while idling or while driving? Most likely, your engine’s valve guide oil seals are worn out. I’ll demonstrate how simple it is to replace them using just a few basic hand tools.
Valve Seals Replacement – Step 1:
You must now raise the hood of your car so that you can access the seals. After that, remove the rocker cover to reveal the valvetrain.
The rocker cover is typically secured with ten mounting bolts, but this can occasionally change. Therefore, to remove the bolts and remove the cover, use the proper size socket.
Since these are typical engine components, handling them shouldn’t be a problem. In case you’re wondering, no, the engine does not need to be removed from the vehicle in order to complete this.
Check any of the exhaust ports on your engine for oily fluid if you turn your attention to the exhaust ports. Faulty valve stem seals can be quickly identified if you know how to inspect them.
The affected port will be completely removed from the top of the valve guide and will only be riding up and down on the valve stem when you locate the oily port. To identify the affected port, search the valve seals on the exhaust valve.
Valve Seals Replacement – Step 2:
The second step is to glue the seal in place, which is the solution we’ve found. However, you must first remove your spray bar. This is secured by about three bolts.
Make sure the affected cylinder is on its compression stroke as the next crucial action you must take. The simple method for accomplishing this is to manually turn your engine until both cam lobes are pointing upward.
Valve Seals Replacement – Step 3:
Once you have finished the previous step, quickly remove the follower from the valve you are working on by using a wrench.
Additionally, you need to get rid of the spring retainer. Keep in mind that the follower must be coupled back in the same manner as it was initially fixed before removing it. Take note of this.
Valve Seals Replacement – Step 4:
You will use your socket wrench to remove the spark plug and then screw the air hose’s end.
Connect the opposite end to a compressor. You should now pressurize the cylinder to about 80 psi, and you must maintain that pressure because, over time, pressure will gradually decrease past the piston rings. The pressure will also want to push the piston downward.
To stop the piston from moving, you must engage your hand brake and shift into gear in your vehicle. That’s all there is to it.
Valve Seals Replacement – Step 5:
Please start your air compressor to start applying pressure. Note that the damaged valve springs will add to the valve seals replacement cost.
You can then compress the valve spring using a high-quality valve spring compressor tool to help remove the cotters. Following this, getting the spring out will be simple.
Valve Seals Replacement – Step 6:
Now that you’ve taken out the spring, you are free to access the valve seals. Lift it up above the valve stem to be able to remove it.
It will be very helpful if you can get your hands on a valve seal removal tool. You are now able to now fix the new valve seals after removing the seal. The opposite of how you removed it is now done.
Valve Seals Replacement – Step 7:
Push the replacement seal down from the valve stem’s top to the valve guide’s top. To complete this task correctly, you can use a socket.
That completes the installation of the new seal. Put everything back together. Just follow the opposite procedure. To make sure you are not running low, remember to keep checking your compressor. When your valve spring is properly seated, turn off the compressor’s airflow.
You can use this comprehensive guide to replace the valve stem seals on a Chevrolet 350 without disassembling the cylinder head or the entire engine. And while you’re here, perhaps you might be interested in our guides on the Chevy 350 firing order, as well as setting the correct timing for the Chevy 350.
Of course, you’ll need to repeat this procedure for each valve in the engine if you’re replacing the entire set. Although the procedure takes some time, it is much simpler than taking out the cylinder head. There it is—the entire procedure.
Valve Seal Replacement Cost
Valve stem seals comprise rubber, hence their cost is quite low. You shouldn’t bother changing these seals often because they don’t break readily.
The cost to replace a valve stem seal ranges from $35 to $140.
It’s a sad fact that changing valve stem seals takes a lot of time. It takes at most three hours, which means your mechanic’s labor fees will be high.
You might pay $120 or more for a qualified mechanic. Your valve stem seals may need replacing at the end, which might cost up to $350.
Bad Valve Seal Symptoms
Any issue with a car valve is severe, mainly if it affects the engine. It will also raise the valve seals replacement cost. What signs indicate damaged valve seals, then?
Properly sealed valves are essential for your car to operate at its best. Any seal or valve problem necessitates an engine rebuild in order to get the car back in working order.
Pay close attention to the details below to learn about the signs of damaged valve seals in your vehicle. You can also search online for the best engine valve maintenance advice. These symptoms of bad valve seals may help quite a lot with identifying the underlying issue.
Valve Seals Replacement Cost, Symptoms #1: A Ticking Sound
A ticking or popping sound is the first sign that something is wrong with a valve in your car. These difficulties may occasionally show up before any other issue.
The engine makes a louder roar as you go faster. It indicates that some of the valve’s train parts are misaligned or have worn out. The car engine not receiving enough lubricant is the final possible cause.
Most automobiles feature hydraulic lifters. These need steady pressure and continuous lubrication. The valve train would move too much if the pressure were to get slightly off.
Keep in mind that popping or trickling noises are one of your car’s earliest warning signs of faulty valve seals. Otherwise, these engine ticking noises are akin to lifter tick.
Valve Seals Replacement Cost, Symptoms #2: Loss Of Engine Power
Having problems with your car’s valves can also show via a decline in engine performance and power.
Automobile designers make sure that automobile seats are exactly snug and that there is as little room for movement as possible. If the valve guides and seals are leaking, the oil may build up on the valve’s top, which could result in the valve losing its seat or developing a gap.
Further complications with compression (note the low compression symptoms, among others) could result in poor combustion and power loss.
Burnt valves are a different problem that contributes to poor engine performance. Whenever the valve burns, it will lose material and then develops significant holes that let gases escape and slow down compression.
Leaking seals and guides are the most frequent causes of burnt valves. They might also have neglected to address a compression problem with the vehicle. The likelihood of a burnt valve increases when this problem coexists with a cooling system or EGR (Exhaust Gas Recirculation) problem.
Valve Seals Replacement Cost, Symptoms #3: Cold Engine Test
The easiest approach to determine whether valve seals are leaking is unquestionable with a cold engine test. If you find that there is an issue with the valve seals it is important to consider the valve seals replacement cost and have it replaced.
The top of the valve cover’s head will retain some leftover oil if a car sits for a long time or overnight. The following time you drive, the oil becomes trapped down at the faulty seal and emits blue smoke.
The best test to identify faulty valve seals is this one. So, if you notice that your car struggles to start when the engine is cold, that’s suspect for valve seal-related issues.
Valve Seals Replacement Cost, Symptoms #4: Presence Of Smoke
The second indication of poor valve seals is excessive smoke. When a car is started, there is a lot of exhaust smoke that the driver can see, but deteriorated valve seals can cause excessive smoke.
Because of this, it is best that when car owners notice smoke waves, they examine the valve seal.

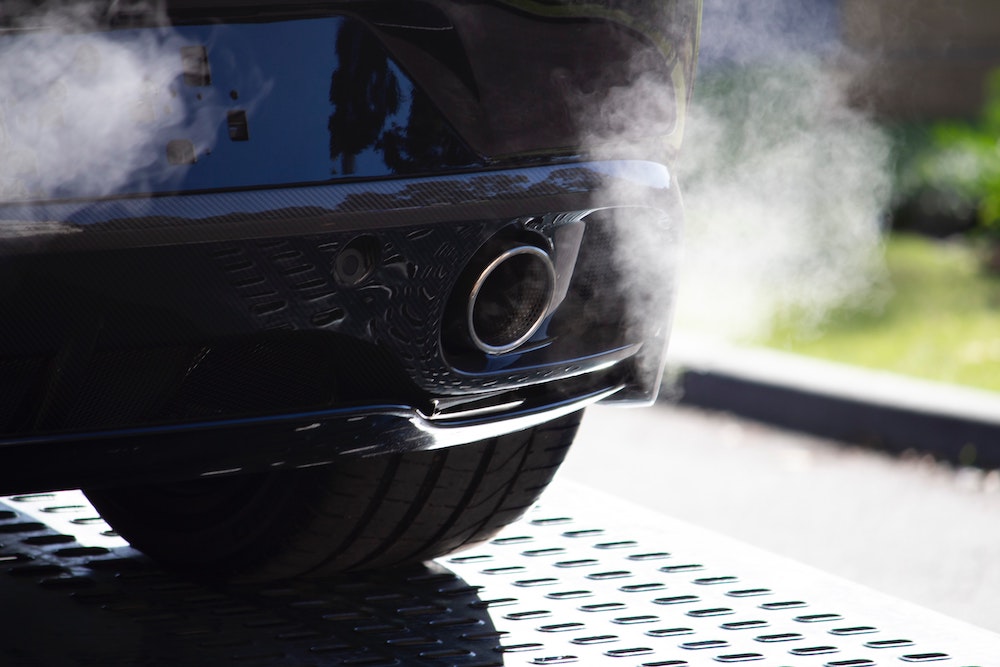

Valve Seals Replacement Cost, Symptoms #5: Blue Smoke From The Tailpipe
Blue smoke rising from the tailpipe is a solid sign that the car engine has some problem if you’re searching for symptoms that are obviously caused by damaged valve guides.
Even while blue smoke is not a sign that the automobile valve is malfunctioning, it is a common sign. Oil can enter the combustion chamber and burn with the automobile gasoline when the valve guides and seals deteriorate.
Owners of cars may also notice that their oil levels are constantly dropping or that they need to replenish oil more frequently. You might be familiar with this if you own a Subaru, with its oil consumption issues.
Even if there isn’t much blue smoke coming out of the exhaust when the valve guide and seal fail, you may have faulty piston rings. The latter may require another hefty piston rings replacement cost.
Valve Seals Replacement Cost, Symptoms #6: Engine Brake Test
Engine braking is another test to look for signs of damaged valve seals.
Drivers can press the accelerator after coasting and watch the oil remaining at the front cover burn to determine whether they have a faulty valve seal.
Valve Seals Replacement Cost, Symptoms #7: Idle, Stop, Go Type Of Driving
The majority of the time, faulty valve seals become apparent when you stop the car at a light.
High amounts of vacuum at the intake manifold occur when the car remains idle for a long time, which causes of this issue.
As a result, oil gets into the heads and amassed at the valve stems.
When accelerating, oil with a faulty valve seal will reach to the valve guide and pass through the eroding deal.
Bad Valve Seals
Defects in the seal itself and incorrect installation are the main reasons for a faulty seal. Despite comprising high-strength rubber, valves can wear out, break, or fracture.
Even missing seals from a poor installation are possible. Oil will enter the engine’s cylinders due to any of these seal defects.
Quick repairs are essential because carbon buildup results from failing valve stem seals and negatively impacts other engine parts including the valve seat and guide.
There might occasionally still be very good compression. High oil use, however, can result in greater operating temperatures, which might damage or shatter seals.
Incorrect valve-to-valve guide clearance might also result in seal issues. It can move laterally when it’s loose inside the cylinder head, wearing out the valve.
The greatest thing you and your team can do is regularly do safety inspections and refer to your fleet’s equipment’s preventative maintenance schedule.
Regular inspections, whether daily or monthly, will aid in spotting leaks and other issues before they worsen.
Additionally, it’s crucial to spend money on premium valve seal products that are error-free.
Having a partnership with a business that promises default-free items puts you ahead of the competition and gives you a competitive advantage.
How To Check Valve Stem Seals
You will need to conduct additional research and not always rely on numerous indicators because many reasons can point to a faulty valve stem seal. Start your inspection now if you’re qualified and have the necessary training. Otherwise, follow the advice of the professionals, and just worry about how much for a car diagnosis.
Valve Seals Diagnosis – Step 1:
Open the engine hood and use a dipstick to check the machine’s oil level. Is it noticeably less than at previous times after a comparable level of usage?
Additionally, you might look to see whether the valve stem and guide have any extra clearance. Although leaks are a clear indication that the valve stem seal isn’t working properly, they aren’t always present.
Valve Seals Diagnosis – Step 2:
Start the engine and check the exhaust. Is the smoke from the pipe thick and does it have a blue-gray tint? If this is the case, the engine is burning oil that has leaked, which is why you might not notice any leaks underneath the hood.
Valve Seals Diagnosis – Step 3:
As the engine idles, keep an ear out for strange noises like rattling or tapping. Any strange noises could be a sign of faulty valves.
Valve Seals Diagnosis – Step 4:
Look for any engine or error lights that could be flashing. You can connect the device to a diagnostic reader to check for various problem codes.
Refer to the owner’s manual for guidance if you are having problems with valve seals or valve guides, for instance.
Valve Seals Diagnosis – Step 5:
In the worst-case scenario, you’ll have to disassemble the engine and examine the valve stem seals and other parts. To prevent more harm during the process, it might be advisable to rely on experts for this stage.
Check the valve seals for dents, cracks, breaks, and other damage with the help of a specialist or yourself.
Long-term costs of replacing valve stem seals are reasonable because new seals avert more severe engine damage.
Valve Stem Seals Quick Fix
In all honesty, there isn’t a quick resolution for this problem that will last. On a DIY budget, there is essentially no way to get around defective valve seals and still drive your automobile.
Thankfully, there are some first aid kits, but their effectiveness really depends on the overall health of your car’s engine and the degree of valve seal damage.
Valve Seals Quick Fixes #1. Oil Stop-Leak
This additive, which is very common, helps to increase the lifespan of valve seals. The rubber valve seal swells, as a result, momentarily reducing oil leakage.
Though its effects are fleeting, you shouldn’t rely on this additive for a long time.
Additionally, oil stop-leak will have little to no impact and you won’t notice any change in the symptoms above if the valve seat is severely faulty.
The oil stop-leak is a simple temporary solution if you want to utilize it. Simply pour into the oil filler tube in the same manner as motor oil.
Valve Seals Quick Fixes #2. High Mileage Oil
If your vehicle has more than 75,000 miles on it, you might want to think about using a particular type of motor oil (in particular, look for the best high mileage oil around) made to keep the aging valves in good condition.
As was already indicated, high-quality, high-density rubber is used to create valve seals. The rubber becomes less elastic as the miles and time go by.
As a result, it is more vulnerable to wear and cracking. The additives in high-mileage oil keep the valve seals flexible and soft, extending their lives.
You can temporarily fix the broken valve seal problem by using high-mileage oil, but its impact lasts longer than that of oil stop-leak.
Using this particular oil will increase your chances of keeping your engine for a longer period of time, but this isn’t the only option.
Valve Seals Quick Fixes #3. Rebuild Of Valve Seat
Rebuilding the valvetrain is the only solution that can resolve this problem fully. The cost of this process varies depending on the make and model of your car as well as how serious the problem is.
In general, you’re looking at low four-figure amounts, though some rebuilds will run under $1,000.
The procedure requires disassembling the entire engine then taking out the cylinder head cover, pushrods, rocker arms, spark plugs, and which accounts for the procedure’s high cost.
The process is more difficult if your car has a V6 or V8 engine because a mechanic must determine which head contains the damaged valve seat.
At this point, you ought to think about how much your car is worth. Your daily driver will cost more to fix than the cost of repair, but your beloved car might lose value if something goes horribly wrong.
Frequently Asked Questions
How Long Can I Drive With Bad Piston Rings
For a limited number of miles, you can drive your car with damaged piston rings, but you must get it replaced as a way to avoid harming your engine.
What Causes Piston Ring Failure
Fuel frequently builds up and condenses on the cylinder wall during engine running as a result of combustion defects. The oil film thins or is wiped off in this instance. Within just a few thousand miles, the piston rings entirely wear out due to the combined friction.
How Much Does It Cost To Replace Piston Rings
Depending on whether you go to a mechanic or do it yourself, replacing a piston ring might cost anywhere between $75 to $3,500. According to national averages for all types of cars, the piston ring replacement price range has been calculated.
