What is a Throttle Position Sensor and How Does it Work?
A throttle position sensor (TPS) is a device that measures the angle of the throttle valve in an internal combustion engine.

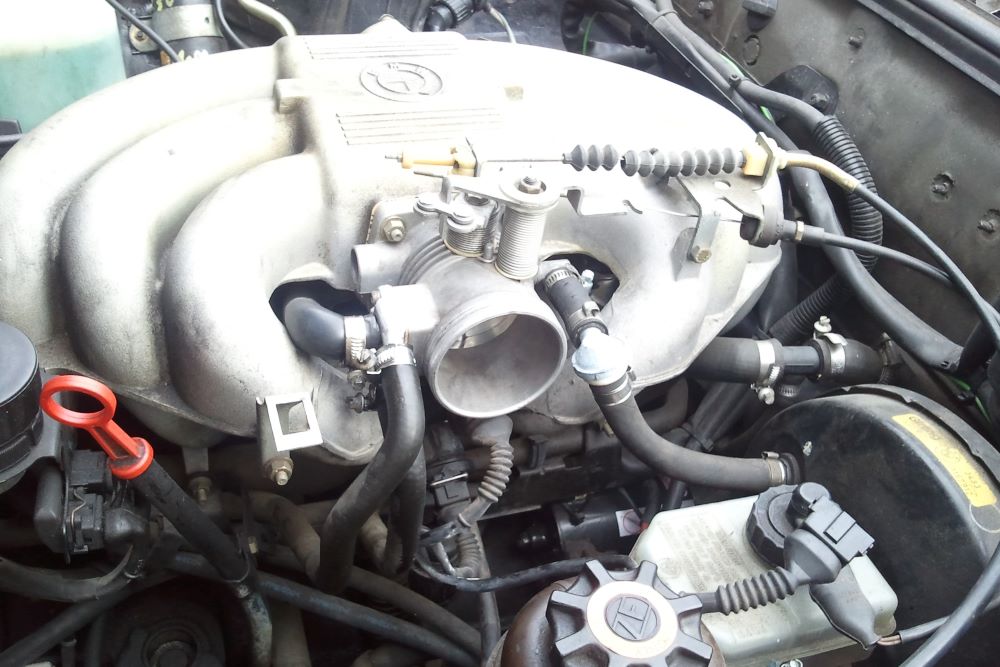

- It is typically located on the butterfly spindle/shaft so that it can directly monitor the position of the throttle. The sensor is usually connected to an electronic control unit (ECU), which uses this information to adjust fuel delivery and ignition timing, as well as other engine parameters. The TPS works by measuring changes in voltage or resistance when the throttle valve moves.
- As the valve opens, it increases resistance or decreases voltage, depending on its design. This change in voltage or resistance is then sent to the ECU, which interprets it and adjusts engine performance accordingly. In some cases, a TPS may also be used to detect when a driver has pressed down on their accelerator pedal too hard and will limit power output until they ease off slightly.
- Overall, a TPS helps ensure that an engine runs smoothly and efficiently by providing feedback about how much air is entering its cylinders at any given time. This allows for more precise control over fuel delivery and ignition timing for optimal performance under varying conditions such as acceleration or deceleration.
Common Symptoms of a Faulty Throttle Position Sensor
A faulty throttle position sensor can cause a variety of symptoms in a vehicle, including reduced fuel efficiency, poor engine performance, and difficulty starting the engine. To learn more, you can check out our guide on the P0123 OBD diagnostics error code.
Other common symptoms include stalling or jerking when accelerating or decelerating, as well as an illuminated check engine light. In some cases, the vehicle may even enter “limp mode” where it is limited to a certain speed and cannot accelerate beyond that point.
If you experience any of these symptoms while driving your vehicle, it is important to have the throttle position sensor checked by a qualified mechanic as soon as possible. A malfunctioning throttle position sensor can lead to further damage if left unchecked for too long.
How to Diagnose and Repair a Faulty Throttle Position Sensor
A faulty throttle position sensor (TPS) can cause a variety of engine performance issues, including poor fuel economy, rough idling, and stalling. These are among the most common symptoms of a bad throttle position sensor. Diagnosing and repairing a faulty TPS is relatively straightforward and can be done with basic tools.
To diagnose a faulty TPS, begin by checking the wiring harness for any signs of damage or corrosion. If the wiring appears to be in good condition, use an ohmmeter to check the resistance between the terminals on the TPS connector. The resistance should match what is specified in your vehicle’s service manual. If it does not match, then you have likely identified your problem.
Once you have confirmed that there is an issue with your TPS, it will need to be replaced. Begin by disconnecting the negative battery cable from your vehicle’s battery to prevent any electrical shock or damage while working on it. Then locate and remove the old TPS from its mounting bracket using a socket wrench or screwdriver as necessary.
Next, install the new TPS into its mounting bracket and reconnect all of its wires according to their original positions before removing them from their connectors earlier in this process. Finally, reconnect the negative battery cable back onto your vehicle’s battery before starting up your engine again for testing purposes; if everything was done correctly then you should notice improved engine performance immediately after starting up again.
The Benefits of Installing an Aftermarket Throttle Position Sensor
The throttle position sensor (TPS) is an important component of a vehicle’s engine management system. It monitors the position of the throttle plate and sends a signal to the engine control unit (ECU). This signal is used to adjust fuel delivery, ignition timing, and other parameters that affect engine performance. Installing an aftermarket TPS can provide several benefits for your vehicle.
- One benefit of installing an aftermarket TPS is improved fuel economy. The ECU uses the signal from the TPS to adjust fuel delivery based on how much air is entering the engine. By installing a more accurate aftermarket TPS, you can ensure that your vehicle’s ECU has more precise information about how much air is entering the engine, allowing it to make better decisions about when and how much fuel should be delivered for optimal efficiency.
- Another benefit of installing an aftermarket TPS is improved acceleration response time. The ECU uses information from the TPS to determine when it should increase or decrease ignition timing to optimize power output during acceleration or deceleration. An aftermarket TPS with higher resolution will provide more accurate data which will allow for faster response times from your vehicle’s ECU when adjusting ignition timing for optimal performance during acceleration or deceleration events.
- Finally, installing an aftermarket TPS can also improve overall drivability by providing smoother transitions between gears and better idle stability due to its ability to accurately monitor changes in throttle position at all times while driving or idling. This allows your vehicle’s ECU to make adjustments as needed to maintain smooth operation throughout all driving conditions without any sudden jerks or stalls caused by incorrect readings from a faulty stock sensor.
In conclusion, there are many benefits associated with installing an aftermarket throttle position sensor on your vehicle including improved fuel economy, faster acceleration response time, and smoother overall drivability due to its increased accuracy compared with stock sensors. Not to mention, other issues such as the P0121 OBD diagnostics error code.
Understanding the Different Types of Throttle Position Sensors Available on the Market
Throttle position sensors (TPS) are an important component of any vehicle’s engine control system. They measure the angle of the throttle plate, which is used to regulate the amount of air entering the engine. This information is then used by the engine control unit (ECU) to adjust fuel delivery and ignition timing for optimal performance.
There are several different types of TPS available on the market, each with its advantages and disadvantages.
- The most common type of TPS is a potentiometer-based sensor, which uses a variable resistor to measure throttle plate angle. These sensors are relatively inexpensive and easy to install, but they can be prone to wear over time due to their mechanical nature. Additionally, they may not provide accurate readings at low throttle angles due to their limited range of motion.
- Hall effect sensors are another popular option for measuring throttle plate angles. These devices use an electromagnet and a Hall effect transistor to detect changes in magnetic field strength as the throttle plate moves. Hall effect sensors offer greater accuracy than potentiometer-based models, but they tend to be more expensive and require more complex installation procedures.
- Optical encoders are also available for measuring throttle position in some applications. These devices use light-emitting diodes (LEDs) or laser beams that reflect off a rotating disk attached to the throttle shaft to detect changes in angular position with high precision and accuracy over long periods without wear or degradation in performance due to mechanical friction or corrosion from exposure elements such as water or dust particles. However, optical encoders tend to be more expensive than other types of TPSs due to their complexity and the specialized components required for installation.
In conclusion, there are several different types of TPSs available in today’s market, each offering its unique advantages depending on your specific application needs. You must understand all your options before making a purchase decision so that you can select one that best meets your requirements.
Troubleshooting Tips for Resolving Issues with Your Vehicle’s TPS System
1. Check the wiring and connections: Inspect the wiring and connections of your vehicle’s TPS system for any signs of damage or corrosion. Make sure all wires are securely connected to their respective terminals.
2. Test the voltage output: Use a multimeter to test the voltage output of your vehicle’s TPS system. The voltage should be within a certain range, depending on your specific make and model; consult your owner’s manual for more information on this range. If it is outside of this range, you may need to replace or adjust the TPS sensor itself.
3. Clean or replace components: If there is any dirt, debris, or corrosion present on any component in your vehicle’s TPS system, clean it off with an appropriate cleaner and/or lubricant as necessary before testing again. If cleaning does not resolve the issue, you may need to replace one or more components to restore the proper functioning of the system. To learn more, check out our guide on how to clean your car’s throttle body.
4. Check for software updates: Many modern vehicles have software that can be updated to improve performance and address potential issues with various systems such as the TPS system; check with your manufacturer for available updates that could help resolve any issues you are having with yours specifically.
5. Have a professional inspect it: If none of these steps resolves your issue with your vehicle’s TPS system, consider having a professional mechanic inspect it. They will be able to diagnose what exactly is causing the problem, as well as provide advice on how best to fix it.
The Pros and Cons of Replacing Your Vehicle’s Stock TPS with an Aftermarket Unit
The throttle position sensor (TPS) is an important component of a vehicle’s engine management system. It monitors the position of the throttle and sends signals to the engine control unit (ECU) to adjust fuel delivery accordingly. Replacing a vehicle’s stock TPS with an aftermarket unit can have both advantages and disadvantages.
- One advantage of replacing a stock TPS with an aftermarket unit is improved performance. Aftermarket units are often designed to be more accurate than their stock counterparts, allowing for better fuel economy and increased power output from the engine. Additionally, some aftermarket units offer adjustable settings that allow drivers to fine-tune their vehicles for optimal performance in different driving conditions or on different types of terrain.
- Another advantage is cost savings over time. Aftermarket TPS units are typically less expensive than their stock counterparts, meaning that drivers can save money by purchasing them instead of OEM parts when it comes time for replacement or repair. Additionally, since they are designed to be more accurate than stock parts, they may last longer before needing replacement again in the future, further reducing long-term costs associated with maintenance and repairs on your vehicle’s engine management system.
- However, there are also some potential drawbacks associated with replacing your vehicle’s stock TPS with an aftermarket unit as well. One such drawback is compatibility issues between the new part and your existing ECU software or wiring harnesses; if these components do not match up correctly then you may experience problems such as poor performance or even damage to other components in your car’s electrical system due to incorrect signals being sent from the new part back to the ECU itself.
- Additionally, if you purchase a low-quality aftermarket part then it may not last as long as its OEM counterpart would have before needing replacement again in the future; this could end up costing you more money over time due to frequent repairs or replacements being necessary on your car’s engine management system due to faulty parts failing prematurely compared to what would have been expected from higher quality OEM parts instead.
In conclusion, replacing a vehicle’s stock TPS with an aftermarket unit can provide improved performance along with cost savings over time but there are also potential drawbacks associated such as compatibility issues between new parts and existing software/wiring harnesses which could lead to further problems down the line if not addressed properly beforehand.
How to Properly Adjust the Settings on Your Vehicle’s TPS System for Optimal Performance
The throttle position sensor (TPS) is an important component of your vehicle’s engine management system. It helps to regulate the amount of air and fuel entering the engine, which in turn affects its performance. Properly adjusting the settings on your vehicle’s TPS system can help ensure optimal performance and fuel efficiency.
- To begin, you will need to locate the TPS on your vehicle. This is typically located near the throttle body or intake manifold, and it should be easy to identify due to its distinctive shape. Once you have located it, you will need a digital multimeter or voltmeter to adjust its settings accurately.
- Next, start up your engine and allow it to idle for a few minutes so that it reaches operating temperature. Then connect one lead of the multimeter or voltmeter to the ground (the negative terminal) and attach the other lead directly onto one of the terminals on the TPS connector plug. Set your meter reading range between 0-5 volts DC (direct current).
- Now slowly open up your throttle until you reach wide open throttle (WOT). At this point, check what voltage is being read by your meter; if it reads less than 4 volts then you will need to adjust its setting accordingly using a small screwdriver or similar tool.
- Turn clockwise until 4 volts are reached; if more than 4 volts are read then turn counterclockwise until 4 volts are reached again before disconnecting from the ground and turning off your engine completely once finished with adjustments.
- Finally, start up again after making sure all connections are secure and repeat steps 3-4 several times for any changes made during the adjustment process to take effect properly before driving away as normal afterward with improved performance from a correctly adjusted TPS system.
Comparing OEM vs Aftermarket Parts: Which is Best for Your Vehicle’s TPS System?
When it comes to maintaining the proper functioning of your vehicle’s throttle position sensor (TPS) system, you have two main options: OEM (Original Equipment Manufacturer) parts or aftermarket parts. Both types of parts can be used to replace faulty components in your TPS system, but which is best for your vehicle?
- OEM parts are designed and manufactured by the same company that made the original part for your vehicle. This means that they are designed specifically for use with a particular make and model of car, so they will fit perfectly and work as intended. OEM parts also come with a warranty from the manufacturer, so if something goes wrong you can get it replaced or repaired at no extra cost. The downside is that OEM parts tend to be more expensive than aftermarket alternatives.
- Aftermarket parts are produced by third-party companies that specialize in producing replacement components for vehicles. These components may not fit as precisely as an OEM part would, but they often offer better performance at a lower price point than their OEM counterparts. Aftermarket manufacturers also typically offer warranties on their products, although these may not be as comprehensive as those offered by an OEM manufacturer.
Ultimately, when deciding between using an OEM or aftermarket part for your TPS system, you should consider both cost and quality factors before making a decision. If you’d like to gain more insights, check out our in-depth look at what does a throttle body do.
If you want top-notch performance without breaking the bank then an aftermarket part might be right for you; however, if reliability is more important then investing in an OEM component could be worth it in the long run.
