P0030

P0030 – A Broken O2 Sensor Or Something Else?

Are you experiencing the check engine light and you have diagnosed the P0030 code on the car? If that is the case and you found yourself in this situation, then you are at the right place because there will be a lot to cover on this topic.

Having a problem like this with the P0030 code can be a real pain to deal with. Modern cars are so packed with sensors and different catalytic equipment that you need to be really lucky in order not to experience problems like in our case with this code.

This is why you need to become a car doctor and know how to diagnose stuff on your car. Why I’m saying this? Well, if you do so, you can be sure that you will save hundreds of dollars during the ownership of the car. In some cases even thousands.

There are a ton of mechanics that misdiagnose things and make you pay hundreds of dollars to replace components that are in fact in good condition. This is why we are going to help you out.

First, we will cover the basics of car diagnostics and how it is done the right way. Then we will elaborate more on the P0030 code meaning and learn what this code means. After that, we will cover the causes and the symptoms of the P0030 code and learn more about how to diagnose and fix the problem. So, if you want to learn more, follow along.

P0030 Code

Now before we dive into the complexity of the P0030 code and learn its meaning. Let’s first cover some of the basics when it comes to car diagnostics. I bet that there are a ton of people out there who are not into cars and want to learn the basic stuff to get started and become successful at troubleshooting.

What is important for you to know is that modern cars are not like they were back in the day. Back in the day, everything was simple. I mean really simple.

Nowadays things are really different and far more complex. Every car is packed with technology and its complexity is rather intricate.

There are dozens of different sensors and other electronic devices that constantly observe the engine and its work. Then these components send this information to the PCM or ECM. Which is the engine control module also known as the car computer.

Then this device evaluates the data and decides if there is a problem. Precisely like in our case with the P0030 code. In this case, you will get the check engine light and you will have to diagnose the car.

For this, you will need a special tool. Also known as an OBD2 scanner. This is one of the most essential tools out there. And with its help, you will have the access to the PCM. Without it, diagnostics is literally impossible when it comes to problems like these.

Another tool that you will need is a multimeter. With this multimeter, you will be able to troubleshoot different components by measuring their voltage, continuity, or resistance. Now as we cleared all this, let’s discuss the P0030 code.

P0030 HO2S Heater Control Circuit Bank 1 Sensor 1

Now we came to the important part and that is the P0030 code definition. What does this code mean in the first place?

The simple definition is P0030 HO2S Heater Control Circuit Bank 1 Sensor. This is probably the description that you will get on your car. It is worth noting that this is a generic code, which means that this code is defined in all of the cars the same.

If you have a P0030 Chevy let’s say or any other GM product, you might come across the definition of “P0030 HO2S Heater Control Circuit Conditions” or “HO2S Heater Control Circuit”.

So, what is the problem here? Well, the problem in this situation is that the heater element of the O2 sensor also known as the oxygen sensor is malfunctioning. This will greatly affect the O2 sensor and will make it not work correctly.

So, in this situation, you might notice anything, or possibly start noticing the symptoms of a bad O2 sensor that we are going to discuss later on in the article. But how serious is this condition with this P0030 code?

Well, the level of concern is somewhere in the middle. Depending on the symptoms that you are experiencing. If there are a lot of symptoms and the car basically does not work as it should. Then you need to fix this problem as soon as possible.

Or on the other hand, if the code doesn’t cause symptoms. You will be fine. Either way, sooner or later the sensor will fail completely and the car will run really poorly. This is why you need to sort out this problem quickly. But what is the O2 sensor and where it is located? Let’s elaborate on that next.

What Is The O2 Sensor?

Now as we cleared the meaning of the P0030 code, let’s now understand how the O2 sensor works and what is its main role in the vehicle. Knowing this will greatly help you understand the problem and help you to sort it out really easily.

So, what is the O2 sensor? This sensor is also known as an oxygen sensor or lambda sensor. On each car with a single exhaust, there are two of these sensors. One before the catalytic converter, and one sensor after the catalytic converter. Depending much on the application.

This sensor is something like a probe that is inserted into the exhaust system and it is basically measuring the proportion of the oxygen that is flowing into the exhaust. This sensor is really essential when it comes to internal combustion engines.

The O2 sensor basically helps the PCM to maintain the air to fuel mixture. This means that if this sensor is not working, your car will run on the wrong air to fuel mixture and there will be problems with running this engine, that’s why you should not ignore it.

This sensor is constantly reading values. Meaning when the car is working. It produces a voltage based on the heat that it gets and this voltage could reach up to 1 volt when the sensor is working at optimum temperature.

But more on that, we are going to cover later on in the article when we will learn how to diagnose the problem with the P0030 code and determine if the O2 sensor is any good. And you don’t want to miss that. The next thing we would like to cover is the causes for the P0030 code. So, follow along.

Causes For The P0030 Code

As we learned the P0030 meaning and the function of the O2 sensor, we can now start focusing more on the causes of this error code.

We know that there is a problem with the O2 sensor, more precisely on bank 1 of the engine. Now let’s see what could be causing this sensor to malfunction and deliver you this code. So, let’s begin covering the causes.

1. Bad Or Damaged Heater Element Inside The O2 Sensor

As we noted, the P0030 code indicates that there is probable damage to the heater element inside of the O2 sensor.

This heater element often turns on when you start the car until the catalytic converter reaches optimum temperature.

It doesn’t necessarily mean that you will have a bad O2 sensor if this element isn’t working. The sensor might be good. But the element that is inside of it used to heat up the sensor could be bad. So, when the engine reaches optimum temperature, you will probably not experience any symptoms.

This heater element unfortunately cannot be replaced. You will need a new sensor in order to get things sorted out. Now let’s move to the next probable cause for the P0030 code.

2. Bad HO2S Heater Control Circuit

The second possibility is a problem in the internal electrical circuit of the sensor, also known as the HO2S heater control circuit.

This electrical circuit basically controls the heater element and whenever this control circuit malfunctions, there will be problems with the sensor itself.

It could cause the P0030 code as well as a number of other trouble codes. Namely, the P0036 code. This is why whenever you have the P0030 and the P0036, you know that either the heater control circuit or the heater element is bad. Now let’s move to the next probable cause for this code.

3. A Short In The Sensor Wiring

The third most common cause for the P0030 code can be a short in the wiring of the sensor. Why is this the case?

Well, this is the case because the mounting location of these sensors is the exhaust pipe. So, when the heat contacts the wires, you cannot expect anything good.

Wires can melt or the connectors can corrode when you drive in a big puddle of water let’s say. Anything is possible.

This is why it is really essential for you to check the connectors from both ends and see if the values are good. You can do this by using a multimeter tool. This cheap tool is a total lifesaver when it comes to sorting out problems like these. I totally recommend it.

There are a ton of tutorials online on how you can bench test the sensor as well as how to test the wiring itself. So, don’t be afraid to use this knowledge. Even though later on we are going to explain this as well.

4. Blown Fuse For The HO2 Sensor

Another very probable cause for the P0030 can be a blown fuse for the HO2 sensor. This is a small fuse that is located in the fusebox and serves as a protection from shorts in the system.

So, when the fuse will pop, you will start experiencing blown O2 sensor fuse symptoms. So, beware of this fuse. Check the fusebox and see if this specific fuse is burnt. If it is, replace it, and if it burns again it means that you have a short in your wiring of the sensor. So, you will need to check this out in order to fix the P0030 code permanently.

5. Possible PCM/ECM Failure

The last cause that we would like to cover when it comes to the P0030 code is a problem with the PCM or ECM as some call it.

This is basically the brain of the car, the main computer. These units also can malfunction and cause you problems like these on your car. It rarely happens though but it can. So, if everything is working well on your car, check this component and see if it is good or not. Now let’s move to the symptoms of the P0030 code.

Blown O2 Sensor Fuse Symptoms

As we covered the probable causes for the P0030 code, now we can start focusing on the symptoms that you will experience whenever you have a problem like in this case.

As you all know, whenever a component is faulty, you can expect that the car will produce symptoms. Which in this case is the HO2S sensor. But beware that in this case, only the heater element is damaged. So, a total failure of this sensor will not occur. But still, you could feel some of the symptoms that we are going to discuss next.

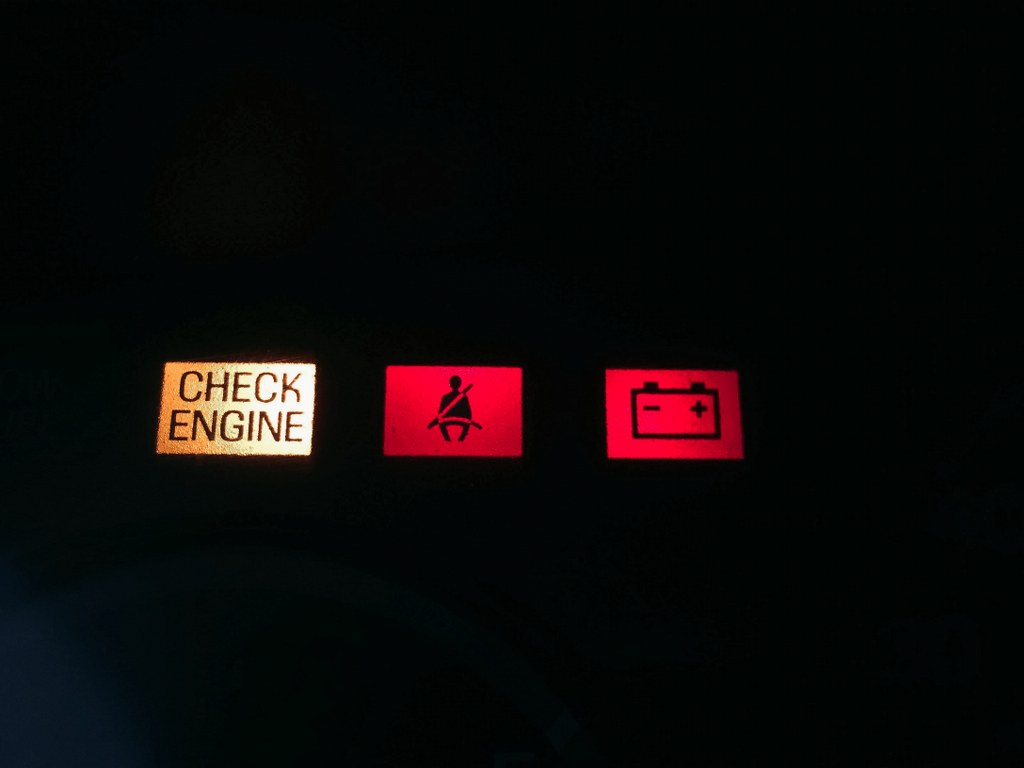

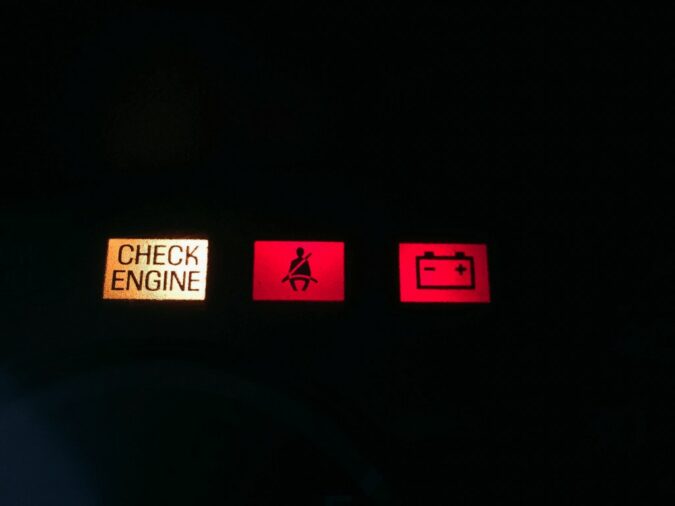

1. Check Engine Light

The first symptom when you are having a problem like the P0030 code will be the check engine light as you probably know. Without this code, you wouldn’t be here after all.

P0030

But another important thing is the other codes that you will get when you are having a problem like this. There will highly likely be issues with other codes as well connecting to the HO2S sensor.

So, if you have this P0030 code and other codes that indicate an issue with this sensor, then you know that you have to replace it. But still, you need to diagnose it first, more on that later on.

2. Frequent Misfires Until The Engine Warms Up

As you know, whenever the O2 heater circuit is not working, not only that you will receive the P0030 code, but you will also get a problem with frequent misfires on startup.

The heater element helps the O2 sensor to reach the optimum temperature and adjust the fuel to air mixture immediately. So, whenever this component is not working, you will experience misfires in your car.

But after the car warms up, these misfires will smoothen up and you will not experience problems. That’s why you should not panic a lot when you have a problem like this.

3. Rough Engine Idle At Start

Rough engine idle will be another symptom when you have the P0030 code and similar to the problem with the misfires that we have discussed above, the problem will disappear after the catalytic converter warms up.

P0030

This will last for a few minutes only until this heating process is complete. But still, even running the car like this even after a few minutes on start-up, can be detrimental for your spark plugs. So, keep this in mind.

4. Poor Fuel Economy

The last symptom of the P0030 code that we would like to cover is the poor fuel economy that you will get whenever there is a problem like this.

Since your O2 sensor will not be able to adjust the air to fuel mixture because the heating element is not working, you will be left with a car that drinks considerably more fuel than necessary and you will end up with a poor fuel economy.

Your MPG ratings will drop by a slight margin but you will be able to feel it. So, whenever you notice something abnormal like the smell of gas when the car starts up and there is a poor fuel economy, the problem is usually in this sensor and this sensor needs to be checked if you want to sort the P0030 problem.

But how you can diagnose this issue? Well, that’s what we are going to cover in the next chapter in-depth.

How To Diagnose And Fix A P0030 Chevy?

When it comes to the P0030 Chevy code diagnostics, it is often useful for you to have an understanding of how this O2 sensor works.

Each of these sensors has 4 wires. 2 of these wires are signal wires that go into the PCM of the car, while the other two are the power wires. One of them is the ground while the other is the one that powers up the O2 sensor.

The power wire supplies the O2 sensor with voltage and this wire goes to the fusebox. The ground wire goes to the PCM and through this wire, the PCM activates the heater element in this sensor.

So, the first thing you want to check is the fusebox and check if some of the fuses have popped, more precisely the O2 sensor fuse.

Now the next thing you want to check is the sensor itself, which in our case is the 1st sensor on the 1st bank. So, the sensor before the catalytic converter is the one that needs to be checked.

The next thing you will want to do is to test the ground wire and the voltage wire, you need to make sure that the sensor is getting the right voltage, as well as that none of the fuses is popped. In addition to this, you need to test if the ground wire has contact with the PCM.

Just plug a wire in the connector that serves as a ground and starts the car. If the test light pulses, then everything is good. You can also do this process with a multimeter as well.

If everything with the wires is good and there is a signal. The only thing left is that you have a faulty heater element in this sensor.

Cost To Fix The P0030 Chevy Code

So, what is the cost to fix the P0030 Chevy code on your Chevy or on any car out there? This really depends much on the problem itself.

The diagnostics will cost you about $120 for this issue, that’s for sure. If the wiring is bad or a fuse is broken, you might go for a cheaper repair.

If the O2 sensor is broken, you can expect to pay somewhere in the range of $150 to $350 depending on the make and model.

P0036 HO2S Heater Control Circuit Bank 1 Sensor 2

Now let’s cover another similar code, which is the P0036 HO2S Heater control circuit bank 2 sensor 2.

P0030

This is basically the same problem but with the second sensor that is mounted after the catalytic converter. Just for you to know.

Conclusion

In this article, we have covered quite a bit when it comes to the P0030 code. We learned the basics of car diagnostics as well as the P0030 code meaning. We learned what this code means as well as how it is represented.

More precisely the cause for this code quite often is the heater element or the circuit of this heater element. Then we covered the symptoms, the diagnostics process as well as the costs involved in this work.

F.A.Q

Now let’s answer some frequently asked questions.

What Does Code P0030 Mean

The code means that you have a problem with the heater element on the O2 sensor in your car. There are two sensors, in the scan tool, you will have precisely which of them is affected by this problem. Overall, the problem is with the heater core, that doesn’t work, so you will experience some rough engine work at start-up, as well as the check engine light.

How Do I Fix Code P0030?

Fixing the code is only possible after thorough troubleshooting and determining if the heater element is bad in the sensor. If the heater element is broken, the only fix will be replacing the sensor of your car with a new OEM component.

P0030 Chevy

This code means that you have a problem with the heater element of the O2 sensor on your Chevy. The only solution is to replace the whole sensor if you want to sort out the problem.

P0030 BMW

This code on your BMW means that there is a problem with the heater element of the O2 sensor. This heater element heats up the sensor to reach operating temperature sooner. So, when the heater element doesn’t work, you might experience some symptoms until the car gets to normal operating temperature.
