The transfer case control module plays an important role in differentiating between an all-wheel-drive (AWD) and a four-wheel drive (4WD) vehicle. A center differential can be found on AWD vehicles whereas a 4WD vehicle would come with a transfer case which would provide much-needed traction to it to traverse challenging terrain.
A transfer case control module lets the driver choose whether the power will be sent to both the front and rear wheels. In the event of a transfer case failure, your vehicle will display difficulties with staying in 4WD or switching between the two.
In the rear situation, it affects the rear differential as both of them are connected mechanically. Thus, a driver must understand how a transfer case control module works, the signs of its decay, and how to diagnose and fix it. In this article, we will discuss at length how a transfer case control module functions.
Moreover, we’ll also look into the symptoms of a bad transfer case control module. As well as, we’ll guide you on how you too can diagnose, troubleshoot, and fix a faulty TCCM unit. We’ll then go into detail concerning the reset and replacement process for a TCCM unit. And, how much is the transfer case control module replacement cost.
- What Is The Transfer Case Control Module?
- Transfer Case Control Module Location
- How Does The Transfer Case Control Module Work?
- Bad Transfer Case Control Module Symptoms
- How To Test The Transfer Case Shift Motor
- Resetting The Transfer Case Control Module
- Replacing The Transfer Case Control Module
- Transfer Case Control Module Replacement Cost
- Frequently Asked Questions (FAQ)
Transfer Case Control Module
The transfer case control module (TCCM) is in control of the general operation of a 4WD. The operation needs processing, executing, and confirming the completion of the process. It directly oversees the shifting in four-wheel-drive vehicle system operations. How does it do this?
The TCCM picks up on the truck’s speed and uses the transfer case mode to understand and determine the movements. Once the shift is completed, the TCCM will complete the process by turning on the transfer case encoder actuator. In addition, it turns off the front differential locking motor. In case the shifting is not possible, it triggers the selector switch which will blink for 45 seconds.
Transfer Case Control Module Location

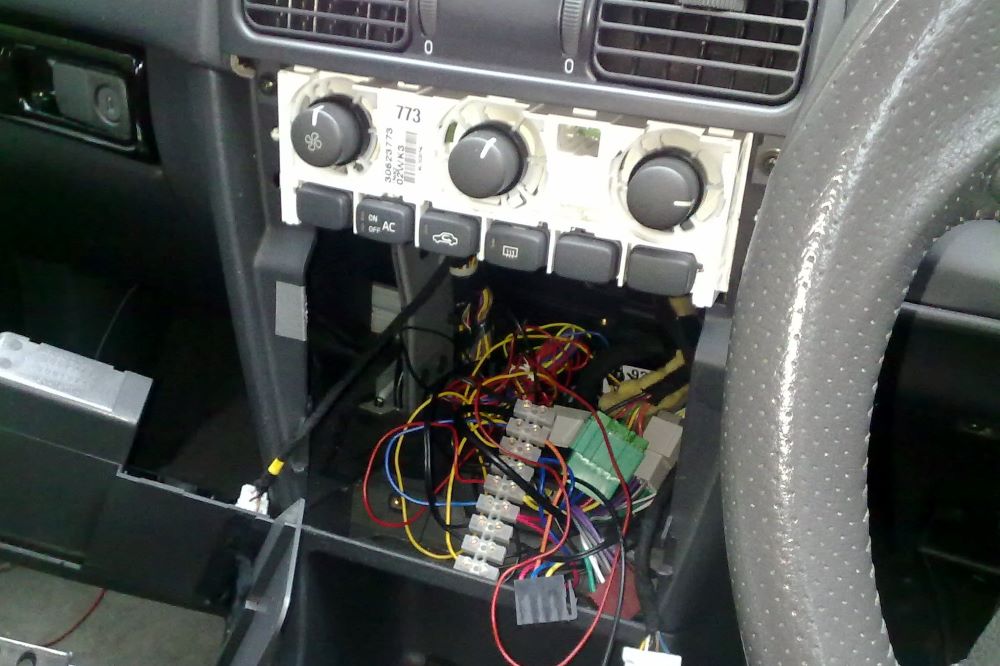

Generally, the TCCM can be found in the control panel on the steering column on the driver’s end. Here are a few more details that might help you in locating the TCCM…
1. General Placement of the Transfer Case Control Module
Understanding the role and operation of the transfer case control module is crucial for any vehicle owner.
However, it’s equally essential to know where this component resides within your vehicle. In most vehicles equipped with this module, particularly those with all-wheel drive, the transfer case control module is typically situated close to the control panel, specifically near the steering column panel.
Positioned from the driver’s perspective, this strategic location simplifies troubleshooting efforts for potential issues. Thus, knowing where your transfer case control module is can significantly aid you in identifying and rectifying any malfunctions.
2. Why the Transfer Case Control Module Location Matters
It might seem unimportant to know the precise location of the transfer case control module. After all, most drivers only worry about whether their car is running smoothly or not. However, knowledge of the module’s location is beneficial for numerous reasons.
First, it allows for efficient troubleshooting. If you’re experiencing issues such as unusual noises, improper gear shifting, or problems with the driveshaft or differential, you can quickly locate the module for an inspection. This quick action could potentially save you time and money on unnecessary professional consultations.
Second, the location near the driver’s position makes it easier for a mechanic or technically inclined driver to access the module if needed. This is especially important if you notice symptoms such as water accumulation in the transfer case, which could potentially damage the module and other nearby components. Early intervention can prevent severe damage and costly repairs.
3. How to Find the Transfer Case Control Module
Now that you understand why the module’s location matters, how do you go about locating it in your vehicle? As stated earlier, the transfer case control module is generally located near the steering column panel. Here is a simple step-by-step guide on how you can find it:
- Begin by sitting in the driver’s seat of your vehicle.
- Identify the steering column – the shaft that your steering wheel is mounted on.
- Look under the dashboard. The module is usually nestled under there, directly in line with the steering column.
- The transfer case control module typically resembles a small rectangular metal box or a plastic case with wiring connectors.
Remember that different vehicle makes and models may place the transfer case control module in slightly different locations, but the general vicinity of the steering column remains consistent. Always consult your vehicle’s manual or manufacturer for exact details.
4. When to Inspect Your Transfer Case Control Module
If you notice any odd behavior from your vehicle, such as the aforementioned unusual noises or improper gear shifting, it may be time to inspect your transfer case control module. It’s crucial to remember that you should only attempt to inspect or fix the module if you have the necessary technical knowledge and tools. If not, it’s best to consult with a professional mechanic.
On that note, if water is detected in your transfer case, you should immediately seek professional assistance. Water can severely damage your module and lead to more significant issues if not addressed promptly.
How Does The Transfer Case Control Module Work
Before jumping into the nitty-gritty of a malfunctioning transfer case control module and its symptoms, we will briefly explain how a TCCM functions. By understanding how it operates, one can have a better understanding of all the symptoms to look out for with their TCCM while driving.
As mentioned before, the purpose of a TCCM is to assist your vehicle switch between four-wheel drive and two-wheel drive. We also talked about how it does but here’s a broader perspective.
The transfer case control module uses speed sensors to read the speed of the vehicle, processes it, and then decide whether making the shift is possible (and safe). If you are driving slowly enough when the button is pressed to engage the 4WD, the module engages and lets the vehicle shift to four-wheel drive.
The same applies if you want to turn off the four-wheel-drive system. After judging the speed of your vehicle and determining whether you are moving slowly enough, it will shift the car back to 2WD.
This, in reality, is a very basic explanation of what this complex component is designed to do in your vehicle. The key thing to understand and remember here is that the TCCM is responsible for shifting the vehicle between two- and four-wheel drive. Therefore, there are moving bits coordinating inside it.
Bad Transfer Case Control Module Symptoms
Although they are designed to last for the service life of a vehicle, a transfer case control module may go bad. Similar to any mechanical part, when the TCCM fails, it will leave some signs to notify the owner of a problem budding within the system component. Check out the common symptoms that will let you know of a failed transfer case control module.
Transfer Case Control Module, Symptoms #1: Gear Shifting Issues
A major sign of a bad transfer case control module is having problems shifting between the two gear rangers. Though the problem can be caused by a somewhat simple trigger, like a damaged linkage or low fluid level, it generally indicates internal transfer case failure.
However, make sure to follow all the directions mentioned in the car’s user manual for operating the TCCM. Otherwise, you may make a wrong diagnosis. In many cases, before shifting into four-low, the car has to be stopped and the transmission needs to be placed on neutral. If not, you will hear a grinding sound when trying to switch gears.
Transfer cases on old cars were controlled by the body computer. But on most modern-day vehicles, they are electrically switched. This is why the symptoms your vehicle is displaying may be different from what someone else has faced.
Causes of Gear Shifting Issues
The root cause of gear shifting issues can often be traced back to a faulty transfer case control module (TCCM). The TCCM, a vital component in your vehicle’s four-wheel drive system, manages the power distribution between the front and rear wheels. A malfunctioning TCCM can mismanage this distribution, leading to gear-shifting problems.
The TCCM can fail for several reasons, including electrical faults, software glitches, or physical damage. Electrical faults often stem from short circuits or a poor connection in the wiring. Software issues could be due to faulty coding, while physical damage might result from regular wear and tear, or even accidents.
Diagnosing and Troubleshooting Gear Shifting Issues
Diagnosing gear-shifting issues involves a series of checks. Start by examining the condition of the transfer case. Look for signs of damage or leakage. Next, inspect the wiring around the TCCM. Worn-out or frayed wires can hinder communication between the TCCM and other parts of the vehicle.
Using a professional scanning tool, you can check for error codes related to the TCCM. These codes can provide insight into what might be causing the issue. Keep in mind, it’s important to use the car’s user manual to ensure proper operation of the TCCM to avoid misdiagnosis.
Repair and Fixing the Gear Shifting Issues (DIY)
When dealing with a faulty TCCM, repairs might not always be possible or recommended, especially if the issue is complex or requires specialized tools. However, if the problem is a simple wiring issue, you could potentially fix it yourself. First, disconnect the battery before working on any electrical component.
Inspect the wiring for any obvious signs of wear and tear. Replace any damaged wires or connectors. If the issue is software-related, a hard reset could solve the problem. To perform a hard reset, disconnect the battery, wait a few minutes, then reconnect it. This forces the vehicle’s systems to restart, potentially fixing minor glitches.
Repair or Replacement Costs
Repair costs for a faulty TCCM can vary greatly based on the extent of the damage and the make and model of your vehicle. If you’re lucky, a simple wiring repair might only cost around $100. However, if the TCCM needs to be replaced, costs can significantly rise.
On average, a new TCCM can range anywhere from $200 to $800, depending on the specific vehicle model. Labor costs also need to be factored in, which could add another $100 to $200 to the total bill. Therefore, depending on the issue, you could be looking at a total cost ranging from $100 to potentially over $1000.
Remember, these are rough estimates and actual costs may vary. It’s always best to get a quote from a trusted mechanic or repair shop.
Transfer Case Control Module, Symptoms #2: Difficulty Staying In 4WD
A transfer case that refuses to stay in 4WD is a major annoyance. The problem can be attributed to a bunch of external influences, such as a problem with the driveshaft, differential, or an internal transfer case issue.
Struggling to keep your vehicle in 4WD can be a sign of a faulty TCCM. But it’s not the only cause. This problem could also arise from issues with other components of your car. The driveshaft transfers torque and rotation in your vehicle. Problems here can affect gear shifting. Wear and tear, poor lubrication, or alignment issues can impact its functionality.
When these issues occur, maintaining 4WD can become difficult. The differential plays a critical role in your car’s operation. It divides the engine’s torque, allowing each output to spin at different speeds. If it’s damaged, you might face challenges in shifting and sustaining drive modes.
Internal issues within the transfer case can also affect the 4WD stability. Mechanical wear, insufficient lubrication, or contaminants can hinder its performance.
Causes of Difficulty Staying in 4WD
When your vehicle struggles to maintain 4WD mode, it’s often due to issues with the Transfer Case Control Module (TCCM). However, this symptom could also indicate problems with other vital components, such as the driveshaft, differential, or internal transfer case.
The driveshaft, responsible for transferring torque and rotation, could have been affected by wear and tear, poor lubrication, or alignment issues. The differential, which divides the engine’s torque, could be damaged.
Finally, internal issues within the transfer case, such as mechanical wear, insufficient lubrication, or contaminants, could hamper its functionality, thus affecting the 4WD stability.
Diagnosing and Troubleshooting Difficulty Staying in 4WD
To diagnose this problem, start by checking the condition of the driveshaft and differential. Look for visible signs of damage or unusual noises while operating the vehicle. Listen for grinding or clunking sounds – they often indicate issues with these components.
To confirm whether the TCCM is at fault, a diagnostic scan tool can be used to check for error codes. A problem with the TCCM will often result in specific error codes related to the module. Remember to also check the condition of the transfer case. Look for signs of leakage or damage, which could affect its performance.
Repair and Fixing Difficulty Staying in 4WD (DIY)
When it comes to repairing this issue, it’s important to understand the extent of the problem. For simple issues, such as low lubrication, you could fix it yourself by adding the required lubricant. If the driveshaft or differential is damaged, it’s better to leave it to a professional unless you have advanced automotive repair skills.
If the TCCM is the problem, you may be able to perform a hard reset, as mentioned earlier. This involves disconnecting the vehicle’s battery, waiting a few minutes, and then reconnecting it. However, if the TCCM needs to be replaced, it’s recommended to have this done by a professional.
Repair or Replacement Costs
The cost of repairing or replacing components can greatly vary. Minor repairs, such as lubrication or alignment adjustments, may cost as little as $100 to $200. If the driveshaft or differential needs to be replaced, the costs could rise to between $300 and $1000, including labor.
The cost to replace a faulty TCCM is also significant, with the module alone costing between $200 and $800, plus additional labor costs. Keep in mind that these are rough estimates and costs can vary based on the make and model of your vehicle, as well as the specific repair shop you choose. Always obtain a quote before proceeding with repairs.
Transfer Case Control Module, Symptoms #3: 4WD Will Not Engage/Disengage
A malfunctioning transfer case control module may not be the only reason a 4WD system does not engage or disengage. The issue can stem from a faulty shift mechanism to a fault in the control system. Alternatively, there is something wrong with the interior of the transfer case.
Experiencing issues when trying to engage or disengage the 4WD system could signal problems beyond a faulty TCCM. Multiple factors could contribute to this, ranging from mechanical to control system faults.
One such cause could be a malfunctioning shift mechanism. This mechanism orchestrates the transition between different drive modes. If it’s compromised, your vehicle may struggle to switch between 2WD and 4WD, causing a noticeable disruption in its performance.
Another potential culprit could be the control system. As the central hub coordinates various vehicle functions, any faults here can influence the working of the transfer case. An error in the control system can result in your 4WD failing to engage or disengage as it should.

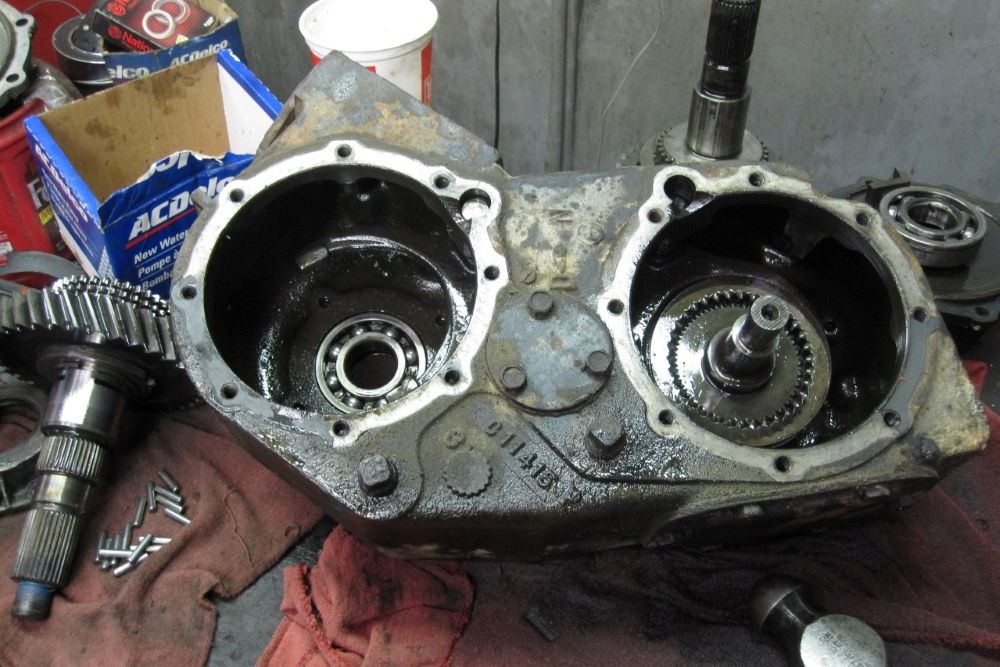

Lastly, the issue might be internal to the transfer case. Internal parts wear over time, and without proper maintenance, they can break or malfunction. This can also lead to issues with engaging or disengaging the 4WD.
Causes of 4WD Not Engaging/Disengaging
A 4WD system that refuses to engage or disengage could be indicative of various problems, not just a faulty Transfer Case Control Module (TCCM). This symptom can be traced back to a malfunctioning shift mechanism, a fault within the control system, or an internal issue within the transfer case itself.
The shift mechanism, responsible for transitioning between different drive modes, might be compromised due to wear and tear or mechanical failure. Likewise, the control system could be faulty – with it being the hub coordinating various vehicle functions, any errors can adversely affect the transfer case’s operation.
Additionally, internal parts of the transfer case, such as gears or chains, can wear over time, causing engagement or disengagement issues if they malfunction.
Diagnosing and Troubleshooting 4WD Not Engaging/Disengaging
To diagnose and troubleshoot this issue, begin with a visual inspection of the shift mechanism for any signs of physical damage. Use a diagnostic scan tool to identify any error codes related to the control system or TCCM.
Listening to your vehicle can also provide important clues. If you hear abnormal noises when attempting to engage or disengage the 4WD, this could point toward internal issues within the transfer case. For a thorough diagnosis, you may need to consult with a professional mechanic.
Repair and Fixing 4WD Not Engaging/Disengaging (DIY)
Depending on the cause, some of these problems can be resolved through DIY solutions. For instance, if the issue lies with the shift mechanism, replacing the damaged part might solve the problem, granted you have the necessary skills and tools.
However, if the issue originates from the control system or the TCCM, a hard reset may rectify the issue. This involves disconnecting the vehicle’s battery for a few minutes and then reconnecting it. For more complex problems, like internal transfer case issues, professional help is recommended.
Repair or Replacement Costs at a Workshop
The costs for repairing or replacing components associated with the 4WD system can greatly vary. Minor repairs like replacing parts of the shift mechanism may cost around $200 to $400, including labor. However, if the issue is with the control system or the TCCM, the replacement cost could range between $200 and $800 for the parts alone, plus additional labor costs.
For major repairs like internal transfer case issues, you could be looking at a bill upwards of $1000, depending on the severity of the damage. As always, these are only estimates and actual costs may vary based on vehicle make and model, as well as your choice of repair shop. It’s always advisable to get a quote before proceeding with any repairs.

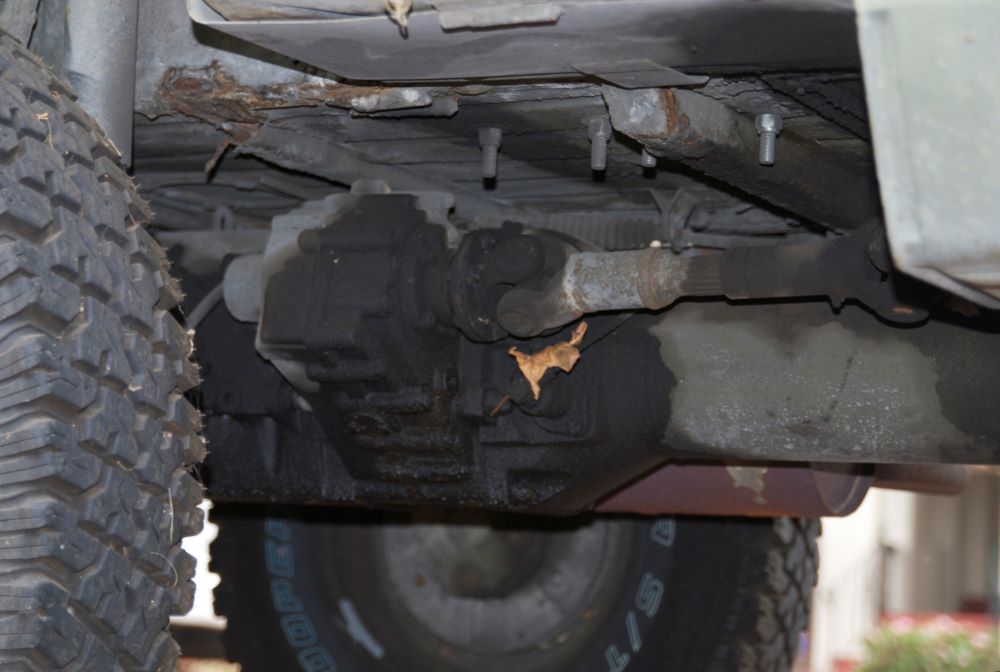

Transfer Case Control Module, Symptoms #4: Puddle Formation Under The Transfer Case’s Location
Only a leak can be the reason behind a greasy puddle build-up under your car, and the culprit can be a bad transfer case control module. Check if the leak is coming from the TCCM by raising the car on jacks and performing a visual inspection. It should be easily visible at the rear end of the transaxle assembly or transmission.
Leaks are generally gradual so you may not see a puddle straight away. But over some time, the TCCM gets dangerously low on oil, causing overall destruction of the internal parts. This happens slower on an automatic transmission as transfer cases come with an oil pump – there are none on a manual transmission.
Causes of Puddle Formation Under The Transfer Case’s Location
The presence of a greasy puddle under your vehicle can signal a leak within the transfer case. This leak can often be traced back to a faulty Transfer Case Control Module (TCCM). However, it could also be the result of damaged seals or gaskets, or even a crack in the transfer case itself.
Leaking fluid is detrimental to your vehicle because it reduces lubrication, causing friction and heat to increase, which can lead to severe damage to internal components over time. This is particularly problematic in manual transmission vehicles as they lack the oil pump found in automatic transmissions, which can help mitigate oil loss.
Diagnosing and Troubleshooting Puddle Formation
To diagnose a leak, start by performing a visual inspection. Raise the car on jacks and inspect the TCCM located at the rear end of the transaxle assembly or transmission. Look for obvious signs of leakage like wet or greasy spots. Remember, leaks can be gradual, so you might not notice a puddle immediately.
You could also inspect the condition of the fluid. Healthy transfer case fluid should be clear and smell slightly sweet. If it’s dark or has a burnt odor, this may indicate a problem.
Repair and Fixing Puddle Formation (DIY)
If you identify a leak from the TCCM, replacing the damaged seals or gaskets could resolve the issue. This requires intermediate mechanical skills, as you’ll have to disassemble parts of the transfer case to reach them.
If the leak stems from a crack in the transfer case, a DIY repair might be challenging. Depending on the crack’s size and location, professional repair or even complete replacement may be necessary.
Repair or Replacement Costs
Repair costs will depend on the leak’s origin. Replacing seals or gaskets might cost between $200 and $400, depending on the complexity of the job.
However, if there’s a crack in the transfer case, repair might not be feasible, and a complete replacement might be necessary. A new transfer case can cost between $1,500 and $2,500, including parts and labor.
These are rough estimates, and costs can vary depending on the vehicle’s make and model and the repair shop. As always, obtain a quote before proceeding with any repairs.
Transfer Case Control Module, Symptoms #5: Weird Grinding, Humming, Or Growling Noises
A telltale sign of an issue in your car is weird sounds coming from it that were not there before. Unnatural sounds can be irksome, and they do usually indicate a bigger problem cooking under the hood. If you hear a growling, humming, or grinding sound that changes with the speed of your vehicle, it might be coming from the TCCM.
The reason behind this may be a mechanical fault, such as a bad bearing causing sounds, a loose chain, damaged gears, or a low fluid level.
A loose chain on a transfer case control module can rub a hole at the top of the housing. This is why there are rebuild kits you can buy. They come with new front half and chain. Changing the front case half and chain should, however, be performed by a licensed mechanic rather than a DIY enthusiast.
Causes of Weird Grinding, Humming, or Growling Noises
Unusual noises, including grinding, humming, or growling sounds, can be indicative of several issues within your vehicle. These may be the result of a mechanical fault within the Transfer Case Control Module (TCCM), such as a bad bearing, a loose chain, or damaged gears.
Bearings within the TCCM can wear out over time or become damaged, leading to a grinding or growling noise. A loose chain within the TCCM can create a humming or grinding sound, and if severe enough, it can rub a hole in the top of the housing.
Damaged gears can make a grinding noise, especially when shifting between drive modes. Low fluid levels can also cause similar sounds as components lose necessary lubrication and start to grind against each other.
Diagnosing and Troubleshooting Grinding, Humming, or Growling Noises
Diagnosing these noises involves a process of elimination. Start with a visual and auditory inspection of your vehicle. Pay close attention to the noises and their relation to the speed or mode of your vehicle. This can provide valuable clues about the source of the issue.
Check the fluid level in the TCCM. If it’s low, this could be the cause of the noise. Next, look for visible signs of damage or wear on the transfer case. An advanced diagnostic tool can help pinpoint the issue more accurately, but it may require professional assistance.
Repairing Grinding, Humming, or Growling Noises (DIY)
For DIY enthusiasts, always start with the easiest and least costly potential solutions. Refilling or changing the fluid, if low or old, might be within your capabilities. However, if the issue involves internal components like bearings or gears, you may need to consult a professional.
Repair or Replacement Costs
As for the cost, smaller fixes, like fluid changes, are relatively inexpensive. But for more significant issues involving internal components, costs can escalate.
For instance, replacing bearings might range from $200 to $500, depending on the vehicle’s make and model. In contrast, fixing a loose chain or damaged gears might cost anywhere from $500 to $1,000. Remember, these are just estimates, and actual costs can vary based on various factors.
Finally, if the TCCM needs to be replaced, you might be looking at a cost of around $1,000 to $2,000, including labor. Always remember to get a quote before committing to any repair work.
Transfer Case Control Module, Symptoms #6: 4WD Warning Light Illuminates
On some vehicles, there is a “service-four-wheel-drive” message that lights up on the dashboard whenever the system is not functioning optimally. Other vehicles will just keep the 4WD light on till the problem has been fixed. Needless to say, the issue can be a bad transfer case control module.
One of the more direct indications of potential issues with the transfer case control module is when your vehicle’s “service-four-wheel-drive” message or 4WD warning light illuminates on your dashboard.
Various vehicles come equipped with a “service-four-wheel-drive” alert. This specific message is designed to notify you when your 4WD system isn’t functioning at its best. If you notice this alert, it’s a clear sign something is amiss and needs your attention.
For some other vehicles, the approach is slightly different. Instead of the service message, the 4WD warning light will remain illuminated until the issue causing the malfunction is resolved. This persistent illumination serves as a constant reminder that your vehicle’s 4WD system needs servicing.
The root of the issue causing these alerts could very well be a malfunctioning transfer case control module. The TCCM is a pivotal part of your 4WD system, and any issues with it could trigger these warning signs on your dashboard.
Causes of 4WD Warning Light Illumination
There are several potential causes for the illumination of the 4WD warning light or a “service-four-wheel-drive” message. The most common cause is a malfunctioning transfer case control module (TCCM). The TCCM oversees the operation of the 4WD system, and a failure can easily trigger a warning light.
However, other causes can also include electrical issues, mechanical faults within the transfer case, or even issues with the vehicle’s sensors.
Diagnosing and Troubleshooting 4WD Warning Light Illumination
The first step in diagnosing a 4WD warning light is to use an onboard diagnostic (OBD) scanner. These devices can read error codes that are stored when the light is triggered. The error code can point you toward the nature of the problem.
If the TCCM is indeed the cause, further diagnosis might involve a physical inspection. Looking for signs of corrosion, damage, or loose connections can help identify the issue.
Repairing 4WD Warning Light Illumination (DIY)
Repairing a 4WD warning light or “service-four-wheel-drive” message often depends on the exact cause of the problem. For instance, if the issue is related to an electrical fault, such as a loose connection, the repair might be as simple as securing the connection.
However, if the TCCM itself is faulty, the repair might involve a replacement. This is a complex task and is typically not recommended for DIY unless you have significant mechanical experience.
Repair or Replacement Costs
The costs associated with fixing a 4WD warning light or “service-four-wheel-drive” message will vary depending on the underlying problem. For simple electrical issues, the cost might be minimal – perhaps $100-$200 for diagnostics and labor.
However, if the TCCM needs to be replaced, the costs can be substantial. Replacement parts can range from $200 to $600, and labor costs can add another $100 to $200. Remember, these are just estimates, and the actual costs can vary based on your vehicle’s make and model and the repair shop’s rates.
Transfer Case Control Module, Symptoms #7: Four-Wheel Drive (4WD) Service Message
This message may pop up on the DIC, or Driver Information Center from time to time. Service or maintenance messages normally go away after the engine has been restarted after turning it off once. However, the message can be indicative of a bad TCCM and/or encoder motor or button pack.
Another distinct symptom indicating trouble with your TCCM is the appearance of a Four-Wheel Drive Service message on your Driver Information Center (DIC). This message can give you key insights into potential issues.
The DIC serves as your vehicle’s communication center, and a 4WD service message appearing here isn’t something to brush off. Even if these maintenance messages often disappear after restarting the engine, it’s crucial not to ignore them.
The underlying issue causing this message could be due to a faulty TCCM. However, it’s not the only potential culprit. The encoder motor, which plays a crucial role in shifting between drive modes, could be malfunctioning. Alternatively, issues might lie with the button pack, another integral component in your vehicle’s 4WD system.
Causes of Four-Wheel Drive Service Message
When the Four-Wheel Drive Service message shows up on the Driver Information Center (DIC), it could be due to a variety of reasons. The most common cause is a problem with the transfer case control module (TCCM).
The TCCM oversees the operation of the 4WD system, and any malfunction here can trigger the service message. However, other components such as the encoder motor, which is responsible for shifting between drive modes, or the button pack, could also be at fault.
Diagnosing and Troubleshooting the Four-Wheel Drive Service Message
Diagnosing the root cause of a Four-Wheel Drive Service message involves a systematic approach. Start with an onboard diagnostic (OBD) scanner, which can read stored error codes and guide your troubleshooting process.
If the OBD scanner suggests a TCCM fault, further inspection of the TCCM for signs of damage or loose connections might be necessary. If the encoder motor or button pack is suspected, these components will also need to be inspected.
Repairing Four-Wheel Drive Service Message (DIY)
The repair process will depend on the cause of the problem. If it’s a simple issue such as a loose connection, securing the connection might resolve the issue. However, if a component like the TCCM, encoder motor, or button pack is faulty, a replacement might be necessary.
These tasks are complex and usually not recommended for a DIY approach unless you have significant mechanical experience.
Repair or Replacement Costs
The costs for repairing a Four-Wheel Drive Service message can vary greatly. Simple issues might only require a couple of hundred dollars to diagnose and fix. However, if components like the TCCM, encoder motor, or button pack need replacement, the costs can rise significantly.
For example, a new TCCM can range from $200-$600, an encoder motor around $100-$400, and a button pack from $50-$200. Labor costs can add an additional $100-$200. Keep in mind these are estimates and actual costs can vary based on your vehicle’s specifics and the repair shop’s rates.
Transfer Case Control Module, Symptoms #8: Engine Hesitates After Ignition
Several things can cause hesitation in an engine, and a bad TCCM is one of them. If you’re driving and the engine is stuttering too much, it could be a sign of a problem in the transfer case control module. This might happen as a result of a wrong signal sent to the transmission by the TCCM. You have to change the TCCM to fix this issue.
Typically, a transfer case control module will fail due to a leak somewhere, lack of regular maintenance, or regular wear and tear. We highly suggest addressing the fluid leaks as soon as they occur to prevent internal TCCM damage. Replacing the fluid of the transfer case regularly is extremely important. Check the owner’s manual for the service interval specific to your car’s transfer case.
Understand the symptoms of transmission failure because they do tend to mimic transfer cases. As a vehicle owner, you can get confused pretty quickly. Don’t jump to conclusions and try to fix a problem that isn’t even there.
Causes of Engine Hesitation After Ignition
Engine hesitation after ignition can be due to a variety of factors, with a faulty transfer case control module (TCCM) being one of them. In this case, the TCCM could be sending incorrect signals to the transmission, causing the engine to stutter.
This issue might be due to a fluid leak, lack of regular maintenance, or general wear and tear of the TCCM. It’s essential to address fluid leaks promptly to prevent further TCCM damage, and regular fluid replacement is critical for the transfer case’s long-term health.
Diagnosing and Troubleshooting Engine Hesitation
To diagnose the cause of engine hesitation, you might need to utilize an onboard diagnostics (OBD) scanner to check for any error codes related to the TCCM or transmission. Visual inspection for fluid leaks or other obvious signs of damage in the transfer case can also be beneficial.
Additionally, be mindful of other symptoms that might indicate transmission issues, as these can sometimes mimic transfer case problems.
Repairing Engine Hesitation (DIY)
The repair approach for engine hesitation will largely depend on the root cause. If the issue stems from a fluid leak, the leak will need to be identified and repaired, followed by a fluid change. If the TCCM is faulty and sends incorrect signals to the transmission, it may need to be replaced.
These tasks, particularly TCCM replacement, can be complex and might require professional assistance unless you have significant mechanical knowledge and experience.
Repair or Replacement Costs
The costs associated with addressing engine hesitation can vary widely. If the problem is due to a fluid leak, costs might be relatively low, with only the cost of fluid replacement and labor for leak repair. However, if the TCCM needs to be replaced, you could be looking at costs from $200 to $600 for the part alone, with labor costs adding another $100 to $200.
Keep in mind, these figures are estimates and can vary based on vehicle specifics and local repair shop rates.
Transfer Case Control Module, Symptoms #9: Noticeable Front Tire Wear
Significantly accelerated wear on the front tires of your vehicle might be a telltale sign of a malfunctioning transfer case control module. Although not a direct correlation, it’s a symptom worth noting.
The transfer case control module plays a pivotal role in regulating the operation of your car’s transfer case, which in turn, determines when and how your vehicle transitions from a 2-wheel drive (2WD) to a 4-wheel drive (4WD). A flaw in the module can disrupt this regulation, often causing your car to remain stuck in 4WD.
While 4WD offers greater traction, it also demands more effort from your vehicle’s front tires. This is because, in most 4WD vehicles, the front tires handle the majority of the steering and braking tasks.
Consequently, should your car remain in 4WD due to a faulty TCCM, the undue strain placed on the front tires could result in them wearing down at a much faster pace compared to the rear tires.
Causes of Noticeable Front Tire Wear
Noticeable front tire wear is an indication that your vehicle might be experiencing an issue with its transfer case control module (TCCM). The TCCM is instrumental in controlling the operation of your vehicle’s transfer case, which manages the shift between 2-wheel drive (2WD) and 4-wheel drive (4WD). If the TCCM is malfunctioning, your vehicle might get stuck in 4WD mode.
In 4WD mode, the front tires bear a greater burden as they perform most of the steering and braking functions. Therefore, if the vehicle remains in this mode due to a faulty TCCM, the added strain on the front tires could lead to accelerated wear compared to the rear tires.
Diagnosing and Troubleshooting Noticeable Front Tire Wear
To diagnose this issue, one should first visually inspect the tires for abnormal wear patterns. If the front tires show excessive wear compared to the rear ones, it might indicate a problem with the TCCM or the transfer case. Also, using an onboard diagnostics (OBD) scanner to check for any error codes related to the TCCM could be beneficial.
Repairing Noticeable Front Tire Wear (DIY)
Fixing this issue could range from simple recalibrations to more involved replacements. If the TCCM is the cause, recalibrating or replacing it might solve the problem. However, these tasks can be complex and may require professional assistance. If the problem is due to the transfer case itself, it could require a more costly and extensive repair or replacement.
Repair or Replacement Costs
The costs to address this issue can vary widely. TCCM replacement can range from $200 to $600 for the part alone, with labor costs adding another $100 to $200. However, if the problem lies with the transfer case itself, repairs or replacements could cost significantly more, potentially reaching into the thousands.
As always, these figures can vary based on the specifics of the vehicle and the rates of the local repair shop.
Transfer Case Control Module, Symptoms #10: Decline in Fuel Efficiency
A sudden dip in your car’s fuel efficiency could also point toward a failing transfer case control module. Remember, the TCCM is instrumental in managing the switch between 2WD and 4WD. When functioning correctly, it ensures the vehicle operates in 2WD when four-wheel traction isn’t necessary, conserving fuel in the process.
However, a compromised TCCM might cause your vehicle to stay locked in 4WD. Operating in 4WD involves more components than 2WD, which leads to an increased demand for fuel to power the drivetrain. Thus, your vehicle can consume significantly more fuel than it would normally, causing a noticeable drop in its miles-per-gallon ratio.
To put it simply, when your car is stuck in 4WD due to a malfunctioning TCCM, the added mechanical action necessitates more fuel. This results in decreased fuel economy, which, in the long run, could lead to increased fuel expenses.
Abnormally poor gas mileage is, therefore, a symptom you should watch out for. If you notice a sudden drop in your car’s fuel efficiency accompanied by other symptoms related to the TCCM, it might be wise to have your vehicle examined by a professional mechanic.
Remember, a faulty TCCM doesn’t just affect your car’s performance. It can also hit you in the wallet, both in terms of increased fuel costs and tire replacement expenses. Therefore, understanding these symptoms and seeking timely professional help can save you from more significant hassles down the line.
Causes of Decline in Fuel Efficiency
A sudden decrease in your vehicle’s fuel efficiency could be an indication of a failing transfer case control module (TCCM).
The TCCM plays a crucial role in controlling the operation of your vehicle’s transfer case, which manages the shift from 2-wheel drive (2WD) to 4-wheel drive (4WD). A malfunctioning TCCM could cause your vehicle to remain in 4WD mode even when it’s not necessary.
Being in 4WD mode requires more power, as it involves more components of your vehicle, leading to increased fuel consumption. Thus, if your car is stuck in 4WD because of a faulty TCCM, it could consume significantly more fuel, causing a noticeable decrease in fuel economy.
Diagnosing and Troubleshooting Decline in Fuel Efficiency
To diagnose this issue, monitor your vehicle’s fuel consumption closely. If you notice a sudden decline in fuel efficiency, especially if it’s accompanied by other symptoms such as difficulty in shifting between 2WD and 4WD or unusual noises, it could indicate a problem with the TCCM.
Using an onboard diagnostics (OBD) scanner can help detect any error codes related to the TCCM, which can further confirm the issue.
Repairing Decline in Fuel Efficiency (DIY)
Resolving this issue might involve recalibrating or replacing the TCCM. However, these tasks can be complex and typically require professional help. If the problem lies with the transfer case itself, it could necessitate a more costly and extensive repair or replacement.
Repair or Replacement Costs
The costs of addressing this issue can vary widely. The replacement of a TCCM can range from $200 to $600 for the part itself, with labor costs adding another $100 to $200. If the problem lies with the transfer case, repairs or replacements could potentially reach into the thousands.
As always, these figures can vary based on the specifics of your vehicle and the rates of the local repair shop.
Bad Transfer Case Control Module Or Bad Transmission
The transfer case control module is a part of a vehicle’s drivetrain and they both have separate functions.
Despite this, the signs of a transmission failure mirror those of a faulty transfer case control module. This can confuse vehicle owners who are trying to repair their cars themselves. On that note, do not tamper with any of the components of your vehicle if you do not have adequate knowledge about it.
To avoid any confusion, get a professional to do a proper diagnosis of your vehicle if you suspect a transfer case issue. Not only do they have the proper tools and years of experience to back it up, but they will also be able to assess the condition of your vehicle more efficiently.
Keep in mind that bad 4WD locking hubs can be considered a part of transfer case problems. If they cannot engage, they damage the front differential too. Side note: A few older transfer case systems, like early 90s Fords, will cause the Powertrain Control Module (PCM) to use another shift schedule when the “Low Range” indicator is illuminated.
As a result, the vehicle shifts through all gears at low speeds. Interestingly enough, something as simple as a bad fuse can cause this problem.
Can A Bad Transfer Case Control Module Damage The Transmission
There have been instances where catastrophic transfer case failures can harm other components of your vehicle, like the transmission. It is a good idea to check any known problems within your car as soon as they pop up to avoid the problems from piling up and doing more damage.
A few Ford trucks were experiencing difficulties with their electronic modules. It would put the vehicle in 4WD at highway speed randomly, causing unprecedented destruction. There is a dealer program about this issue, so get your VIN checked at your local Ford dealership to understand if your car is at risk.
What To Do When Transfer Case Control Module Goes Bad
If you see any of the symptoms mentioned above, you must have the transfer case control module checked immediately. A simple diagnostic test for a vehicle generally runs anywhere between $85 to $120. However, some mechanics report that even the diagnostics cost can climb up to $400.
We suggest checking in with your mechanic first to know what to expect. Not all auto shops charge for a diagnostic if you promise to let them perform the repair work if any issues are suspected.
After the initial diagnostics, a suspected case of transfer case control module will call for the TCCM to be removed, disassembled, and checked for signs of mechanical or physical damage.
The service technician will decide if it is possible to fix the assembly or if you have to change it altogether. When having a module checked, the first thing anyone should do is perform an in-depth code scan of it.
There are tons of parts with motors and sensors in the transfer case control module, so performing a code scan can help you understand what is up with the system for a cheap and quick repair. If you can, repair the module instead of replacing it as the latter is rather pricey.
It is a big part of any vehicle, especially if you need to switch between 4WD and 2WD, so having a functioning one is quite important.
How To Test Transfer Case Shift Motor?
The transfer case shift motor is the most common culprit behind any issues with the transfer case control module. This guide can be applied to any vehicle model and make TCCM testing. To start the test, however, you need a handful of common mechanic tools, like jack stands and jacks as well as a test light.
Remove the transfer case shift motor. Raise the vehicle from ground level and support it using jack stands. Slip under and find the transfer case motor. It resembles a window motor in appearance and sits on the back of the case. There are generally three to four bolts securing it in place.
Take out the bolts and unplug the linked connectors. Remove the motor and place it next to you safely to continue with the rest of the test.
Use a test light to test the transfer case motor. Locate the orange and yellow wire on the actuator as that is what controls the motor. These 2 wires are connected to the motor itself. Adjust the Ohm to 200 and place the probes on the yellow and orange wires.
The reading should be between 2.2 to 2.7. Anything over this range can be considered abnormal and lets you know that you have a bad shift motor.
Check the transfer case motor using a battery pack. An alternative way to check the transfer case motor is by using a portable jumper pack or a car battery. Take the multimeter leads and link them to the jumper pack terminals. Ensure the probes aren’t crossing each other. The point of this test is to get the gear to move around.
This is why the probes must be connected to the yellow and orange wires. The transfer case motor gear must move in both directions freely. If it is the other way around, you need to replace the lousy shift motor situation going on. A transfer case shift motor goes for around $50 to $80.
Transfer Case Control Module Reset
Car maintenance and repairs can be daunting tasks, particularly when dealing with complex components like the transfer case control module (TCCM). This guide provides a step-by-step approach to resetting your TCCM, ensuring the best performance from your vehicle.
Step 1: Preparation
Start by ensuring that your vehicle is parked and turned off. Remove the key and press your transmitter’s block switch to open the door. Press this same button twice within a few seconds, then close the door.
Step 2: Turning the Key
Now, put your key back in the ignition. Swiftly turn the key to the ‘ON’ position, then back to the ‘OFF’ position within five seconds. Repeat this four times to prime the TCCM for the reset procedure.
Step 3: Pressing the Reset Button
Find the reset button, often located near the driver’s side instrument panel. Press and hold this button for at least one second. Repeat the ignition switch process: turn the key from ‘OFF’ to ‘ON’ and back again twice.
Step 4: The Reset Process
After completing Step 3, turn your key to the ‘OFF’ position. While the key is in the ‘OFF’ position, press the lock button on your transmitter. Upon performing this step, a message reading ‘CHECK TRANS’ should display for a few seconds. This indicates that the TCCM is resetting.
Step 5: Completing the Reset Procedure
Finally, to complete the TCCM reset procedure, turn your key once from ‘ON’ to ‘OFF’. If the ‘CHECK TRANS’ warning continues to appear on the display, this signifies that the problem may still be unresolved.
Step 6: Common TCCM Troubleshooting Considerations
If the reset procedure does not resolve your TCCM issues, you may need to employ further troubleshooting methods, such as disconnecting the battery and using jump cables or removing and reinserting the TCCM fuse.
While resetting the TCCM is generally straightforward, there may be situations where problems persist. In such cases, it’s crucial to seek professional assistance. Qualified technicians can diagnose and resolve complex issues that a simple reset might not fix.
In summary, the transfer case control module is an integral part of your vehicle’s 4WD system. Understanding how to reset this component can help you maintain your vehicle’s performance and prevent future problems.
By following this guide, you’ll have a clear roadmap to resetting your TCCM and getting your vehicle back on track. Always remember, when in doubt, it’s best to consult with a professional to avoid damaging your vehicle’s components.
Transfer Case Control Module Replacement
When your vehicle’s transfer case control module (TCCM) starts showing signs of failure, your vehicle’s performance may be significantly affected. If resetting the module doesn’t resolve the problem, it might be time to replace it. Here’s a detailed step-by-step guide to help you replace the TCCM of your vehicle.
Before starting, gather the necessary tools:
- Phillips head screwdriver
- Flathead screwdriver
- Ratchet set
- Torque wrench
- A new transfer case control module
It’s essential to have a new transfer case control module ready, as the old one will be removed.
Step 1: Safety and Preparation
First and foremost, park your vehicle on a flat and level surface. This ensures that your car is stable while you’re working on it. Next, engage the parking brake for additional safety. To prevent any accidental electrical discharge or shock, disconnect the negative battery cable before proceeding.
Step 2: Locating the Transfer Case Control Module
The TCCM is typically situated near the transfer case of your vehicle. The transfer case is usually mounted behind the engine and transmission. Once you’ve located the transfer case, identifying the control module should be straightforward.
Step 3: Disconnecting the Wiring Harness
The TCCM is linked to the rest of your vehicle through several cables or wires, which together form the wiring harness. To disconnect this, carefully unlatch or unscrew any connectors linking these cables to the TCCM.
Step 4: Removing the Old Module
After disconnecting the wiring harness, you’re ready to remove the old TCCM. Use your Phillips head screwdriver to unscrew any screws that secure the module in place. For some vehicles, a flathead screwdriver might be necessary to detach the electrical connector. To remove any bolts fastening the module, use the ratchet from your ratchet set.
Step 5: Installing the New Transfer Case Control Module
Once you’ve successfully removed the old module, it’s time to install the new one. Place the new TCCM in the same position as the old one and secure it using the same bolts or screws. Remember to reconnect the wiring harness and check that all the connections are firmly in place.
Utilize your torque wrench to tighten the bolts to the correct specification. Lastly, reconnect the electrical connector.
Step 6: Testing the New Module
After installing the new TCCM, you should test its operation. Start your vehicle and monitor its performance. If you notice any abnormalities or the issue persists, it may be wise to consult a professional mechanic to diagnose any other potential problems.
Step 7: Wrapping Up
Once you have confirmed that the new TCCM is working correctly, it’s time to wrap up. Reconnect the negative battery cable that you disconnected at the beginning. Make sure that any loose wires are neatly secured to prevent any future complications. Once done, give yourself a pat on the back, because you’ve successfully replaced your transfer case control module!
Remember, working on your vehicle’s electrical system can be complex and may require a certain level of skill. If at any point you feel uncomfortable performing these tasks, please consult with a trained mechanic.
Transfer Case Control Module Replacement Cost
If you can locate the source of the problem and repair it, you will be lucky enough to get away without dealing with the hassle and price of replacing the TCCM altogether. However, if the TCCM fails or sustains mechanical damage, your only option may be to replace it. Changing a transfer case typically costs between $2,500 to $2,750.
It can be less expensive on some vehicles, rounding up to $2,300, while other jobs will be more complicated and run for $2,900 at the very least. Thus, the cost varies vastly based on the details of your problem.
1. Labor Costs For Replacing A Transfer Case Control Module
Labor costs associated with replacing a transfer case can be rather high as this is a lengthy fix. The average labor costs range between $435 – $650. To get a better idea of the labor costs, to have to understand everything that is involved with a repair. First things first; the oil has to be drained from the TCCM so the driveshafts can be removed.
After that, the TCCM has to be disconnected from the drivetrain as well as all the other electronic components. A transmission jack is used to support the transfer case so the mounting bolts can be safely extracted. Once the TCCM has been removed, it will be disassembled, checked, and cleaned.
If the mechanic discovers any leaks or damage, they will determine if it is possible to repair the part. If not, you have to pay to get a new part installed. Moreover, the various gaskets and seals have to be changed and the driveshaft cleaned before they can reassemble the parts and refill the transfer case.
2. Parts Cost For Replacing A Transfer Case Control Module
The main expense in replacing a transfer case comes from the new transfer case itself. A rough estimate of these parts is about $1,700 to $2,400, determined by the make and model of your vehicle.
Some owners want to save some money by buying a used part. Although this can save you a few coins, the purchase is risky. Only do this if you get some sort of warranty with the part or on the work. You can surely still go on a hunt for quality secondhand pieces.
Transfer Case Control Module: Final Thoughts
So if you see any of the signs given above, test and repair the transfer case motor before the problems exacerbate. The problems can be quite severe, like damage to the transmission. This is why one should have an idea about the transfer case control module when owning a vehicle.
However, your primary response to noticing two or more symptoms mentioned above should be to run an in-depth diagnosis on the car with a high-end scan tool. The TCCM contains many system components with sensors and actuators. Running a scan beforehand will save you money.
Transfer Case Control Module Essential Knowledge
- The transfer case control module is a critical part of a vehicle’s traction and manages the operation of different areas of the vehicle, including the transfer case, transmission, electronic differential lock, etc.
- Knowing how to reset the transfer case control module is important to avoid unexpected problems.
- The procedure for resetting the transfer case control module involves turning off the vehicle, turning the key, pressing the reset button, performing the reset, and completing the procedure.
- The transfer case control module is responsible for controlling the transfer case, transmission operation, electronic differential lock, and traction on each of the wheels.
- The TCCM uses a data set that comes from the engine control unit to regulate the best way and time the vehicle shifts gears, improving the accuracy of the vehicle’s gear shifting.
- The TCCM may cause different problems, and it is advisable to verify the operation of this module from time to time.
- The transfer case control module is usually located near the control panel, precisely the steering column panel, from the driver’s position.
- Reprogramming the transfer case control module involves having a scan tool, connecting the tool to the vehicle, obtaining data, and completing the reprogramming.
- Some transfer case control module repair tasks are easy to perform, such as fuse replacement, while others should be performed by expert workmanship to avoid further errors.
- It is not recommended to continue driving a vehicle with transfer case damage as it can aggravate the problem and cause damage to related parts.
Transfer Case Control Module: FAQs
Here are some popular frequently asked questions about the transfer case control module…
Can I Drive With A Bad Transfer Case
Technically, you can, but we do not recommend it. Driving with a faulty transfer case control module can cause a slew of problems. One of the most significant issues is a fluid leak. A seal exists between the transmission and the TCCM which, if damaged, can cause internal or external transmission fluid leaks. If this happens, the transmission fluid may leak out and cause bigger problems to the transmission. A faulty encoder motor is another reason you should never drive a car with a malfunctioning transfer case control module. When it fails, it will register a C0327 error code in the computer, causing the engine to stutter.
How To Reset Transfer Case Control Module
To reset and clear the transfer case control module, pull the five amp TCCM thread bridge at the bottom of the fuse box. Wait for at least 30 minutes and then replace the fuse. Next, turn the electric key and wait for the flashing of the 4×4 light. Turn your engine off after that. You have to repeat these steps five times before restarting your car.
What Happens When A Transfer Case Motor Goes Bad
Your car might permanently be left in a neutral state if the TCCM fails during operation. In addition, if the transfer case control module fails electronically, the usual high-to-low gear can shift from 2WD to 4WD.
What Is a Transfer Case
A transfer case is an essential part of a vehicle, specifically in four-wheel-drive and all-wheel-drive systems. It’s a device that splits power from the engine between the front and rear axles. The transfer case plays a crucial role in allowing vehicles to operate in either two or four-wheel drive, depending on the driver’s needs.
What Does a Transfer Case Do
The primary function of a transfer case is to distribute power from the transmission to the front and rear wheels of the vehicle. It’s responsible for the shift between two-wheel and four-wheel drive. This is especially helpful when driving on different types of terrain or in various weather conditions.
How to Reset Transfer Case Control Module Silverado
Resetting the Transfer Case Control Module on a Silverado involves a few steps. First, turn the ignition key to the ON position without starting the engine. Next, press the gas pedal down to the floor for about 30 seconds. After that, turn the ignition key to the OFF position. Finally, wait for a couple of minutes before restarting the car. This process should reset the module.
Where Is the Transfer Case Located
The transfer case is typically found at the rear of the vehicle. It’s connected to the transmission and both the front and rear driveshafts. If you’re under the car and looking up, it’s generally easy to spot the transfer case as a separate unit between the transmission and the driveshafts.
How Much Is a Transfer Case
The cost of a transfer case can vary significantly depending on your vehicle’s make and model. On average, you might expect to pay between $1,000 and $2,000 for a new transfer case. However, this is a rough estimate, and the actual cost may be higher or lower based on specific factors.
How Does a Transfer Case Work
A transfer case works by taking the power from the transmission and splitting it between the front and rear axles. The driver can select between two-wheel and four-wheel drive depending on the driving conditions. The transfer case uses gears or a chain drive to accomplish this, ensuring the right amount of power goes to each axle.
What Is a Transfer Case on a Truck
A transfer case on a truck serves the same purpose as in any other four-wheel-drive vehicle. It is a device that distributes power from the transmission to both the front and rear axles. It allows the driver to switch between two-wheel drive for regular road use and four-wheel drive for more challenging terrains or conditions.
How Long Can You Drive With a Bad Transfer Case
Driving with a bad transfer case is not recommended. It might cause severe damage to your vehicle if it fails entirely while you’re driving. The distance you can drive with a faulty transfer case is unpredictable. It might fail immediately, or it might last for a while, but it’s always better to address the issue as soon as possible to prevent further damage.
What Happens When a Transfer Case Goes Bad
When a transfer case goes bad, you might experience several symptoms. These include difficulty shifting gears, unusual noises like grinding or clicking when driving, or the car jumping in and out of four-wheel drive. In extreme cases, the vehicle might not move at all. It’s crucial to get the vehicle checked by a professional if you suspect a bad transfer case.
Is the Transfer Case Part of the Transmission
No, the transfer case is not part of the transmission. However, it’s closely connected. The transfer case receives power from the transmission and distributes it to the front and rear axles. It’s an independent component but crucial for vehicles with four-wheel or all-wheel drive capabilities.
What Causes a Transmission Control Module to Fail
Transmission Control Module (TCM) failure can be caused by a variety of factors. These include electrical issues, such as wiring problems or shorts, water damage, heat, and vibration, or simply wear and tear over time. It’s important to have the TCM checked if your vehicle exhibits signs of shifting issues or other transmission problems.
How to Test Transfer Case Encoder Motor
Testing a transfer case encoder motor involves using a multimeter to check the resistance of the motor’s circuits. Disconnect the encoder motor from the vehicle, set your multimeter to measure ohms, and then test each circuit by touching the multimeter’s probes to the connector pins. If any readings are out of specification, the encoder motor likely needs replacement.
How Do I Know If My Transfer Case Control Module Is Bad
There are several signs to look for if you suspect your Transfer Case Control Module (TCCM) is bad. These include problems with shifting gears, the vehicle stuck in a particular drive mode, and error messages or warning lights on your dashboard. A diagnostic scan tool can confirm a TCCM issue.
How to Tell If Transfer Case Is Bad
Signs that your transfer case might be bad include difficulties shifting gears, strange noises like grinding or clicking, and the car unexpectedly shifting into four-wheel drive. If you’re experiencing these symptoms, it’s recommended to have your vehicle inspected by a professional mechanic.
What Happens If Transfer Case Is Low on Fluid
Running a transfer case with low fluid can lead to serious problems. Without enough fluid, the components within the transfer case can overheat and wear out quickly, leading to a costly repair. In extreme cases, the transfer case may fail completely, leaving your vehicle inoperable. Regularly checking and maintaining the correct fluid level is essential.
How to Reset Transfer Case Motor
To reset the transfer case motor, you will typically need to disconnect the battery. Start by turning off the vehicle and disconnecting the negative battery terminal. Leave it disconnected for about 30 minutes. Reconnect the terminal and start the vehicle. This will cause the vehicle’s systems to reset, including the transfer case motor.
How to Bypass Transfer Case Encoder Motor
Bypassing the transfer case encoder motor is not generally recommended. It plays a crucial role in controlling the operation of the transfer case. Bypassing it can lead to significant damage to the vehicle and potentially unsafe driving conditions. If you’re having issues with the encoder motor, it’s best to consult a professional for repair or replacement.
What Transfer Case Do I Have by VIN
The Vehicle Identification Number (VIN) might not directly indicate the type of transfer case your vehicle has. However, you can use the VIN to find out the model and year of your vehicle, which can then help you determine the type of transfer case. This can be done by checking a reputable online VIN decoder or contacting the vehicle’s manufacturer or a dealership.
How Do I Know If My 4×4 Transfer Case Is Bad
Knowing if your 4×4 transfer case is bad involves spotting certain signs. These include unusual noises, such as grinding or clicking when you shift into four-wheel drive, difficulty shifting between two and four-wheel drive, or even your vehicle not moving. If you notice any of these symptoms, it’s best to have your vehicle checked by a mechanic.
How to Test 4×4 Control Module
Testing a 4×4 control module typically requires a specialized diagnostic tool. Connect the tool to your vehicle’s diagnostic port, usually found under the driver’s side dashboard. Once connected, you can scan for any trouble codes. If there are issues with the 4×4 control module, the scan tool should provide you with specific fault codes.
How to Program Transfer Case Control Module
Programming a Transfer Case Control Module (TCCM) typically requires professional-grade diagnostic equipment. It’s a task best performed by a qualified mechanic or a dealership. The process involves connecting the diagnostic tool to the vehicle’s OBD-II port, selecting the correct programming options, and following the prompts provided by the software.
Can You Drive in 2WD With a Bad Transfer Case
Yes, you can technically drive in 2WD with a bad transfer case. However, it’s not advisable. Driving with a faulty transfer case could lead to further damage and potential safety risks. If you suspect a problem with your transfer case, it’s best to have it inspected and repaired as soon as possible.
Does a Transfer Case Control Module Need to Be Programmed
Yes, a Transfer Case Control Module (TCCM) usually needs to be programmed. This involves installing the correct software for the vehicle’s make, model, and specifications. This is generally done with specialized diagnostic tools and should be carried out by a professional mechanic or dealership to ensure proper functionality.
Can a Bad Transfer Case Cause Transmission Problems
Yes, a bad transfer case can cause transmission problems. These might include difficulty shifting gears, unusual noises during gear shifts, or even transmission failure in extreme cases. The transfer case and transmission are closely linked, so a problem with one can affect the other.
