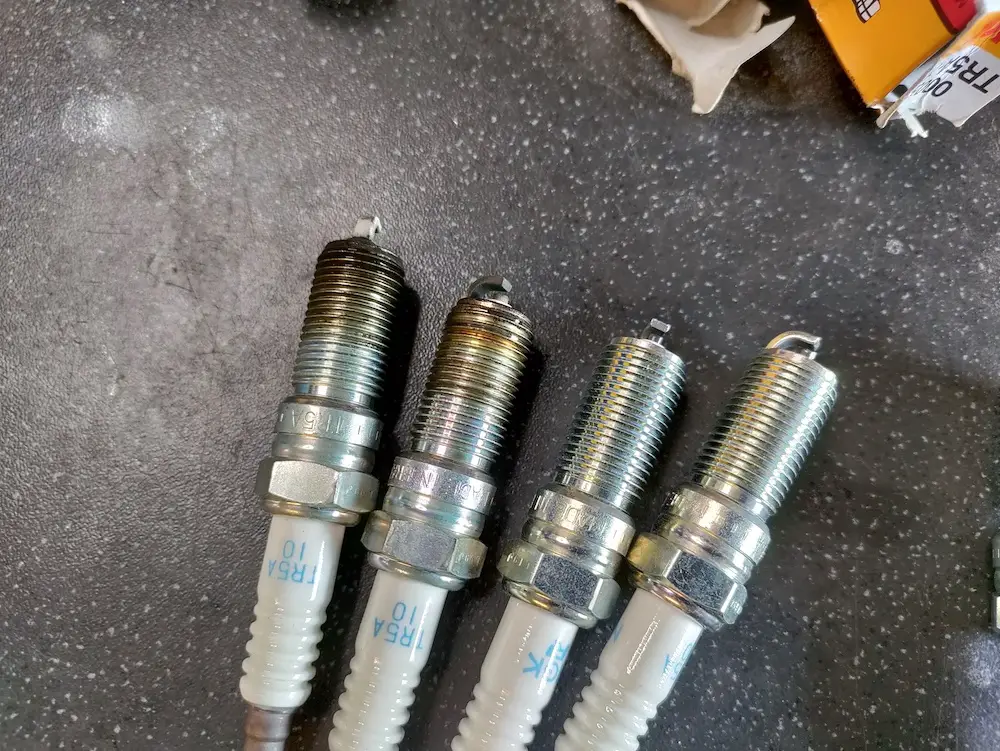

How to Test a Spark Plug: A Step-by-Step Guide
Learning how to test a spark plug is an important part of regular vehicle maintenance. A faulty spark plug can cause a variety of issues, including poor fuel economy, engine misfires, and difficulty starting the engine.
Fortunately, testing a spark plug is relatively simple and can be done with basic tools (for more insight, you can check out our guide on how to check spark plugs). This step-by-step guide will help you test your spark plugs to ensure they are functioning properly.
Step 1: Gather Your Tools
Before you begin testing your spark plugs, make sure you have all the necessary tools on hand. You will need a socket wrench set with the correct size socket for your vehicle’s spark plugs; rubber gloves; safety glasses; and an ohmmeter or multimeter to measure resistance in the circuit.
Step 2: Remove the Spark Plug
Once you have gathered all of your tools, locate the spark plug that needs to be tested and remove it from its housing using your socket wrench set. Make sure to wear rubber gloves while handling any electrical components as they may still be hot from use in the engine block. Once removed, inspect it for any signs of damage such as cracks or corrosion on its surface before proceeding with testing it further.
Step 3: Test Resistance in Circuit
Using an ohmmeter or multimeter set to measure resistance in circuits, connect one lead of the meter to each terminal on either side of the spark plug’s ceramic insulator body (the white part). The reading should fall within manufacturer specifications for that particular model number – usually between 5kΩ and 15kΩ – if not then replace it immediately as this indicates there is something wrong with either its internal wiring or insulation material inside which could cause problems when running at higher temperatures later down line.
Step 4: Check Spark Plug Gap
The gap between electrodes should also be checked using feeler gauges (a tool used for measuring small distances). The gap should match manufacturer specifications which can usually be found printed on top of each individual box containing new replacement parts – typically ranging from 0.6mm – 1mm depending on make/model/year etc. If not then adjust accordingly by gently bending one electrode until the desired gap (make sure you know how to gap spark plugs) is achieved before reinserting it into the engine block.
Step 5: Reinstall Spark Plug
Once all tests have been completed successfully reinstall back into its housing using the same socket wrench set used earlier making sure not to over-tighten as this could damage threads inside the cylinder head causing further issues down line. Finally, start up the engine again ensuring everything runs smoothly without any misfires, etc. indicating successful installation.
By following these steps carefully you can easily test your own vehicle’s spark plugs at home without having to take it to a mechanic shop saving both time & money.
What You Need to Know Before Testing a Spark Plug
Testing a spark plug is an important part of maintaining the health of your vehicle. Before testing a spark plug, it is important to understand the basics of how it works and what to look for when testing.
- First, you should know that a spark plug is an electrical device that ignites the air-fuel mixture in an internal combustion engine. It consists of two electrodes separated by a ceramic insulator and connected to a metal shell. The electrodes are connected to the ignition system, which provides electricity to create sparks that ignite the fuel mixture in each cylinder.
- When testing a spark plug, you should check for signs of wear or damage (not to mention, the symptoms of a bad spark plug and learn what does a bad spark plug look like) such as cracks in the ceramic insulator or corrosion on the metal shell. You should also check for any deposits on the electrodes which can indicate improper burning or fouling from oil or fuel contamination. Additionally, you should inspect for any loose connections between wires and terminals as well as any signs of arcing between them which could indicate faulty wiring or insulation problems.
- Finally, you should use an ohmmeter to measure the resistance across each electrode and compare it with manufacturer specifications before installing new plugs into your engine. This will help ensure the proper operation and performance of your vehicle’s ignition system.
By understanding these basics before testing a spark plug, you can ensure that your vehicle runs smoothly and efficiently while avoiding costly repairs (on top of that, the spark plug replacement cost, in addition to how to replace the spark plugs) down the road due to faulty components or improper maintenance procedures.
The Benefits of Regularly Testing Your Spark Plugs
Regularly testing your spark plugs is an important part of maintaining the health and performance of your vehicle. Spark plugs are essential components in the ignition system, responsible for igniting the air-fuel mixture in the combustion chamber. Without properly functioning spark plugs, your engine will not run efficiently or reliably.
Here are some of the benefits of regularly testing your spark plugs:
1. Improved Fuel Economy: When spark plugs become worn or fouled, they can cause misfires that waste fuel and reduce engine efficiency. Regularly testing and replacing worn or fouled spark plugs can help improve fuel economy by ensuring that all cylinders are firing correctly and efficiently.
2. Reduced Emissions: Worn or fouled spark plugs can also cause increased emissions due to incomplete combustion in the cylinders. By regularly testing and replacing worn or fouled spark plugs, you can help reduce emissions from your vehicle by ensuring complete combustion in all cylinders.
3. Increased Performance: Properly functioning spark plugs ensure that each cylinder is firing at its optimal level, which helps to maximize power output from your engine and improve overall performance levels.
4. Longer Engine Life: Regularly testing and replacing worn or fouled spark plugs helps to ensure that all cylinders are firing correctly, which reduces stress on other components such as pistons, valves, bearings, etc., helping to extend engine life overall.
Common Problems That Can Be Detected Through Spark Plug Testing
Spark plug testing is an important part of regular vehicle maintenance. It can help detect a variety of common problems that can affect the performance and efficiency of a vehicle. Some of these issues include:
1. Fouled spark plugs: Spark plugs can become fouled due to oil, fuel, or carbon deposits that build up on them over time. This can cause misfires and poor engine performance.
2. Worn spark plugs: Over time, spark plugs will wear out and need to be replaced to maintain optimal engine performance. Worn spark plugs can cause misfires, rough idling, and poor fuel economy.
3. Incorrect gap setting: The gap between the electrodes on the spark plug needs to be set correctly for it to work properly. If it is not set correctly, it could lead to misfires or other issues with engine performance and efficiency.
4. Damaged insulation boots: The insulation boots on the end of each spark plug are designed to protect against electrical shorts caused by moisture or debris getting into the cylinder head area around the plug itself. If these are damaged or worn out they may need replacing for proper operation of the engine system as a whole.
How to Read the Results of a Spark Plug Test
Reading the results of a spark plug test can provide valuable insight into the performance of an engine. Spark plugs are essential components in any combustion engine, and their condition can have a significant impact on how well the engine runs.
By performing a spark plug test, you can determine whether or not your spark plugs are functioning properly and identify any potential issues that may be causing problems with your engine’s performance. If you need to learn more, you can learn more in our write-up on how to read spark plugs, as well as how to tell if your spark plug is bad.
To read the results of a spark plug test, begin by examining the color of each spark plug’s ceramic insulator tip. The color should be light tan to grayish white; if it is black or sooty, this indicates that there is too much fuel being burned in the cylinder and could indicate an issue with either fuel delivery or ignition timing. If there is oil present on any of the plugs, this could indicate worn piston rings or valve seals which would require further investigation.
Next, check for signs of wear on each electrode tip; if they appear to be eroded or rounded off then they may need to be replaced as soon as possible. Finally, inspect each electrode gap using a feeler gauge; if it is too wide then it will need to be adjusted accordingly to ensure the proper operation of your engine’s ignition system.
By following these steps you should have all the information necessary to interpret your spark plug test results and take appropriate action if necessary. Remember that regular maintenance and inspection are key when it comes to keeping your vehicle running smoothly for years to come.
Troubleshooting Tips for When Your Spark Plugs Fail the Test
If your spark plugs fail the test, it can be a frustrating experience. Fortunately, there are some troubleshooting tips that can help you identify and resolve the issue.
- First, check to make sure that all of the spark plug wires are connected properly. If any of them are loose or disconnected, they will need to be reconnected before continuing with any other troubleshooting steps.
- Next, inspect the spark plugs for signs of wear or damage. If they appear worn or damaged in any way, they should be replaced immediately as this could be causing the failure.
- If neither of these issues is present, then it may be necessary to clean and adjust the gap on each spark plug using a feeler gauge. This will ensure that each plug is firing correctly and at its optimal performance level.
- Finally, if all else fails it may be necessary to replace all of the spark plugs with new ones as this could solve the problem entirely. It is important to use high-quality replacement parts when doing so to ensure optimal performance from your vehicle’s engine system going forward.
By following these troubleshooting tips you should have no trouble identifying and resolving any issues related to your failed spark plug test quickly and easily.
The Different Types of Tests Used for Evaluating the Condition of a Spark Plug
Spark plugs are essential components of an internal combustion engine, as they provide the spark that ignites the fuel-air mixture in the cylinders. As such, it is important to regularly evaluate their condition to ensure optimal performance.
There are several tests that can be used to assess a spark plug’s condition, including visual inspection, compression testing, and resistance testing.
- Visual inspection is a simple yet effective way of evaluating a spark plug’s condition. This involves examining the physical appearance of the plug for signs of wear or damage such as cracks or corrosion on its surface. It can also reveal any deposits that may have built up on its electrodes due to improper burning of fuel or oil leakage from other parts of the engine.
- Compression testing is another method used for assessing spark plugs. This involves measuring the amount of pressure generated by each cylinder when it compresses air and fuel during combustion. If there is an imbalance between cylinders, this could indicate a problem with one or more spark plugs which should be replaced if necessary.
- Resistance testing measures how much electrical resistance there is between two points on a spark plug’s electrodes when current passes through them. If this value exceeds certain limits then it could indicate that either one or both electrodes have become worn out and need replacing to maintain optimal performance levels from your engine.
By performing these tests regularly you can ensure your vehicle runs at peak efficiency and avoid costly repairs down the line due to faulty spark plugs.
How to Choose the Right Type of Spark Plug for Your Vehicle
When it comes to maintaining your vehicle, one of the most important components is the spark plug. Spark plugs are responsible for igniting the air-fuel mixture in your engine’s cylinders, and if they are not functioning properly, your vehicle will not run efficiently. Therefore, it is essential to choose the right type of spark plug for your vehicle.
- The first step in selecting a spark plug is determining what type of engine you have. Spark plugs come in two main varieties: conventional and iridium-tipped. Conventional spark plugs are designed for older engines with lower compression ratios and require more frequent replacement than iridium-tipped ones (for more insight, check out our explainer on platinum vs iridium spark plugs). Iridium-tipped spark plugs are designed for newer engines with higher compression ratios and can last up to four times longer than conventional ones (you can learn more in our guide on how long do spark plugs last).
- Once you have determined which type of engine you have, you need to consider other factors such as heat range and gap size when selecting a spark plug. Heat range refers to how hot or cold a spark plug runs; too hot or too cold can cause pre-ignition or misfiring issues respectively. Gap size refers to how far apart the electrodes on the end of the spark plug should be; this should be set according to manufacturer specifications as incorrect gap size can lead to poor performance or even damage your engine over time.
- Finally, make sure that you select a quality brand when purchasing new spark plugs; some brands may offer cheaper prices but may not provide reliable performance over time due to inferior materials used in their construction process.
By taking into account all these factors when choosing a new set of spark plugs for your vehicle, you can ensure that they will perform optimally and help keep your car running smoothly for years to come.
1. What tools do I need to test a spark plug?
A: You will need a spark plug tester, which is available at most auto parts stores. You may also need an adjustable wrench and a pair of pliers.
2. How do I prepare the spark plug for testing?
A: Before testing the spark plug, make sure it is clean and free of any debris or dirt that could interfere with the test results. Use compressed air to blow out any dirt or debris from the electrode gap and threads of the spark plug before testing it.
3. How do I connect my spark plug tester?
A: Connect one end of your tester to your vehicle’s battery terminal and then attach the other end to your spark plug wire or coil wire depending on what type of ignition system you have in your vehicle. Make sure all connections are secure before proceeding with the test.
4. What should I look for when testing my spark plugs?
A: When testing your spark plugs, you should look for signs that they are functioning properly such as a strong blue-white arc between electrodes when cranking over the engine, consistent firing rate when cranking over the engine, and no visible signs of damage or wear on electrodes or insulator tip after inspection with magnifying glass/microscope if necessary. If any issues are found during this process then replace them immediately as they can cause serious damage to other components in your engine if left unchecked.
5. How often should I test my spark plugs?
A: It is recommended that you check your spark plugs every 6 months or 10,000 miles (whichever comes first). This will help ensure that they are functioning properly so that you can get optimal performance from your vehicle’s engine.
6. What happens if my sparks plugs fail the test?
A: If one or more of your sparks plugs fail their tests then it is likely time for them to be replaced as they may be worn out due to age/mileage/heat exposure etc… Replacing them will help ensure optimal performance from your vehicle’s engine.
7. Are there any safety precautions I should take while testing my spark plugs?
A: Yes. Always make sure all connections are secure before starting up an engine while performing tests on its components such as its spark plugs – this will help prevent potential accidents due to loose wires etc… Additionally always wear protective gear such as gloves & goggles when working around engines & their components.
8. Is there anything else I should know about how to test a Spark Plug?
A: Yes. Make sure not only to check each individual Spark Plug but also to check each cylinder’s compression ratio, which can give an indication of how well each cylinder is running. This information can be used in conjunction with Spark Plug readings, allowing you to diagnose problems more accurately.
