Torque Converter Clutch Solenoid: Gone Bad, And How To Fix It?

A torque converter clutch solenoid controls the flow of fluid to the torque converter. It is located near the transmission and the engine’s rear.

An electromagnetic coil controls the solenoid. It moves a plunger inside the solenoid shaft when it is activated. This in turn moves the control valve to either open or close. When closed, it prevents any fluid from passing through to the torque converter.

What Is A Torque Converter Clutch Solenoid?

The TCC solenoid controls the behavior of the engine during different driving scenarios. Specifically, you can find it fitted within automatic transmissions. The clutch engagement is optimized for automatic shifting of gears. Problems with transmissions were reduced with the introduction of the solenoid.

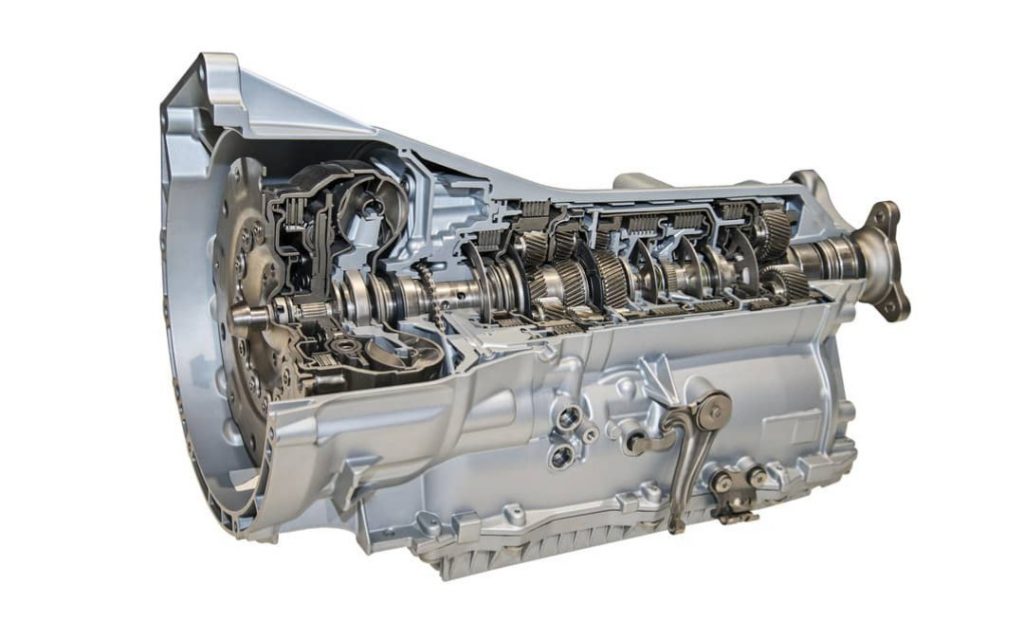

Torque Converter Clutch Solenoid

What Does A Torque Converter Clutch Solenoid Do?

The torque converter solenoid is a part of a car’s transmission. The device is responsible for regulating the engine’s torque. It provides the car with the appropriate speed and power from the engine.

The solenoid controls an electromagnetic device in a hydraulic system, which in turn helps activate a hydraulic plunger in a pump. When activated, this plunger pumps fluid to produce an increase in pressure. The pressure builds up on the torque converter clutch pack to produce a locking effect on its discs.

Clutch Solenoid Maintains Engine Speed

A car’s torque converter solenoid is a hydraulic coupling between the engine and transmission. It turns on when a vehicle moves forward from a complete stop. This movement puts more pressure on the fluid than at idle or low speeds. The solenoid regulates this pressure to maintain a constant engine speed.

The solenoid closes the connection to the engine and engages or disengages the transmission clutch. A signal from the engine control module controls the solenoid. When commanded to engage, it sends out an electric current.

The current actuates two magnetic coils that are located inside the solenoid switch. The magnetic field created by these coils pulls on ferrite cores, which pushes on a grounded plunger that opens the contacts in the switch.

Advantages Of A Torque Converter Clutch Solenoid

The major advantage of the torque converter clutch solenoid is that it allows for a smoother acceleration and deceleration process. The primary function of the TCC Solenoid is to lock up the torque converter when an engine’s RPMs exceed a certain level.

This method stops the transmission from over-revving. Moreover, it improves fuel efficiency by cutting down on power lost when the transmission spins up and down.

1. Fuel Efficiency

The torque converter clutch solenoid increases fuel efficiency. You can decrease fuel consumption by engaging the torque converter when the engine is running. It increases fuel efficiency by making it possible to slip the clutch with less effort.

Engage the clutch only when needed, as it reduces wear and tear on the engine. A slipping clutch makes the engine idle at the same time as it is turning, which saves fuel by reducing friction.

The solenoid mechanism reduces the amount of energy needed to start, stop, and coast. This leads to shorter periods of time where the engine needs to run at high speeds, which saves gas by decreasing the frequency of opening and closing valves.

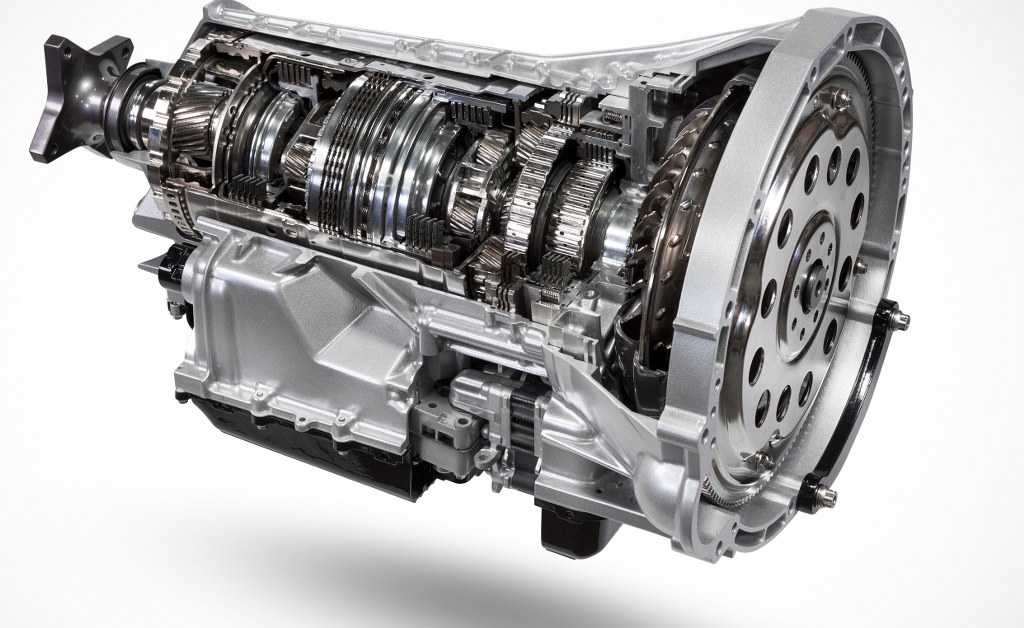

Torque Converter Clutch Solenoid

2. Reduces Clutch And Transmission Wear and Tear

A car’s TCC solenoid is like a small switch that automatically turns the clutch on and off. The solenoid does this by sending an electric current to the clutch, which controls engagement. When there is no power, the clutch will disengage. When the solenoid gets power, the clutch will engage and stay in place as long as the solenoid has power.

The TCC solenoid works in conjunction with the transmission. It engages a rubber diaphragm when the solenoid is activated. This cuts off the flow of fluid to the clutch so that there is no slippage. Hence, it reduces the wear and tear on the clutch and transmission. When no gears are slipping, no parts are moving with extra force.

3. Saving On Repair Costs

You tend to save on repair costs because the solenoid is a component that prevents engine slippage. Slippage occurs when the gears inside the transmission slip and grind against each other. This produces a lot of noise and wear.

The TCC solenoid constantly lubricates the gears inside the transmission to keep them from grinding against one another. This significantly reduces repair costs for your vehicle.

The engine’s torque is limited while in use, thus preventing it from spinning and wearing out. It optimally controls the shifts in your vehicle. There is hardly any slippage when the TCC is locked. The parts inside the transmission have reduced friction, meaning less wear and tear.

4. Improved Performance With Clutch Solenoid

The solenoid improves performance by disengaging the clutch for a certain period of time. Thus, fuel economy and performance increase. It engages the clutch quickly to allow you to switch gears without having to slow down. You don’t have to use any force that would damage the transmission.

The solenoid controls the transmission of power from the engine to the gearbox. By controlling the pressure of the fluid used to shift gears, it improves performance when dealing with high-torque situations.

5. Allows For Smoother Shifts

A car’s torque converter clutch solenoid allows for smoother shifts by electronically controlling the clutches. The control allows it to match the engine and transmission speeds. This makes it easier to go from one gear to another because it lessens the jarring feeling that can happen when you shift gears manually.

It enables smoother shifts by sensing when the engine speed is too high. Then it disengages the clutch from the flywheel. This not only prevents further damage to the transmission but also reduces the strain on the engine. The solenoid reengages the clutch when the engine speed decreases.

6. Prevents Stalling In Heavy Traffic

A car’s torque converter solenoid helps prevent stalling in heavy traffic by controlling the fluid in the transmission. The placement of the solenoid is in a position that can regulate pressure when it is in operation. So, in stop-and-go traffic, it will close to keep the car from stalling out.

The torque converter solenoid responds to the vehicle’s speed and throttle position. It prevents the vehicle from stalling when idle if the accelerator is engaged. The solenoid starts by eliminating low-speed creep so that the vehicle will not stall while idling. It also calibrates the idle speed of the engine to allow for smooth acceleration under heavier loads.

Disadvantages Of A Torque Converter Clutch Solenoid

There are a few disadvantages too:

  • A torque converter clutch solenoid has the potential to fail sometimes. This not only affects the car’s functionality but also raises the likelihood of accidents.
  • Installing and maintaining it may be expensive in some premium cars.
  • It is a part that needs skill and experience for servicing and troubleshooting.
  • Being computerized, it’s not perfect as it can give errors.
  • The solenoid relies on electrical energy to engage and disengage, so a dead battery means that you will not be able to drive your car.

Symptoms Of A Bad Torque Converter Clutch Solenoid

The TCC Solenoid is very important for your car’s internal combustion engine and transmission. It also maintains the proper power ratio between the two.

A transmission solenoid might fail for a variety of reasons. Given below are some of the most common signs that you should look out for:

1. Increase In Fuel Consumption

Due to the malfunctioning solenoid, the engine and transmission do not lock up at highway speeds. In this case, you will notice an increase in fuel consumption. The faulty solenoid prevents the engine and transmission from locking up at highway speeds.

As a result, you have gear slipping. This makes the engine work harder. The more fuel the engine consumes, the harder it works. Slipping generates heat as well, causing internal damage.

2. Transmission Does Not Downshift

The transmission may be jammed due to a malfunctioning solenoid if it does not downshift. One of the shift solenoids may have been jammed open or closed in this situation. There will be an issue if the fluid cannot enter the transmission valve body. This is because it has to move freely to choose the correct gear with the pressure and liquid.

3. Erratic Shifting With The Torque Converter Clutch Solenoid

One of the most common symptoms of a car’s torque converter clutch solenoid not working is erratic shifting.

Since transmission controls are electronic, many people overlook the TCC Solenoid. They rule it out as a possible cause of the issues with shifting. A sign that the solenoid is going bad is when shifting gears does not change the speed of the car.

This can lead to excessive wear on the transmission because it’s not changing gears correctly.

A faulty solenoid will cause the car to jerk from 1st to 2nd gear and back at random, as well as other times when it may not upshift or downshift.

4. Stuck In Neutral Or Delay In Shifting

The car chooses the right engine gear in an automatic car. It also puts the transmission into neutral without you needing to do anything. This is what makes automatic cars so convenient.

But sometimes, the solenoid malfunctions and the automatic shifting does not happen.

The TCC solenoid manages the fluid pressure to control the appropriate piece of equipment at the right time. If the shift solenoid has received too much or too little current, the TCC solenoid will become stuck. This also happens when there is thick and dirty hydraulic fluid present inside.

The electronic control unit in your car will show an error code if it’s malfunctioning and turn on the check engine light if the solenoids are not functioning. In this case, the transmission will be put into limp mode, so it will not go into higher gears after alternating between second and third.

5. Fail-Safe Or Limp Mode

A defective solenoid may force the transmission to go into fail-safe or limp mode to protect the transmission from internal damage. In fail-safe or limp mode, the transmission will lock in either second or third gear. When the transmission is in fail-safe mode, the maximum speed will not exceed 30 miles per hour. You can only drive home or to the workshop at such a slow speed.

The transmission will overheat if you keep driving in fail-safe mode, or try to go faster than the specified fail-safe speed. Overheating can cause damage to any automatic transmission. Hence, drive slowly and carefully if your car is in fail-safe mode.

6. No Check Engine Light

A professional transmission scan can accurately diagnose a transmission problem when the check engine light is off. This scan can be done in a workshop or at a car dealership. Professional transmission scans range from $60 to $125 depending on the type of car you have.

No Check Engine Light Diagnosis

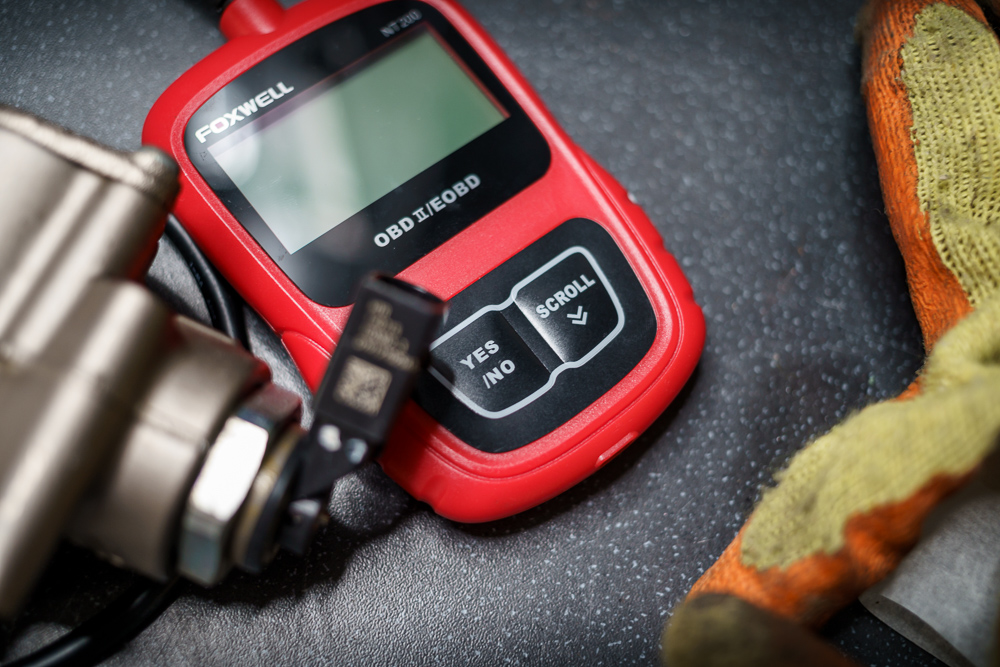

A Diagnostic Trouble Code (DTC) is generated when there is a failed solenoid. When you do an OBD-II scan, it will show a faulty solenoid. Along with a DTC, there will always be an explanation that mentions a transmission electrical system open circuit.

Torque Converter Clutch Solenoid Error Codes

The first thing you should do if there is an issue is to examine the error codes. A diagnostic tool will tell you the details of the problem. A mechanic will use a scan tool to find the origin of the problem.

If it is a very simple issue, it can be resolved quickly. On the other hand, it can be very complex as well. If a solenoid is not working at all, you would need a mechanic to fix it.

TCC solenoid issues have certain codes that are unique to them. One of the most common codes is the one starting with P074_.

P0741 Torque Converter Clutch Solenoid Error Code

The control module may have a P0741 code if it detects TCC slipping. The code may also appear when the TCC is working erratically, or if it is not engaging. The code could have a different definition depending on the vehicle manufacturer.

There could be various reasons for it, as given below:

  • TCC solenoid failure
  • Torque converter malfunction.
  • Valve body deterioration.
  • Failure of internal transmission.
  • Dirty transmission fluid.
  • TCC circuit problem.
  • A faulty sensor hampered TCC lockup.
  • The control module’s software needs to be updated.

If you see other codes also showing on the scanner, there could be other issues as well.

Symptoms Of The P0741 Code:

Here are the symptoms that will result in this code:

Some of the other common TCC Solenoid related OBD-II codes are P2770, P2769, P0743, P0744, and P0742.

torque converter clutch solenoid

How To Fix The P0741 Error

A torque converter clutch system’s diagnosis and testing require advanced tools. These tools are easily available at a local auto parts shop or online.

The P0741 error is a TCC solenoid problem. The TCC solenoid regulates the torque converter clutch. This controls the engagement and disengagement of the engine with the transmission. If this circuit has a problem, it will prevent the vehicle from going into gear.

In order to fix this issue, there are three things that must be done.

  1. First, you need to replace your TCC solenoid.
  2. Second, you have to check for any bad connections on the wiring harness or in the fuse box.
  3. Thirdly, if all else fails, you can try replacing the entire module.

P0741 is a general OBD-II code, meaning it can occur in a car of any year, make, and model. How to fix different codes might depend on what kind of car you have.

What If I Don’t Change The Torque Converter Clutch Solenoid?

If you detect the symptoms of a faulty TCC solenoid, we recommend that you replace it. A defective TCC solenoid prevents your car from downshifting properly. This is certain to cause extensive damage. The valve will not be filled with the correct amount of fluid and power will decrease.

Driving with erratic shifting is also not ideal. You will find your gearbox defective and unfit for use while driving. The car may shift gears up and down at random. Besides, the shifter may get jammed, meaning that you can’t shift gears.

Your car’s performance will be adversely affected. It will no longer be as responsive as before.

Can I Replace The Torque Converter Clutch Solenoid Myself?

You may save money by fixing your car yourself. However, it’s best done by a professional since it could be a bit complicated. You need to be aware of the exact issue and the work involved.

You need to consider many things if you have to replace the solenoid yourself. In the case of a wrong diagnosis, there could be a risk of damage to the car.

  • The first thing to consider when replacing your car’s torque converter clutch solenoid is whether or not you have the skills and knowledge to do it by yourself.
  • You need to be clear about where the solenoids are located in your car. If you know where it is located, you will save time and effort.
  • Next, you need to have all the tools necessary to complete the task without wasting too much time.
  • It will save you money if you purchase these items at once rather than having to buy more later.
  • Finally, you need to know what kind of solenoid you need for your car model.

Cost Of Replacing A Torque Converter Clutch Solenoid

The cost of repairing a clutch solenoid depends on the vehicle’s year, make, and model. The location also affects the cost. You could do it yourself, or get it done by a local mechanic or service center.

If you decide to replace the solenoid yourself, the cost of the solenoid will be included in the total repair.

Including labor costs, Honda cars may have a total cost of $800. Toyota cars may cost a little less. The Camry and Corolla will incur a cost of $700, including labor costs. Other cars may be cheaper at about $500. The labor costs vary, but in all cases, they make up the bulk of the costs. The parts usually comprise about a third of the total cost.

The cheapest individual solenoids typically cost about $50. It really depends on how many solenoids you are replacing and how much time it takes to do it.

What Happens During A Torque Converter Clutch Solenoid Replacement?

The solenoid can only be accessed by dismantling other components first. After removing the transmission, the torque converter has to be removed as well. How much you have to remove depends on the brand and model of your vehicle.

It is faster and easier in some cars than in others. Remove the transmission fluid thoroughly. One by one, the solenoids will have to be replaced.

Solenoids can fail one at a time or in groups. All of them should be replaced at the same time. This causes a delay and can also increase the cost.

The mechanic will put everything back together after installing the solenoid. To make sure there are no more errors, he runs the program one more time to make sure it is clean. The final step is to perform a test drive to ensure that everything is functioning as it should.

How a Torque Converter Clutch Works – From The Expert

The torque converter clutch is a critical component of automatic transmissions. It enables the engine to transmit power to the transmission and, ultimately, to the wheels. Without a properly functioning torque converter clutch, a vehicle’s acceleration, fuel efficiency, and overall performance can suffer.

A torque converter clutch is essentially a type of lock-up clutch that connects the engine to the transmission. When the clutch is engaged, the torque converter is bypassed, allowing the engine’s power to be transmitted directly to the transmission. This not only reduces the amount of slippage and heat generated in the torque converter, but it also improves the transmission’s efficiency and performance.

The torque converter clutch is typically activated by a solenoid, which is an electrical device that controls the flow of transmission fluid. When the solenoid receives a signal from the transmission control module (TCM), it opens or closes a valve that allows fluid to flow to the torque converter clutch. This, in turn, engages or disengages the clutch.

One important feature of the torque converter clutch is that it is designed to slip slightly when it engages. This helps to reduce the shock and strain on the transmission and drivetrain, and also allows for smooth shifts between gears. However, too much slippage can cause the clutch to wear out prematurely and can reduce its effectiveness.

To prevent this, many modern torque converter clutches are designed with a lock-up feature that eliminates slippage altogether. When the lock-up feature is engaged, the clutch is fully engaged and the engine is directly connected to the transmission. This improves fuel efficiency and reduces wear and tear on the transmission and other components.

Overall, the torque converter clutch is a vital component of automatic transmissions. Understanding how it works can help drivers to maintain their vehicles properly and ensure that they are operating at their best.

Conclusion On Torque Converter Clutch Solenoid

One of the most common causes of transmission malfunction is a torque converter clutch solenoid issue. Look for signs such as stalling and shifting issues, among other symptoms mentioned above. Look for deeper issues if these symptoms don’t go away even after the car has been serviced.

Check for any transmission error codes using an OB-II scanner. You may get an error code such as P0741, or similar ones starting with P074_. A professional scan at a workshop will reveal all the error codes and issues.

If you notice your car exhibiting the signs discussed above, you may need a TCC Solenoid replacement. The process itself is relatively simple but takes time due to the shifting of components. It is best done by a professional to minimize the chance of any risk or damage.
