Check Charging System Toyota Camry – Causes And Meaning

It is well-known that Toyota vehicles are among the most reliable on the road. However, even the best cars could face some issues. A check charging system warning on a Toyota Camry is one frequent problem faced by owners. Here, we’ll look at some typical causes, symptoms, and diagnostics of charging system issues in a Toyota Camry.

A wide range of issues, including loss of power and dead car batteries, could result from this. The most frequent causes of a charging system issue in a Toyota are a faulty battery, a malfunctioning alternator, a damaged or loose drive belt, a sensor or ECU issue, and wiring problems. We will go through each of these problems in detail.

Check Charging System Toyota Camry

Toyota Camry

Toyota’s long-running Crown nameplate has evolved into the Camry nameplate. It comes from the Japanese word “kanmuri”, which means “crown.” Camrys have front-wheel drive and transversely mounted four- or six-cylinder engines. Although two-door coupes were available until 2008, the majority are four-door sedans.

The Camry has gone through eight separate substantial redesigns during its four decades of production. Many older Camrys frequently have much more life left in them even after having more than 200,000 miles on them. This is a monument to Toyota’s exceptional build quality and the cause of its well-deserved reputation for reliability.

Just to prove how reliable they are, do check out our detailed write-up on the Toyota Camry model years to avoid. For tips and tricks on getting a Camry, our look into the Toyota Camry XSE with the red interior might be helpful. Moreover, we also have a somewhat related guide on diagnosing why your Toyota Camry cranks but won’t start.

Toyota Camry Check Charging System

In order to improve the efficiency of their vehicles, the Toyota corporation has created a variety of novel technologies. The Toyota charging system is one of those systems. Many Toyota automobiles now come equipped with the Toyota charging system.

This system interacts directly with the alternator, voltage regulators, and other internal electrical components of the car. As it is directly connected to the engine battery, it is a crucial component of a Toyota car.

Therefore, it is advised to heed the warning and take the vehicle to the Toyota service center as soon as possible when the check charging system Toyota Camry light illuminates.

But what precisely is a charging system fault? It is a notification that informs the driver of any charging system problems (just as bad as the problems with 2009 Toyota Camry). There are some primary causes resulting in the charging system malfunction light suddenly illuminating.

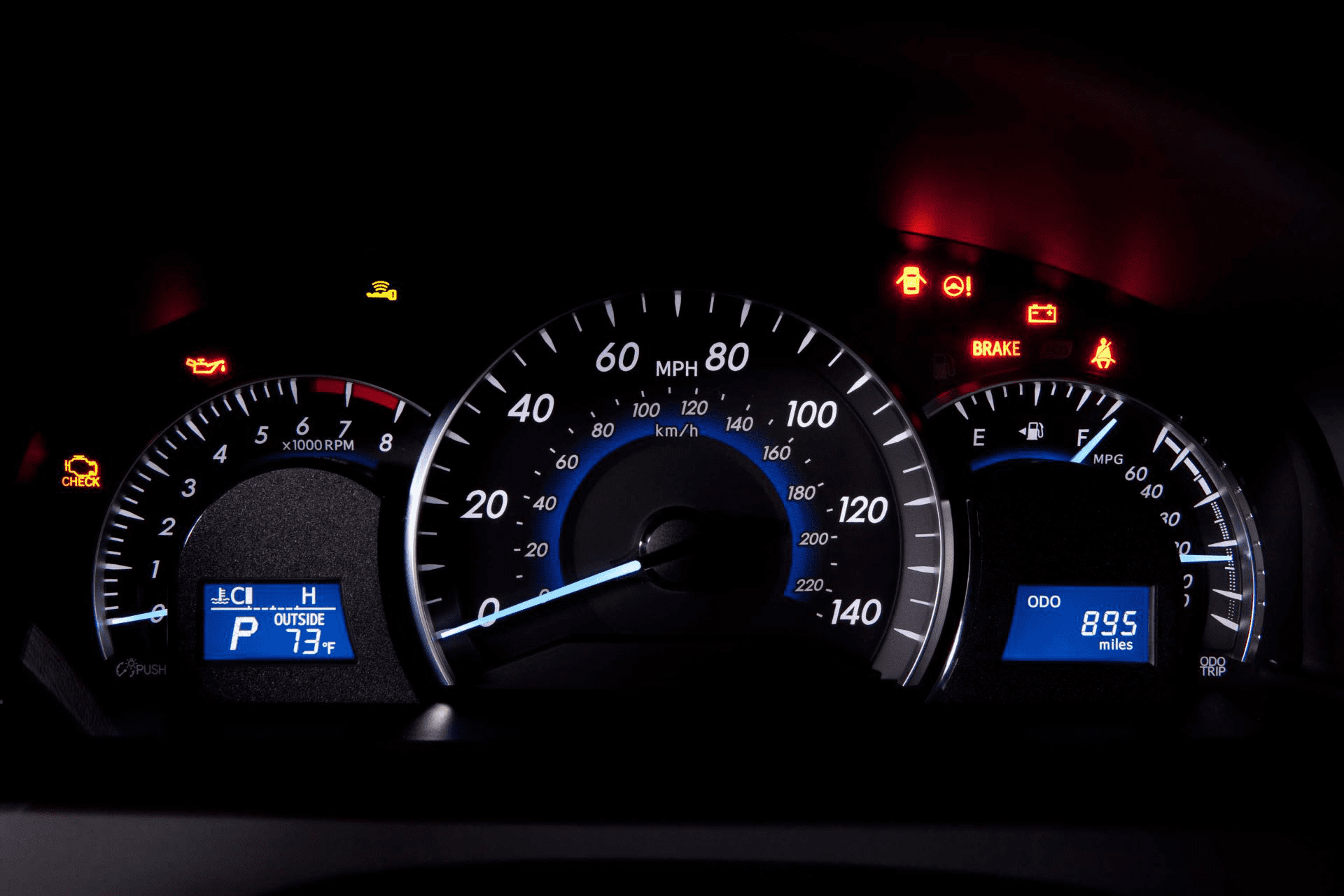

Battery Light On In Car

To get the most out of your car, battery care is just as crucial as regular tune-ups (for more insight, check out our explainer on what is a tune-up on a car). It’s important to keep in mind that your battery does have a limited lifespan. This is regardless of whether it’s a tablet, smartphone, MP3 player, or GPS receiver that draws power from your car’s battery.

Check Charging System Toyota Camry

It could even be a human error, where you may have made the simple mistake of leaving your headlights on after turning off the car or even forgetting to close a door or trunk lid. Even constantly charging your smartphone from your car battery can reduce its lifespan, especially if your car battery is older.

A battery’s ideal lifespan is around six years, whether it is for a truck, car, or SUV. Expect three to four solid years from your factory or aftermarket battery. But keep in mind that battery life can be negatively impacted by severe temperatures, humidity, heavy accessory loads, and other reasons.

Your battery light being on, often known as the dashboard battery indicator, is intended to alert you to any problems with the battery or charging system in your car. It can mean that your battery is worn out or damaged, or that the charging system isn’t working properly.

These problems are frequently accompanied by other bad battery symptoms in your car. The car may not start, or the ignition may stutter. The engine might also make a clicking noise when you try to start it. A radio that won’t switch on and slowly opening power windows are other potential issues.

Battery Charging System

Many once mechanically driven parts are now powered or controlled by electricity. The battery charging mechanism has grown increasingly crucial to a vehicle’s functioning as a result of its advancement.

In a nutshell, it is the system that produces, stores, and distributes the electrical energy needed by the numerous parts of the car, and it has three primary parts. The charging system fuels the starter motor as well as other electrical features including the air conditioner, music system, lighting, and window defrosters.

The alternator, battery, and voltage regulator will be on the list of its fundamental parts. These three main components are crucial for the system as well as the functionality of the car. So, if any of them degrades, your car might start reluctantly or not at all.

Check Charging System Toyota Camry

Alternator And Drive Belt

The battery stores the electricity that the alternator produces and that is constantly consumed. The serpentine belt sometimes referred to as the fan belt, circles a number of pulleys on one end of the motor and supplies power to the alternator.

The crank pulley, which is mounted on the crankshaft is rotated as a result of the engine’s internal combustion which in turn turns this belt. As a result, the alternator pulley rotates, converting mechanical energy into electrical energy.

The alternator’s output must be managed to prevent overcharging the battery because it is directly fixed to the engine RPM at a certain speed. If you want to learn more about the alternator, check out our guides on where is an alternator located, the best brand of alternator, as well as whether can you jumpstart a car with a bad alternator.


This is accomplished by the regulator, which modulates the magnetic field generated by the alternator’s rotor, the rotating center.

In essence, it alters the alternator’s efficiency, going from high efficiency at low rpm (engine revolutions) to poor efficiency at high revs while maintaining a reasonably consistent output power between 13 volts and 14.5 volts.

This power is chemically stored in the battery, which is a plastic cast container. They are rated according to how much power they can produce in the form of amperage or current. For example, diesel motors often require a larger battery than gasoline motors of the same capacity to start because they require more current.

Service Battery Charging System

The service battery charging system warning or alternator warning light indicates that the ECU has detected that the alternator is not charging the battery. This leaves the car functioning solely on its battery and gradually exhausting it.

The battery light comes on and off naturally with the functioning of the car. It turns on when the ignition system is turned on to demonstrate that it is functioning. But it must automatically be turned off once the car is running and the alternator is charging.

Inspection will be required if it continues so that the fault’s root cause can be identified. Check the wiring on the alternator before spending a tonne of money on changing parts since if it’s loose, the car ECU may receive a misleading reading.


Charging System Failure

When the charging system light on your car comes on, it implies the charging system has failed. The alternator and voltage regulator (be wary of the symptoms of a bad voltage regulator) are no longer supplying the battery with new electricity.

While a charging system warning light’s general meaning denotes a low charge or absence of it, the specific cause of the light’s initial turn-on could be because of a number of things.

Check Charging System Toyota Camry – Causes Of Failure #1: Dead Battery

A car battery’s principal purpose is to store the energy needed to start the engine. This implies that if the battery is dead, your car won’t start even if the alternator is working properly. A malfunctioning alternator, undercharging, or overcharging the battery are all potential causes of dead batteries.

Clean, loose, or any battery terminal corrosion that results in a poor connection can also be a cause of a dead battery. If you need more details, our guides on why your car won’t start with a new battery, as well as why your car won’t start but the battery is good might be handy.

Check Charging System Toyota Camry – Causes Of Failure #2: Faulty Alternator

The crankshaft’s energy is converted by the alternator into electricity, which is subsequently stored in your battery. Alternator problems can develop gradually over time or suddenly. But once they do, they may lead to a number of problems with your car’s electrical systems.

The voltage regulator, which restricts energy output to 14.5 volts, may possibly be the cause of the issue if it isn’t doing its job. Watch out for dimming headlights, which are frequently an early indicator of a failing alternator. Thus, you have to be careful when diagnosing whether it’s a bad alternator vs a bad battery (and understanding how to know if your alternator is bad).

When an alternator fails to provide adequate electrical power, it is regarded being faulty. Typically, a healthy alternator produces between 13 and 14.5 volts. The alternator is designed to carry the electrical load during typical vehicle operation because the battery has a limited capacity for energy storage.

Check Charging System Toyota Camry – Causes Of Failure #3: Broken Serpentine Belt

The alternator is driven by a serpentine belt, and if the belt breaks or wears out and becomes damaged, the alternator will no longer function. This may also occur if the serpentine belt is not properly tightened. The automatic tensioners used in most cars can malfunction, therefore it is best to check again.

If your vehicle has a manual tensioner, you might need to tighten the serpentine belt. Also, the serpentine belt replacement cost and pulleys are simple and inexpensive.

Check Charging System Toyota Camry – Causes Of Failure #4: Corroded Battery Terminals

The battery terminals are made to be excellent electrical conductors. But they can corrode and wear out with time, just like any other electrical component. The terminals develop a white, green, or blue material due to corrosion and are made worse by prolonged heat.

Use a harsh brush and a baking soda/water solution to clean the terminals because it is acidic and will eat away at them. Wear the proper PPE and exercise caution to prevent skin injury. And when you’re doing that, make sure that you also know how to safely disconnect a car battery.

Check Charging System Toyota Camry – Causes Of Failure #5: Loose Battery Cable

A weak power transfer from the alternator to the battery may result from loose battery cables. You shouldn’t be able to move the cables by hand because they should be tightly wrapped. Try tightening them with a wrench or pair of pliers if you have any doubts about the connection’s tightness.

But be careful not to overtighten as this could strip the bolts.

Check Charging System Toyota Camry – Causes Of Failure #6: Wiring Problems

As the wiring connects the battery to the alternator, damaged wires can result in voltage loss. Weak charging and discharging might also be caused by a poor ground connection. Your battery may quickly lose energy if the wiring is faulty. So, make sure you’re on the lookout for the symptoms of a weak car battery.

Because it won’t be able to maintain a charge. As for the latter, you can refer to our write-up on how long does it take to charge a car battery for more insight. Even well-fitted wiring over time may malfunction or become loose, necessitating a mechanic’s check.

Check Charging System Toyota Camry – Causes Of Failure #7: Problems With The ECU

The ECU controls a vehicle’s electrical system and ensures that it operates within predetermined tolerances and preset values. If your Camry’s ECU is faulty or isn’t functioning properly, it won’t keep these components running properly or at all.

One of these parts that require knowledge of the requirements for electrical supply and demand is the alternator. ECUs are potential reasons for charging system failure. But you should first rule out all other possibilities because fixing an ECU issue might be the most difficult and expensive fix.

These error codes can be read by an OBD II reader, and some of them let you view real-time readings of the alternator charging voltage. This will help you narrow down the symptoms of a bad ECU.

Check Charging System Toyota Camry: Symptoms

Check Charging System Toyota Camry – Symptoms #1: Charging System Warning Light

As we mentioned earlier, the dashboard battery light turning on is the first and most typical sign of a charging system issue. If this indicator illuminates, your Camry’s charging system is malfunctioning, and you should get it fixed as soon as possible.

Few of Toyota’s most recent models come with a charging system light on the dashboard. If this light illuminates while you are moving, there is a problem with the charging system. You ought to bring your car to the closest service center as soon as you can.

Check Charging System Toyota Camry – Symptoms #2: Dead Battery

A dead battery will result from the charging system in your Camry not functioning properly. Your Toyota probably has a charging system issue if you frequently need to jump-start your car or replace your battery more frequently than usual.

Check Charging System Toyota Camry – Symptoms #3: Dim Headlamps

Dimming headlamps are another sign that something is wrong with your Toyota’s charging system. Numerous problems might result in this while there is a considerable chance for a crash too. Therefore it is a good idea to get your charging system inspected if you discover that your headlights are substantially dimmer than usual.

Check Charging System Toyota Camry – Symptoms #4: Slow Cranking And Startup

Your Toyota engine may take longer to start than usual if the charging system is acting up. The starting motor should receive adequate power from a functioning charging system to quickly start the engine. Lack of electricity from the charging system may be the cause of your car’s starter motor having difficulties starting the engine.

Check Charging System Toyota Camry – Symptoms #5: Noises From Under The Hood

Strange noises coming from under your Toyota’s hood may indicate a problem with the charging system. The alternator bearings may be failing if you hear a whining or grinding sound when the engine is running. A mechanic should look into any odd noises emanating from your car’s charging system as soon as feasible.

Check Charging System Toyota Camry: Diagnostics And Repair Cost

The best course of action is to take your Toyota vehicle to a trained mechanic or Toyota dealership to have the charging system malfunction diagnosed and fixed. You could attempt the following repair methods-

1. Recharging/Replacing The Battery

If your Toyota’s charging system malfunctions, you will need to recharge the battery. Connecting the best battery charger to the battery terminals and allowing it to charge for a few hours will do this. Just make sure you’re aware of positive or negative first when connecting a battery. It may be necessary to replace the battery if it is fully dead.

If the issue is with the charging system rather than the battery, recharging it won’t provide a lasting solution. According to RepairPal, a battery replacement typically costs between $844 and $851, depending on the quality, size, and power. We’ve previously looked into how much is a car battery at AutoZone if you’re keen on the pricing.

Appointments are frequently unnecessary. You may check the price of a battery replacement for your Camry’s make and model. And while you’re here, our discussions on how much is a car battery, as well as how much does a car battery weigh might make your considerations a bit easier.

2. Replacing The Alternator

A longer-lasting repair for a charging system issue than simply charging the battery is replacing the alternator. A new alternator will guarantee that your battery receives the correct charge and will also help your battery last longer.

Depending on the type and model of your car, the price of a new alternator can vary, but it usually ranges from $250 to $700. You must also account for the cost of labor, which typically ranges from $150 to $300 to replace an alternator. Your new alternator could cost anywhere from $400 to $1,000 in total.

To be absolutely thorough, make sure that it’s not simply a blown alternator fuse. Otherwise, you’ll really have to consider an alternator repair (in addition to learning how to fix an alternator), or a full alternator replacement (and learn how to change alternator and how to replace alternator).

3. Replacing The Drive Belt

If the drive belt on your Toyota has slipped or broken, you will need to replace it. This will fix the charging system issue. The alternator is turned by the drive belt, which in turn charges the battery. The price to replace a drive belt varies depending on the type and model of your Camry.

A drive belt replacement will cost between $50 and $200. One of the most important issues at stake is this: How can you determine what is causing your Toyota Camry check charging system to malfunction? The only solution is to independently verify it!

Check Charging System

In any case, don’t feel pressed to do it! Keep in mind that there won’t be any problems as long as you neatly follow the guidelines below. There will undoubtedly be a garage nearby that is prepared to give you the best help if you don’t want to get your hands dirty.

  1. Start by turning the engine off.
  2. Engage the parking brake and switch the car to neutral. The tire should be wedged under to prevent it from rolling.
  3. Remember to give the engine some time to cool down. Because a cool engine will be easier to operate than a hot one.
  4. Be careful to pay attention to the voltage gauge on the dashboard. The gauge should indicate 12 volts (if you’re unsure, our guide on how many amps is a 12-volt battery has more insight) while the car is off and at least 14 volts when it is turned on. If the voltage is not between 12 and 14, the alternator is broken (for more context, do refer to our resources on how to check if the alternator is bad).
  5. Now open the hood of the car. Search the surroundings of the engine for any signs of damage. Remember to check any visible fuses as well. Additionally, there is a good chance that a blown fuse will have an immediate influence on your Camry’s charging system.
  6. Verify whether the connectors for the alternator are loose. If so, properly tighten them to finish the task.
  7. Check the engine for any signs of coolant or fluid leaks.
  8. Restart the car by turning it off and on after you’ve checked every component to make the Toyota charging system function properly.

Check Charging System Toyota Camry: Prevention

Regularly checking the battery and verifying the charging mechanism can stop future problems from abruptly degrading the vehicle’s performance. Additionally, it will keep your charging system operating properly.

You or a certified Toyota mechanic must inspect the alternator, voltage regulator, and battery before you can properly test a charging system (check out our guide on how to test a car battery to learn more). Keep an eye out for any surface problems like nicks and dings, fluid or acid damage, or any other indications of wear and tear.

Reset Check Charging System Toyota Camry

Your charging system light may need to be reset so that you can make sure it’s not turned on wrongly. There are numerous ways to accomplish this. If you decide to check your Camry’s electrical and charging system, it is crucial to be safe. Wear goggles to shield your eyes from acid splashback and rubber gloves to prevent shock.

Most techniques only require PPE and a minimum of equipment. But this one calls for an OBD2 scanner. It is a diagnostic tool that checks the electrical systems of your car. Follow the steps given below to make sure you get rid of the reset check charging system in your Toyota Camry.

  1. Start off by connecting your OBD2 with its 16-pin plug to the port that is typically found beneath the steering column and wait for the scanner to initialize before starting the engine.
  2. You will need to enter the pertinent information once the scanner is prepared. Included in this are the VIN and the type, model, and make of the vehicle’s engine.
  3. Then start the diagnostic system scan on your car. To start the scan on some scanners, you simply press a single button, whereas on others you must first read the handbook.
  4. A trouble code or a number of them will be displayed after the OBD2 device has finished scanning. If you have Bluetooth enabled, you can record them and upload them to your computer using that technology or via a USB.
  5. Use these numbers to look up in the manual exactly what is wrong with your car. Although the manual only lists basic codes, you can find additional, advanced ones online with very little research.

Check Charging System Toyota Camry: Conclusion

You should now have a better understanding of the potential causes and solutions for charging system issues in your Toyota Camry. Keeping your Camry’s battery charged and ensuring that all of its electrical systems, operate effectively depend on a functioning charging system.

A malfunctioning charging system can cause a number of issues, such as a dead battery, insufficient electricity, dimmer lighting, and inoperable electrical equipment.

Avoiding short journeys, maintaining a clean battery, and driving gently are a few things you can do to assist prevent charging system failure in your Toyota. It is usually preferable to get the charging system checked out by a trained expert if you do experience issues with it.

They would be able to fix or replace the alternator, drive belt, or battery, depending on the issue.

FAQs On Check Charging System Toyota Camry

Why Is My Battery Light On

Your battery light, often known as the dashboard battery indicator, is intended to alert you to any problems with the battery or charging system in your car. It can mean that your battery is worn out or damaged, or that the charging system isn’t working properly.

What Does The Battery Light Mean

When you turn on your car for the first time, this light should appear. A short while later, the light will go out. But if the light remains on while you’re driving, be alert. Other symptoms of a low battery charge include power windows that are difficult to open or a stereo that won’t switch on.

How Long Can You Drive With Battery Light On

The age and quality of your battery, as well as the kind of vehicle you drive, all affect how long your car can operate with the battery light on. Typically, the car won’t stall for 30 to 60 minutes after the battery light comes on. So you have a safe window of time to get your car home or to a repair shop.

What Does Service Battery Charging System Mean

The alternator, battery, wiring, and electronic control unit (ECU) make up your service battery charging system. When your engine is operating, this system generates the energy required to run your lights, radio, and other crucial electrical components. It also keeps your battery charged.

What Does Check Charging System Mean

The check charging system light means that the car is only powered by its batteries. The battery won’t be able to recharge and will eventually run out. This will leave you with a dead battery if the issue persists and your charging mechanism fails.

Can Low Battery Cause ABS Light To Come On

Yes, it is possible. It is advised to examine the battery first if the ABS light on the instrument panel activates. The ABS light can illuminate as a result of a poor battery. The ABS light could also come on if your brake light is broken or burned out.

What Is A Charging System In A Car

A charging system produced electrical energy to keep the battery charged, and powers your car while it is operating. Three components make up your car’s charging system: the battery, the alternator, and the voltage regulator. The battery provides the required electrical power for your engine to start.

How To Check If Alternator Is Charging

Start the engine and unhook the battery terminal to test the alternator. The engine ought to keep running without stalling. The alternator is not working properly if it does stall or shuts down.
