Flooded RX8 – How To Start A Flooded Mazda RX8?

The Mazda RX8 is a great performance car for a relatively low cost. Rather than your conventional engine, the RX8 has a rotary engine and as you may know, rotary engines can suffer from flooding relatively easily. Once you have a  flooded RX8, it can seem impossible to start, but in the article below I will show you how to start a flooded RX8 Mazda without the huge mechanic bill. Learn everything you need to know about the Mazda RX8 engine in our guide.

RX8 engines are known to have lots of problems some won’t start, some have hot start issues and some have misfired. But most owners will come across the not starting problems.

On this occasion, the flooded RX8 engine was caused by moving the car from one location on the drive to another, without letting it warm up enough.

Some Proof That It Works

Here you can see our flooded RX8 starting using this method.

Flooded Engine Fix

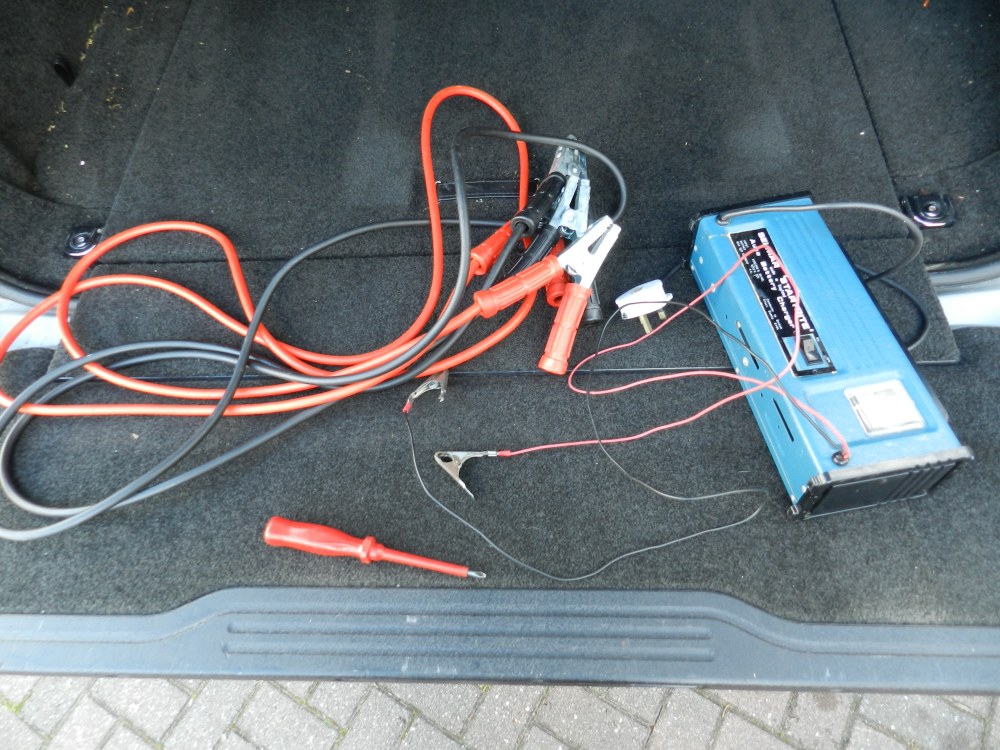

What you need:

how to start a flooded Mazda rx8 - You need

Quickly De-Flooding Your RX8

First, we are going to disconnect the power from the fuel pump and then crank the engine over to clear out some of the additional fuel that is in the engine, then we will reconnect the fuel pump and jump-start the car to get it started.

Unless you are very lucky, it is unlikely to start on the first try, and could take 10-15 iterations of this process to get it started. Make sure you leave around 30 seconds between cranking the engine over to allow the starter motor to cool down (for more context, check out our explainer on how long does it take for a car to cool down).

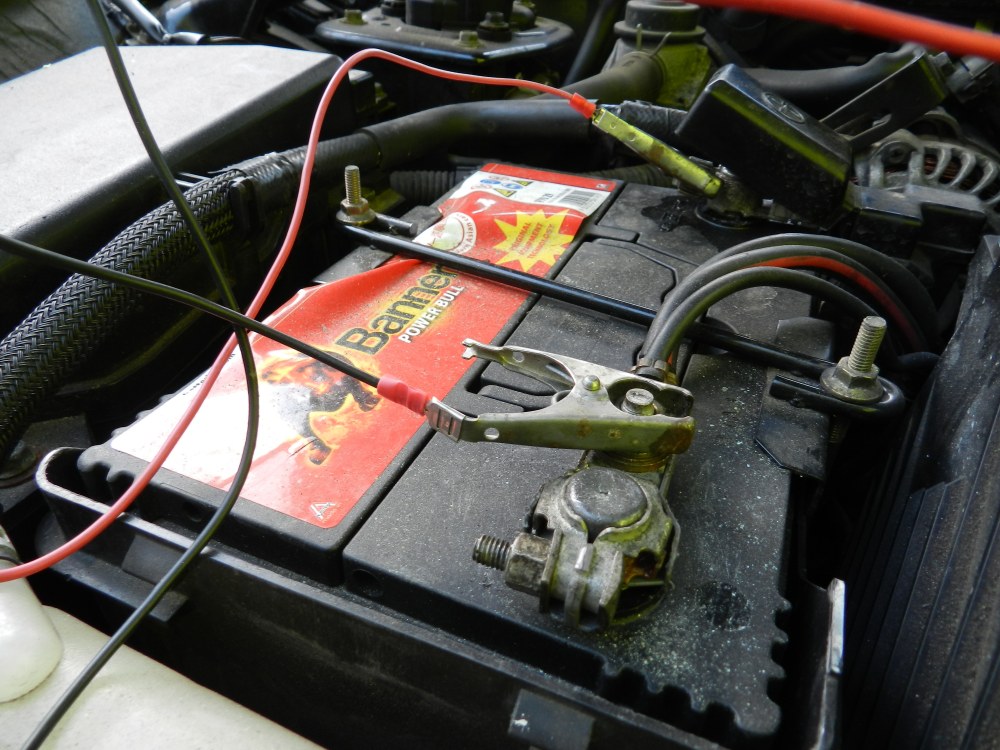

How To Start A Flooded Mazda RX8, Step 1 – Charge Up

Put the car on charge beforehand to ensure it has maximum power to crank the engine over.

Starting a flooded mazda RX8 (2)_1000x750

How To Start A Flooded Mazda RX8, Step 2 – Remove Rear Seat

Remove the rear passenger seat by pulling the base of the seat upwards to reveal the fuel pump cover.

Starting a flooded mazda RX8 (3)_1000x750

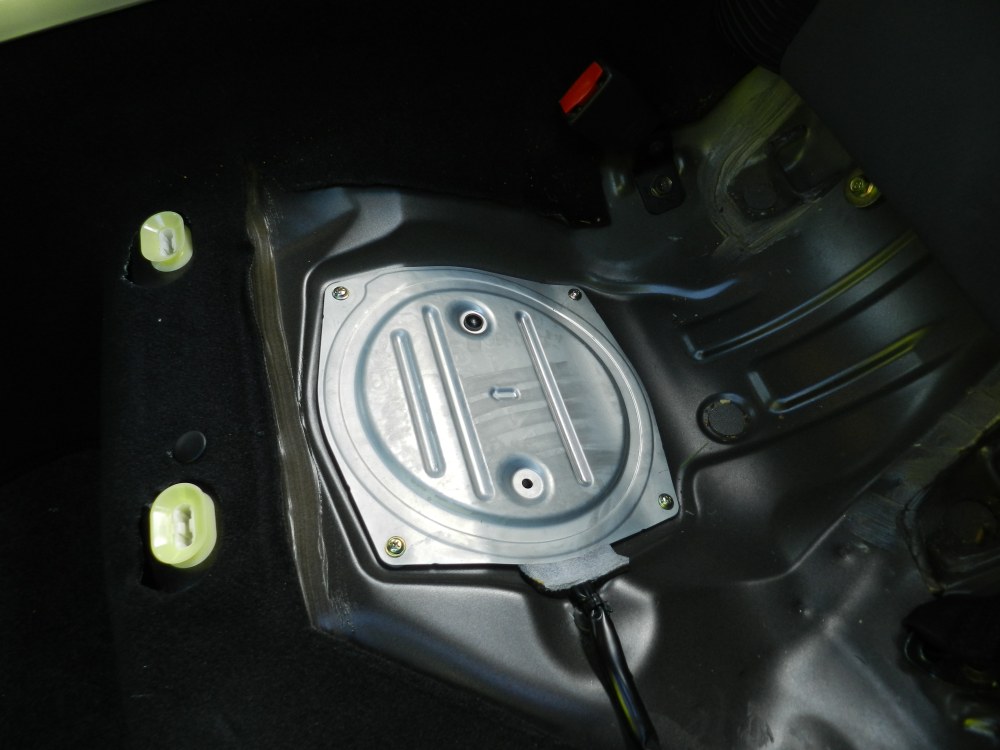

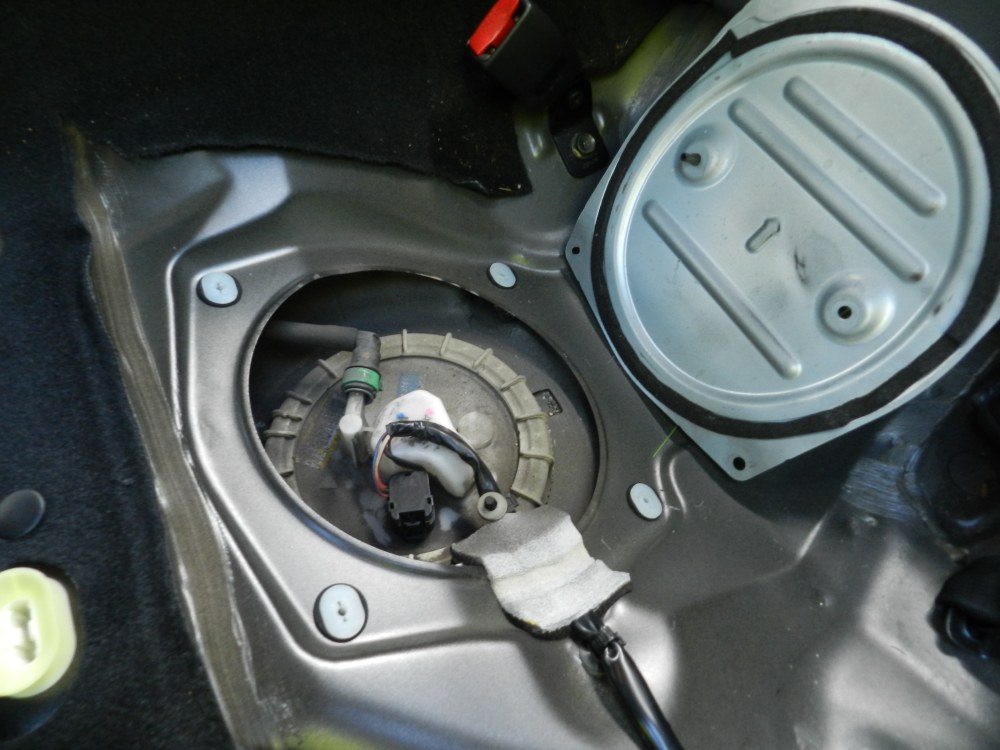

How To Start A Flooded Mazda RX8, Step 3 – Remove Cover

Use a Phillips screwdriver to undo the 4 screws on the cover and lift off the cover.

Starting a flooded mazda RX8 (4)_1000x750

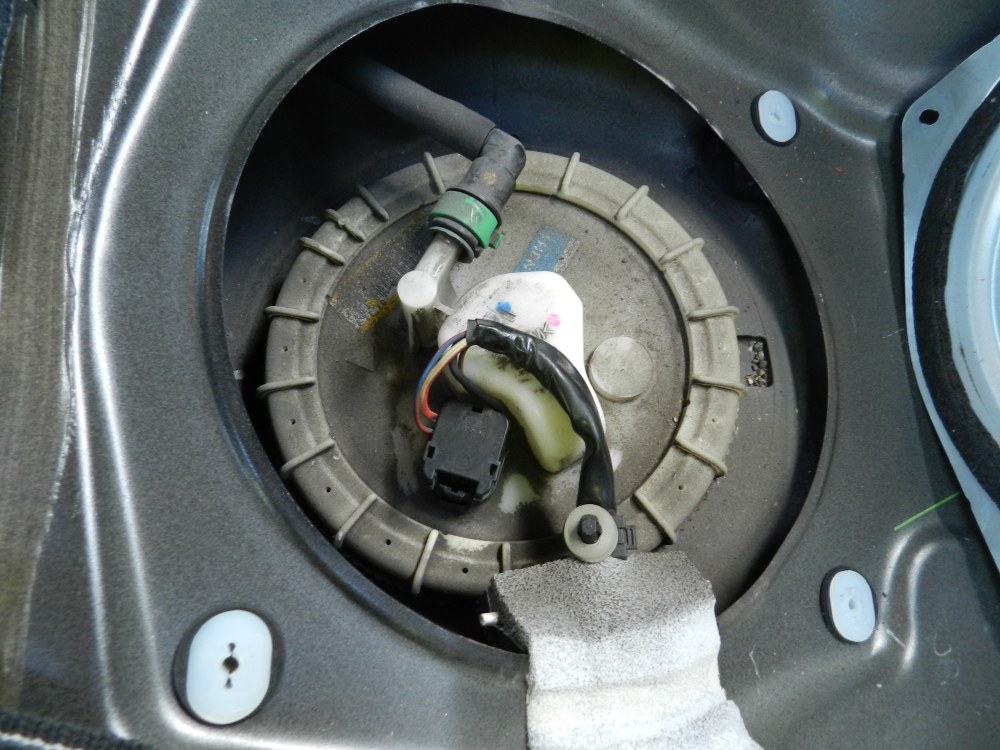

How To Start A Flooded Mazda RX8, Step 4 – Look At The Fuel Pump

Here you see the fuel pump and the connector that we will be disconnecting.

how to start a flooded Mazda rx8 - fuel pump

How To Start A Flooded Mazda RX8, Step 5 – Set Up Lump Leads

Set the car up for a jump start. I used heavy-duty jump leads as you may be cranking the car over for around 15 minutes on and off, use another powerful car for the jump start, and make sure the other car is running at the time of jumping.

how to start a flooded Mazda rx8 - jump it Flooded RX8 - rx8 flooded engine

If you don’t have another car you, might be able to get away with a mobile power bank. I have successfully done this a few times.

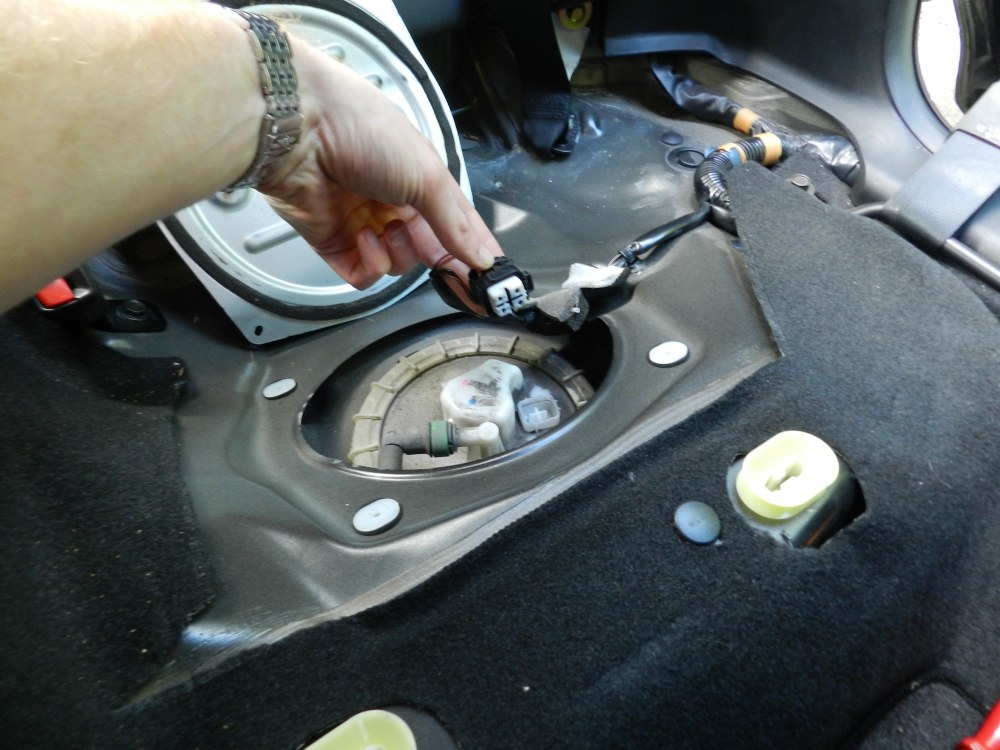

How To Start A Flooded Mazda RX8, Step 6 – Disconnect And Crank

Back in the driver’s seat, ensure the car is out of gear, and remove the fuel pump connector from the fuel pump. Once removed crank the car over with the clutch depressed for 30 seconds to clear out the excess fuel from the engine.

how to start a flooded Mazda rx8 - reconnect after a few minutes - Flooded RX8

How To Start A Flooded Mazda RX8, Step 7 – Keep Cranking And Connect The Pump

Whilst still cranking the engine, plug the fuel pump back in, apply 1/3 throttle, and continue to crank the engine with the clutch depressed for 30 seconds. Repeat steps 6 and 7 until the car starts to fire up.

When the car begins to catch, don’t let go of the key until you’re sure it will stay running. It can take many attempts to get it started. See the video below for an idea of how the process looks.

How To Start A Flooded Mazda RX8, Step 8 – Take The Car For A Run

Once running take the car on a good 20-minute run ensuring all fuel is burned off out of the exhaust properly. Fixed.

Top Trick – Get a Boost Pack

I found that I was getting a bit nervous about stalling the RX-8 whilst out and about. Without a jump car, it was impossible to get the car started again. But with a mobile jump pack, I have been able to get the car going again. It might not work in all instances, but you can crank the car over around 20-30 times with these packs for are a great help.

Mazda RX8 Motor Swap

If your RX8 engine is truly broken then you might want to consider an engine swap, we have a full guide looking at everything from V8s, 1JZ, 2JZ, or even 13B-REW engines.

If you are specifically interested in swapping to an LS engine, we have a detailed guide as well. Take a look and plan your new engine. After that pick the best RX8 body kit for your fully running car.

Facts: Reasons a Mazda RX-8 Won’t Start

  • The most common reasons why a Mazda RX-8 won’t start are a dead battery (to find out more, check out our guide on how to charge a completely dead car battery), an alternator problem, or a failed starter.
  • 38% of the time, the issue is related to a dead battery, while 27% of the time, it’s an alternator problem and 20% of the time, it’s a failed starter.
  • If the battery is dead, it may result in dim lighting in the interior of the car, and replacing it can cost between $343 and $354.
  • A failing fuel pump can cause a loss of pressure in the fuel system, which can prevent the car from starting. Replacing the fuel pump can cost between $892 and $1,030.
  • When the ignition switch or lock cylinder fails, the car may permanently or intermittently lose power to certain systems and components, and replacing them can cost between $183 and $279.
  • If the starter motor fails, the engine may not rotate when the key is turned, and replacing it can cost between $426 and $580.
  • When the camshaft or crankshaft position sensors fail, the engine may stall or fail to start, and replacing them can cost between $175 and $239.
  • Correcting most no-start problems usually involves replacing the alternator, starter, or battery, cleaning connections, or repairing the ignition or fuel systems.
  • To avoid replacing unneeded parts, it is recommended to have a professional perform a diagnostic test to identify the root cause of the problem.
  • Diagnosing modern automotive systems without proper knowledge and training can be difficult, and most vehicles have a communication network that allows all systems to communicate, making it challenging for DIYers to save money on repairs.

Mazda RX8 Won’t Start

The Mazda RX-8 is a popular sports car known for its unique rotary engine. However, like any other vehicle, it can sometimes have trouble starting. While flooding of the rotary engine is a common issue, there are other potential causes for starting problems as well. In this section, we will discuss various reasons why a Mazda RX-8 might not start and what you should look out for.

Flooded RX8, Engine Won’t Start, Other Reasons #1: Dead Battery

The most common reason for any car not starting, including the Mazda RX-8, is a dead battery. If the battery is drained or damaged, it won’t be able to supply the necessary power to start the engine. Check the battery terminals for corrosion and make sure the connections are tight. If the battery is old or has been drained multiple times, it may need to be replaced.

Flooded RX8, Engine Won’t Start, Other Reasons #2: Faulty Alternator

The alternator charges the battery while the car is running. If the alternator is faulty, it won’t charge the battery, and eventually, the battery will drain, and the car won’t start. If the battery seems to die quickly after being charged, the alternator might be the issue.

Flooded RX8, Engine Won’t Start, Other Reasons #3: Faulty Spark Plugs

Spark plugs ignite the air-fuel mixture in the engine. If they are damaged or worn out, they won’t create a strong enough spark to ignite the mixture, and the engine won’t start. Check the spark plugs for wear and replace them if necessary.

Flooded RX8, Engine Won’t Start, Other Reasons #4: Bad Ignition Coil

The ignition coil transforms the battery’s low voltage to the high voltage needed to create an electric spark in the spark plugs. If the ignition coil is faulty, it won’t supply the necessary voltage, and the car won’t start.

Flooded RX8, Engine Won’t Start, Other Reasons #5: Clogged Fuel Filter

The fuel filter removes impurities from the fuel before it reaches the engine. Over time, the fuel filter can become clogged, restricting the flow of fuel to the engine. If the engine is not receiving enough fuel, it won’t start.

Flooded RX8, Engine Won’t Start, Other Reasons #6: Faulty Fuel Pump

The fuel pump supplies fuel from the tank to the engine. If the fuel pump is faulty, it won’t supply enough fuel to the engine, and the car won’t start. Listen for a humming noise from the fuel tank when you turn the key to the “on” position. If you don’t hear any noise, the fuel pump might be the issue.

Flooded RX8, Engine Won’t Start, Other Reasons #7: Starter Motor

The starter motor turns the engine over to start it. If the starter motor is faulty, it won’t be able to turn the engine over, and the car won’t start. Listen for a clicking noise when you turn the key. If you hear a clicking noise but the engine doesn’t turn over, the starter motor might be the issue.

While flooding of the rotary engine is a common issue with the Mazda RX-8, there are various other potential causes for starting problems. Battery issues, ignition system failures, fuel system problems, and a faulty starter motor are all common reasons why a Mazda RX-8 might not start. If you are experiencing starting problems with your Mazda RX-8, it is essential to check all of these systems to diagnose and fix the issue correctly.

Frequently Asked Questions

If you’re still curious to learn more about how to start a flooded Mazda RX8, our FAQs here might help…

How To Remove Spark Plugs Mazda RX8

The easiest way to remove the spark plugs in a Mazda RX8 is by removing the wheel. This is because due to the placement of its rotary engine, the spark plugs are mounted on the side of the motor. Therefore, getting to it from the top, as you’d usually do on most cars, can be a bit tough. So, start by removing the driver’s side wheel (if you have the LHD RX8 models or the front passenger’s side wheel for RHD cars). At the back of the wheel arch, there should be a flexible flap. Just remove this flap, and you’ll have access to removing the spark plugs. You can use a 13/16-inch socket to remove the spark plugs, as the RX8’s unique engine has two different types of plugs to remove – four in total.

How To Unflood An Engine

A flooded engine is what happens when there’s excess fuel in an engine after you’ve turned it off. Thus, wetting the spark plugs excessively. To fix this, start by cranking the engine with the accelerator pedal pushed all the way to the floor. From here, continue cranking the engine for another 10 seconds or so. Only stop once you hear that the engine is trying to start up. When the engine’s properly started and running, let it rev up for a couple of seconds. Then, keep on revving it and hold the RPMs until it’s a bit higher than its idle engine speeds for a few more seconds. After the engine is all warmed up, that should clear up the flooding in the engine, so keep on driving normally.

How To Start A Flooded Engine

One technique that you can use to start a flooded engine is by opening the hood. After all, the end goal that you want to achieve is to reset the air-to-fuel ratio. And, to try and clear out any excess fuel that’s left inside the engine. By leaving the hood open for a little while, that might give the excess fuel a chance to evaporate. Now, see if you can start the car again by cranking the ignition – but, while keeping your foot away from the accelerator pedal. If that doesn’t work, try pressing and holding the gas pedal on the floor while you try to start it. Once your car starts, let go of the gas pedal and let your car run for a few minutes to warm up and reset balance out the excess fuel.

Is Mazda RX8 A Good Car

If you’re looking for a fun and sporty (yet practical) car, the RX8 is well worth considering. It has all the dynamic chops and fun-inducing personality that you’d want in any sports car. Yet, it has four seats and ample space to fit your whole family. In all, the RX8 is certainly among the best driver’s cars out there. And, they’re quite cheap on the used market, as well. Although, there are some caveats with owning an RX8. Its fuel economy is pretty bad in comparison to most of its peers. In addition, the RX8 could be very unreliable at times… But, not if you’re diligent about maintenance. Service it well, and the RX8 is decently reliable, though it requires a lot of attention.

Does The RX8 Have A Rotary Engine

Yes, the Mazda RX8 does have a rotary engine. It was also the last Mazda to date to be featured with a rotary engine. Specifically, the RX8 came with a 1.3-liter RENESIS two-rotor Wankel rotary engine. Throughout its production lifespan, there are numerous minute iterations of this engine. Thus, it ranges in output from 189hp to 238hp in its top-most and sportiest variant. This is an engine that could easily rev up to 9,000 RPM! Yet, some owners felt underwhelmed with the torque that the RENESIS engine produced. When you’re cruising at lower speeds, the torque is a bit of a let-down, according to some. Hence, it’s the reason why aftermarket turbo kits for the RX8 are so popular.

What Engine Does the RX8 Have

The Mazda RX-8 is powered by a unique type of engine called a rotary engine. Specifically, it uses a 1.3 liter, two-rotor Wankel rotary engine. This type of engine is different from conventional piston engines, as it uses rotors instead of pistons for the conversion of pressure into rotating motion.

Do Rotary Engines Have Spark Plugs

Yes, rotary engines do have spark plugs. In a rotary engine, the spark plugs are necessary to ignite the air-fuel mixture in the combustion chamber. The Mazda RX-8, for example, has two spark plugs per rotor, a leading, and a trailing spark plug, to ensure complete combustion of the air-fuel mixture.

How to Make a Car Crank But Not Start

To make a car crank but not start, you can disconnect the fuel pump relay or the fuel pump fuse. This will stop the fuel supply to the engine while still allowing the starter motor to crank the engine. Remember, this is just for diagnostic purposes and should not be done regularly.

How Long Do RX8 Engines Last

The lifespan of an RX-8 engine can vary significantly based on how well the car is maintained. However, many RX-8 owners have reported needing a rebuild or replacement of the engine around 100,000 miles. Proper maintenance, like regular oil changes and not over-revving the engine, can help extend its life.

Why Won’t My Mazda Start

There could be several reasons why your Mazda won’t start. It could be due to a dead battery, a faulty starter motor, a problem with the ignition switch, or a fuel supply issue. If you have an RX-8, flooding of the engine is also a common issue, where too much fuel enters the combustion chamber, making it difficult for the spark plugs to ignite the mixture.

When Did the RX8 Come Out

The Mazda RX-8 was first introduced in 2003 and was produced until 2012. It was the successor to the RX-7 and was widely recognized for its unique design, featuring a four-door, quad-coupe layout, and its rotary engine.

Do Mazdas Have Catalytic Converters

Yes, Mazda vehicles, including the RX-8, come equipped with catalytic converters. The catalytic converter is an essential component of the exhaust system that helps reduce harmful emissions by converting them into less harmful gases before they are expelled from the exhaust.

How Much Does It Cost to Fix a Flooded Engine

The cost to fix a flooded engine can vary based on the extent of the damage and the labor rates in your area. If the engine is just flooded with fuel, it may only require removing the spark plugs and cranking the engine to expel the excess fuel. This can cost around $100 to $200. However, if there is water in the engine, the cost can be significantly higher, ranging from $500 to $3000, depending on the level of damage and the necessary repairs.
