Known and loved for its reliability and extended lifespan, the Chevy 5.3-liter V8 has developed a good reputation in the industry. But every engine comes with its own set of problems and the Chevy 5.3 is no different. Chevy 5.3 engine problems are something owners complain constantly about.
Over the years, V8 engines have continued to impress thousands of customers with their smoothness and operation. They’re reasonable when it comes to fuel economy and still hold enough power to take you on an adventure anywhere.
In fact, the average 5.3 Chevy can go over the 200,000 miles mark. Considering all the amazing things about this engine, it was rather disappointing for the entire community when the engine of this particular model started to act up.
For more than two decades now, the 5.3L displacement has been the same. It was first brought to the market in 1999. While originally it was introduced as a truck variant of the Chevrolet Corvette’s LS engine, the 5.3 has gone through three major generational changes in between.
Many of the parts from the 5.3 and LS engines are still based on one platform; the first 5.3 V8 featured a cast-iron engine block instead of an aluminum one.
Before we get into the problems, we will take a look at the glorious, oftentimes sad history of the Chevy 5.3 engine problems.
- Biggest Issue
- Gen-3 Vortec 5300
- Gen-4 Vortec 5300
- Gen-5 Ecotec3 5.3
- Problems and Fixes
Many drivers have complained about the excessive oil consumption for the model years 2009 to 2011. Apparently, some of them lost about 2 to 4 quarts of oil in on every single oil change.
The common link between these claims was that there seemed to be no signs of a leak, and no smoke was detected in the exhaust either. Most people said to have done regular maintenance and a few would only use the best quality full-synthetic oil.
After reporting to their local dealers, some drivers got replies like burning a quart per 1,000 miles was the standard. Other dealers claimed the same, at about 2,000 miles.
Owners of Silverados couldn’t come to terms with those statements. One more interesting fact is that a section of these drivers was noticing problems at 60,000 miles.
The excessive oil consumption was caused by a defect lying in the Chevy 5.3 V8 engine. In 2007, GMC came up with a feature for its vehicles, the active fuel management system otherwise known as AFM. According to the company’s plans, the update should have given the motors more horsepower, better fuel economy, and increased torque.
But, it seemed like the AFM resulted in the oil getting past the pistons, and slowly entering the combustion chambers. It would either get burned or gather in the cylinders. The cylinders or pistons would get damaged if this was not handled timely.
Initially, the Chevy 5.3 V8 came in the 3rd generation of the small-block V8 engine from the same company. For marketing purposes, it earned the name Vortec 5300. You can find this engine in the Chevy Avalanche and Silverado.
Moreover, this engine is equipped with motors like Chevy Tahoe and Suburban, GMC Yukon, and Cadillac Escalade. It also found a place under the hoods of cars like the GMC Savana and Chevy Express. This engine ran until 2007.
Chevrolet introduced the 4th generation small-block V8 in 2005. The old name was kept but there was a significant increase in power. This update also saw the usage of cylinder deactivation technology or Active Fuel Management.
The engine would detect terrains that would not require as much power and shut off 4 cylinders to save fuel. This allowed the 4th gen 5.3 equipped trucks to do more than 20 mpg highway.
Lastly, the fifth generation of the small-block engines brought a name change. The 5.3 was now called the Ecotec3 5.3. This engine can be found in SUVs and GM trucks from the model year 2013 and forward. Powered with both cylinder deactivation and variable valve timing, these engines became revolutionary in the franchise.
In addition, Ecotec3 engines are compatible with flex-fuel, which means you can operate them on E85 without changes. A hybrid version of this model is available as well where the city fuel economy falls in the 20 MPG range.
5.3 Vortec Gen 3
Although the 3rd gen Vortec 5300 isn’t the most complex in terms of technology, there are still a few issues you should be aware of. If you’re shopping for a GMC truck, Chevy, or SUV from the years 1999 to 2007, those vehicles are likely powered by such an engine. The easiest way to differentiate between a gen-three and gen-four Vortec 5300 is to check if it comes with Active Fuel Management.
Needless to say, anything without Active Fuel Management, is a member of the gen-three family. Gen-three Vortec 5300 has its own (numerous) issues, like the prominent problem owners faced with the cracked cylinder head. Thanks to the gash, coolant would drip out.
While this problem wasn’t widespread enough to warrant a recall, a technical service bulletin was issued by GM speaking on the issue. The company claimed that the issue originates from a production flaw when the cylinder heads were made by Castech, an outsourced company.
Fortunately, not all Castech heads showed this problem, and neither did all Vortec 5300 engines have these heads. You can check if your vehicle has this issue by noticing coolant loss (if any) over time. If not, the motor should be fine. Keep in mind that vehicles with Castech heads could show this problem at any time.
Before you buy any car, we suggest you get a pre-purchase inspection mechanic to take the valve covers off and check for the Castech marking on the cylinder heads.
Another problem with the 3rd gen Vortec 5300 engines would be the failure of intake manifold gaskets and intake manifolds. No official recall was warranted here either. However, with wear and tear, gaskets degrade in quality, and many 5.3 engines (higher mileage ones) face this problem. Additionally, the plastic-made intake manifolds could be prone to cracking.
Symptoms of failed gaskets or faulty manifolds may include noticeable power loss or rough idling when driving. In some cases, the problem is so severe that it prompts the check engine light to illuminate. This, again, could be identified in a pre-purchase inspection.
Fuel pressure regulators also seemed to be a common experience for drivers. This would cause the vehicle to be hard to start or start at all. Plus, it can cause stuttering and rough idling, prematurely failed spark plugs and poor acceleration. The fuel pressure regulator, however, is easy to access and cheap to change. It should be a simple job for a professional mechanic.
As with any vehicle of this age, there are some other engine-related issues and failures that may be coming your way. For instance, failing gaskets, broken spark plugs, or even engine sludge buildup if the car hasn’t been maintained well.
Keep in mind that no engine will last if the owner is neglectful and doesn’t service it often. It’s important to know an automobile’s repair and service history before buying.
5.3 Vortec Gen 4
Technological advancement brought new challenges for the Chevy 5.3 engine problems. While the AFM system was a huge leap forward in the V8 engines’ efficiency, it also proved to be one of the downfalls.
Chevy 5.3 Engine Problems (Gen 4) #1: Excessive Oil Consumption
Models made from the years 2010 to 2014 were reported to show excessive oil consumption, significantly higher than regular oil consumption levels. After searching for the cause for a while, it was concluded that the Active Fuel Management system was behind it.
And for a problem that sounds super annoying and complicated, the solution is rather simple, disabling the AFM system.
In addition to the oil consumption concerns, the 4th gen Vortec 5300 was plagued by a defective oil monitoring system. This system lets drivers know when the oil level is low and needs a refill.
Some owners reported a defective monitoring system in their vehicles, which resulted in horrible engine damage. The engine was running for prolonged periods without adequate oil, causing the issue.
With a defective oil monitoring system, it’s hard to tell if your car is consuming too much oil; not to mention it leads to a need for a whole new engine. The issue was so prevalent in the early 2010s that it ended up earning GM a class action lawsuit. Additionally, the models of the Vortec 5300 produced after 2013 were retired. GM came up with a new model then – generation-five Ecotec3 5.3.
Chevy 5.3 Engine Problems (Gen 4) #2: Cracked Cylinder Head
A cracked cylinder head could easily be one of the major engine problems, and it can result in a pricey repair. Fortunately, this problem isn’t as rampant. The community still discusses it a fair amount, so it was worth mentioning it.
Many Gen III and Gen IV engines like the LM7, L33, LH6, L59, and LR4 had cylinder heads made by Castech. As mentioned before, Castech was found to produce gasket heads with defects, leading to a crack in the head. The crack would then let the coolant be released. Coolant loss in that case was termed a “phantom” loss since there were no visible signs of leakage anywhere.
Some of its symptoms include:
- Engine with Castech cylinder head
- Gradual loss of coolant
- No visible signs of leakage
Since not all Castech heads have or develop this trouble over time, it’s not something to be very much worried about. GM did post a bulletin on it, though. In case you get lucky and end up having a car with a cracked cylinder head, we have bad news. Replacement is an expensive job.
You might choose to drive the car with this failure but know that, driving with a cracked head will probably cause the crack to get more severe. Thus, it will also lose more coolant. Once a car starts losing too much coolant, the engine can overheat and lead to bent internals. The only solution is to replace the entire cylinder head.

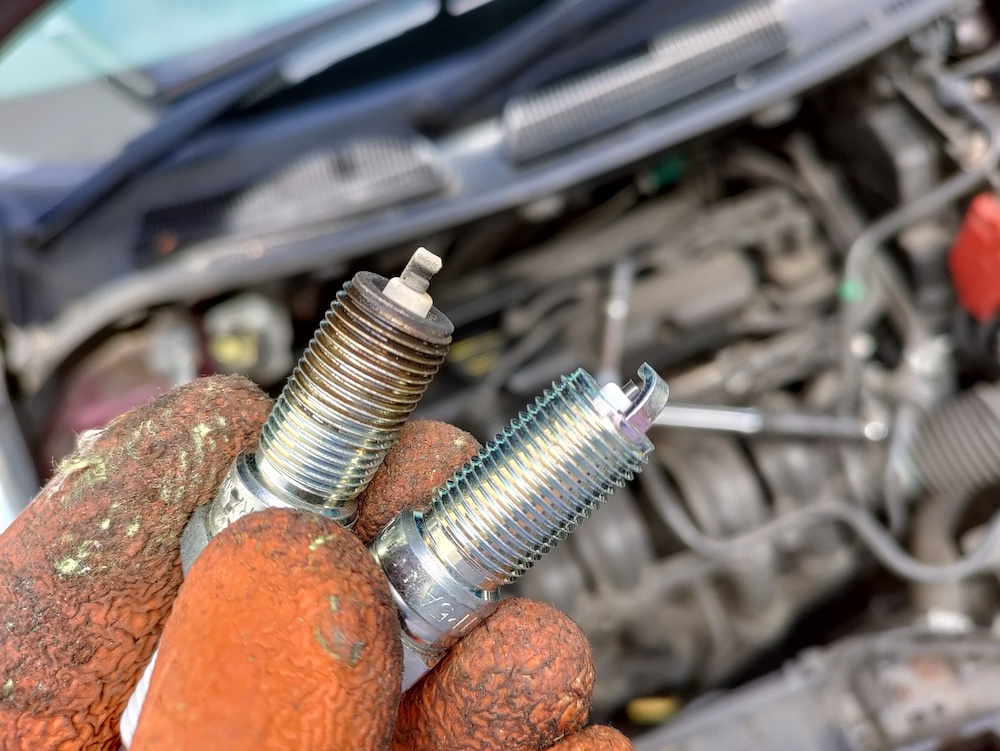

Chevy 5.3 Engine Problems (Gen 4) #3: Spark Plug Failure
Vortec 5300s featuring LH6 and LC9 engines are prone to failing spark plugs due to carbon build-up. Why this happens is a more complex answer. A combination of the PCV valve, AFM, and the valve cover design is the reason.
Vehicles suffering from this issue are likely the victim of one or two system malfunctions – the AFM pressure relief valve or the PCV system. Ultimately, too much oil spray is released from either side which results in excessive carbon buildup on the ring grooves of the piston. Thanks to this, oil consumption increases drastically while #1 and #7 spark plugs fail prematurely.
Some of these symptoms include:
- Engine stuttering, rough idling, more
- Cylinder misfires
- Excessive oil consumption
- Faulty spark plugs
Chevy 5.3 Engine Problems (Gen 4) #4: Intake Manifold and Gasket Failure
The job of an intake manifold is to distribute air into the cylinders of the engine. An air-tight seal is provided by the gasket, stopping any air from leaving the cylinder. The intake manifold features a plastic construction on the 5.3L Vortec 5300. Unfortunately, unlike the rest of the car, the gasket was not designed properly, causing another one of the main Chevy 5.3 engine problems.
As it’s made of plastic, the manifold is prone to cracking either from natural wear and tear or from being over-torqued. As a result, an air leak is formed which reduces intake pressure and cuts off the supply of oxygen to the engine. Furthermore, the intake manifold has a stock gasket which is also poorly designed. It deteriorates too fast and causes air leaks.
When there is an air leak, be it from the gasket or manifold, the car will be short on oxygen and that can cause poor performance. Among the symptoms include:
- Power loss
- Rough idling and stuttering
- Engine codes designated for lean bank codes
Chevy 5.3 Engine Problems (Gen 4) #5: Fuel Pressure Regulator Failure
Third-gen Vortec 5300 manufactured from 1999 to 2006 commonly showed fuel pressure regulator failure. This part of the vehicle is responsible for the control of fuel sprayed on it by the injectors. It ultimately impacts the air-to-fuel ratio. Again, that contributes heavily to engine performance.
With a faulty fuel pressure regulator, a truck can either get too little or too much fuel. In both instances, this results in poor idling, misfires, engine shaking during acceleration, loss of power, and more.
Among the symptoms include:
- Not starting or hard starting
- Poor performance overall
- Misfires (engine codes P0300)
- Stuttering, rough idling
- Prematurely fouled spark plugs (which you can try solving by learning how to clean a spark plug and how to clean spark plugs)
A super common symptom of the Chevy 5.3 engine problems is hard starting, or just general difficulty starting the car. If this is the case, the regulator is more than likely not delivering adequate fuel to the injectors needed to start the engine. Silver lining: fixing the regulator is easy and cheap. If you have basic knowledge of cars and motors, you can also follow this DIY guide.
5.3L Ecotec3 V8 Engine
Fifth-gen brought a major change in the Vortec line aside from the internals. The namesake was finally changed from the model year 2014. Right now, the 5.3 engines go by the name Ecotec3 5.3-liter V8.
A key difference between the Vortec 5300 engines and this new one is the fuel injection system. Vortec 5300 replies on port injection near the intake manifold whereas the Ecotec3 5.3 engines are injected directly. This means the cylinder gets sprayed directly rather than the intake manifold as a subsidiary.
Most modern-day vehicles feature direct injection since it’s much more efficient and offers a more accurate way of fuel control – allowing better fuel economy. However, there is one inherent flaw in the direct injection system, and the Ecotec3 5.3 engines are no exception.
Direct-injected engines generally have carbon buildup on the inners of the intake manifold as well as the valves. This occurs due to the lack of spraying of high-pressure fuel to them, so they’re not being cleaned. You would notice that in a port injection engine. There are cleaners that can be sprayed into the intake to stop additional buildup, but they will not stop buildup entirely.
The intakes and valves on many direct-injected engines need to be cleaned regularly via walnut blasting, a process that blasts the parts with a mixture of finely ground walnut shells through a high-pressure air system. Not only are walnuts soft enough to not cause any harm to the engine components while cleaning, but they’re also biodegradable.
As a result of excess carbon buildup, the car can show signs of a misfire, decreased power, stuttering, and rough idling. The symptoms are going to become more noticeable over time because higher mileage engines report higher carbon buildup.
Failing fuel injectors isn’t the most common hurdle Ecotec3 5.3 owners face with this car, however, it’s still there. Due to the process of direct injection, the fuel injectors spray directly into the combustion chambers. In the process, the injectors are exposed to overbearing levels of pressure and heat. Eventually, they could fail. If this happens, the vehicle can get too much or too little fuel.
Describing further, the injectors fail to open or close. In both cases, the engine doesn’t operate correctly and gets the check engine lights to go on. Some extreme cases reported misfires too. That being said, injector failure isn’t a premature issue. This is something to keep in mind when searching for mileage vehicles equipped with Ecotec3.
As of now, these are the only concerns raised about the Ecotec3 engine. We know that it still uses the Active Fuel Management cylinder deactivation technology which is the root of way too many Chevy 5.3 engine problems. Nevertheless, GM has been working on them and it seems like they’ve managed to solve a great deal of the excessive oil consumption problems.
5.3-Liter Chevy Engine Problems
If you’re planning on getting an older, secondhand Chevy 5.3, it’s best to look for a well-maintained, low-mileage Gen III Vortec 5300 vehicle. Given how most of the oil consumption-related concerns started in 2007, the models prior to that year should be a safe bet.
In contrast, if you want a newer model, we suggest going with something made from 2014 and afterward to avoid the Chevy 5.3 engine problems. Anything equipped with Ecotec3 would do. Yes, you will have to pay a little to keep the intake clean since it operates on a direct injection system, but it’s worth it.
As with buying second-hand cars, we highly recommend doing your homework before making the purchase. That means researching the vehicle’s service history and VIN. Some mechanics offer an inspection pre-purchase. So, use that opportunity to know what you’re buying. It can prevent you from investing in a car that has obvious issues. You’ll save thousands of dollars in the long run.
Facts about Chevy’s 5.3-liter V8 engine, its history, and potential problems:
- The 5.3-liter Chevy V8 engine is reliable and long-lasting, and many owners report driving over 200,000 miles without major issues.
- The 5.3-liter engine has been in production for over 20 years and has undergone three generational changes.
- The initial 5.3-liter V8 had a cast-iron engine block, while the current generation features both variable valve timing and cylinder deactivation with direct injection.
- Generation-three Vortec 5300 engines, produced from 1999-2007, may experience coolant loss due to a cracked cylinder head or intake manifold gasket failure.
- Generation-four Vortec 5300 engines, produced from 2010-2014, have a history of excessive oil consumption due to a combination of Active Fuel Management and faulty PCV valves.
- Carbon buildup on the valves and inside the intake manifold can occur on Ecotec3 engines due to direct injection.
- Direct injection can also cause fuel injector failure, which can result in misfires and check engine lights.
- While the 5.3-liter engine is generally reliable, neglect and lack of maintenance can shorten its lifespan.
- When shopping for a used Chevy 5.3 vehicle, it is recommended to research the vehicle’s VIN and service history, and to ask for a pre-purchase inspection from a mechanic.
- Low mileage and well-maintained gen-three Vortec 5300 vehicles are a safe bet for those looking for an older 5.3-equipped Chevy, while models from 2014 and newer that are equipped with the Ecotec3 5.3 offer improved fuel efficiency and fewer problems related to excessive oil consumption or spark plug fouling PCV issues.
Chevy 5.3 Engine Problems: In Conclusion…
Overall, although the Chevy 5.3 engine problems are a bit worrying, the cars are still a hit. They get the job done, whether it be driving you to work every day or joining you on a road trip for the week.
Know what you want in a vehicle before hitting the markets and you’ve successfully won (or avoided) half the battle. A little bit of research and occasional nitpicking can land you in your dream car.
FAQs On Chevy 5.3 Engine Problems
If you’re still curious to learn more about Chevy 5.3 engine problems, our FAQs here might help…
What Year Is The Best Chevy 350 Engine
When contemplating an engine swap, among the most popular rivals to the Chevy 5.3 is Chevrolet’s own 350 SBC (small block). While the Chevy 350 is a much older engine, it’s well-known for its durability, performance, and smoothness, in addition to extensive tuning potential. Speaking of, there’s a huge aftermarket for the 350 as well, making it ripe for modifications. Among the best years and iterations of the Chevy 350 is the LT-1 from 1970, L98 from 1992, and L31 from 2002. Just like its predecessors, even the all-new Chevy 350 Service Engine is still as reliable, potent, and tuner-friendly as the older 350s.
How Much Horsepower Does A 5.3 Vortec Have
As per its stock configuration, the default Chevy 5.3 Vortec (Gen 4) came with around 310hp to 320hp from the factory. This is a respectable increase from the Chevy 5.3 Vortec (Gen 3), which only had around 270hp from the factory. Regardless, owing to the extensive tuning capabilities, not to mention its durability and robustness, you could extract a lot more horsepower with some tuning. Keep it naturally aspirated and with some simple bolt-ons, you could handily get around 500hp from it. About 600hp to 700hp is more than feasible with a supercharger or a single-turbo. Meanwhile, there are also loads of 1,000++hp 5.3 Vortecs out there.
How To Tell If A Vehicle Has Active Fuel Management
There are several ways to tell if your Chevy has Active Fuel Management included. For example, you can observe the dash’s MPG screen. Here, you’ll notice either a V4 or a V8 icon on the screen. When AFM is active, it’ll flash V4 (as half of the cylinders are shut off to save fuel). On the other hand, a V8 icon will appear when AFM isn’t running. You could also consider checking the engine’s valley cover. If the top of the cover is ribbed, then you have AFM. This is necessary, as the AFM needs it to tuck in the wires and solenoids. There are also other subtle changes on the engine block, camshafts, lifters, and more.
Did GM Stop Making The 5.3
As of 2022, Chevy has dropped the 5.3 from its lineup, including in the latest Silverado. Although, this is specifically for the 5.3 with AFM (active fuel management), as the 5.3 with DFM (dynamic fuel management) will, for now, continue to be a part of the lineup. Among the reasons why Chevy and GM decided to drop the 5.3 was rumored to be its past reliability. Although the 5.3 has been continually improved upon over the decades, lingering issues remain. For example, the 5.3 (with AFM) had numerous fuel pressure regulator problems, in addition to bad gaskets, cracked intake manifolds, coolant leaks, malfunctioning sensors, and more.
How Much Does It Cost To Rebuild A 5.3 Vortec Engine
If you’re thinking about rebuilding a Chevy 5.3 Vortec engine, it’ll cost you a pretty penny. Specifically, it’ll set you back somewhere around $3,000 to $4,000, depending on the condition of the engines and the work needed to rebuild them. Although, the aforementioned quotes only apply to extensive rebuilds. If all you need is to replace select and specific parts, like the gaskets and seals, it could cost you as little as $1,000. Should it require extensive re-conditioning, it might rise up to around $2,000 to $2,500. If a rebuild is too extensive, you might even consider getting a used 5.3 Vortec, which can be found for around $1,000 to $2,000.
